USB Cat5e Extender

Introduction

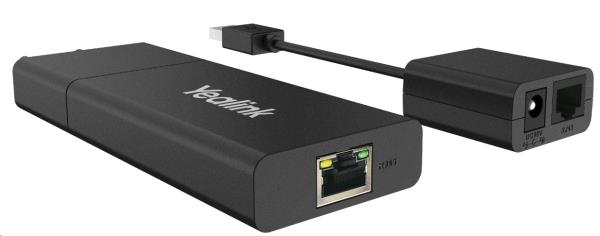

The Yealink USB2CAT5E-EXT USB Extender provides a simplified installation taking the advantage of CAT5e cable. With the flexibility of the USB Extender, users can place the USB peripheral nearly anywhere in meeting rooms. Also, the CATe5 cable length can be tailored according to particular demands. The powerful USB extender solution can boost a USB signal up to 40 meters.

Performance

Type

Network transmitter & receiver

Maximum transfer distance

40 m

Cable types supported

Cat5e

Ports & interfaces

RJ-45 ports quantity (transmitter)

1

RJ-45 ports quantity (receiver)

1

USB 2.0 ports quantity

2

DC-in jack

Yes

Design

Product colour

Black

Power

AC input voltage

100 - 240 V

External power adapter

Yes

Output voltage

48 V

Output current

0.7 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating temperature (transmitter)

0 - 40 °C

Operating temperature (receiver)

0 - 40 °C

Operating relative humidity (H-H)

10 - 95%

Weight & dimensions

Weight

360 g

Packaging content

Quick start guide

Yes

AC adapter included

Yes

Packaging data

Package width

119 mm

Package depth

180 mm

Package height

56 mm

Package weight

410 g

Logistics data

Harmonized System (HS) code

85176990
