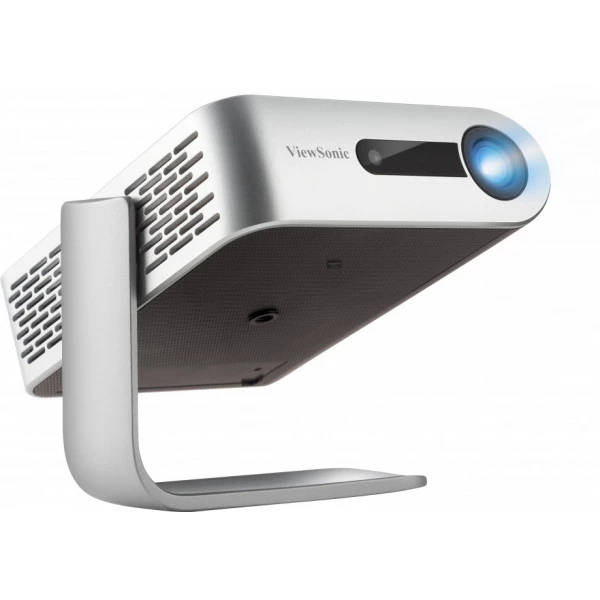

Ultra-portable LED projector M1 WVGA 250 Lm 120000:1 Built-in Battery

Introduction

The ViewSonic® M1 is an ultra-portable LED projector that delivers convenient entertainment in nearly any room. With a built-in battery and over 30,000 hours of operational life, this projector will deliver years of multimedia entertainment wherever it goes. Weighing less than two pounds, the M1's compact and lightweight design makes it ideal for moving from room to room, or for indoor/outdoor usage. An integrated smart stand provides for simple 360-degree setup, while also doubling as a lens cover. Once the lens is uncovered, the projector automatically powers on with full brightness for instant entertainment. A built-in safety feature temporarily turns off the lens when objects are detected too close to the projector. Dual Harman Kardon speakers provide crisp and clear sound for multimedia content, while a short throw lens can display large images in small spaces. What's more, versatile connectivity options include a MicroSD card slot, USB Type-A, and USB Type-C - making the M1 a great option for sharing and displaying videos and other multimedia content.

Projector

Screen size compatibility

609.6 - 2540 mm (24 - 100")

Projection distance

0.64 - 2.66 m

Projector brightness

125 ANSI lumens

Projection technology

LED

Projector native resolution

WVGA (854x480)

Contrast ratio (typical)

120000:1

Number of colours

1.07 billion colours

Horizontal scan range

15 - 102 kHz

Vertical scan range

23 - 120 Hz

Keystone correction, vertical

-40 - 40°

Matrix size

5.08 mm (0.2")

Light source

Light source type

LED

Service life of light source

30000 h

Lens system

Focus

Manual

Fixed focal length

5.5 mm

Aperture range (F-F)

1.7 - 1.7

Zoom type

Fixed

Throw ratio

1.2

Video

Full HD

N

3D

Y

Supported graphics resolutions

640 x 480 (VGA),1920 x 1080 (HD 1080)

Supported video modes

480i,480p,576i,576p,720p,1080i,1080p

Ports & interfaces

HDMI connector type

Full-size

HDMI version

1.4

USB 2.0 ports quantity

1

Headphone outputs

1

HDMI ports quantity

1

DVI port

N

DC-in jack

Y

Network

Smart TV

N

Ethernet LAN

N

Wi-Fi

N

Storage

Card reader integrated

Y

Compatible memory cards

MicroSD (TransFlash), MicroSDHC

Maximum memory card size

32 GB

Internal storage capacity

16 GB

Features

Interactive

N

Noise level (economic mode)

25 dB

On Screen Display (OSD)

Y

On Screen Display (OSD) languages

Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese

Number of OSD languages

23

Noise level

26 dB

Multimedia

Built-in speaker(s)

Y

RMS rated power

6 W

Number of built-in speakers

2

Design

Market positioning

Portable

Product type

Short throw projector

Product colour

Silver

Placement

Tripod

Display

Built-in display

N

Power

Power source

AC/Battery

Power consumption (typical)

45 W

Power consumption (standby)

0.5 W

AC input voltage

100 - 240 V

AC adapter output voltage

19 V

Battery capacity

12000 mAh

Battery life (max)

3 h

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Weight & dimensions

Width

146 mm

Depth

126 mm

Height

40 mm

Weight

750 g

Package width

219 mm

Package depth

190 mm

Package height

119 mm

Package weight

1.7 kg

Packaging content

Remote control included

Y

Cables included

AC, USB Type-C

Carrying case

Y

Manual

Y
