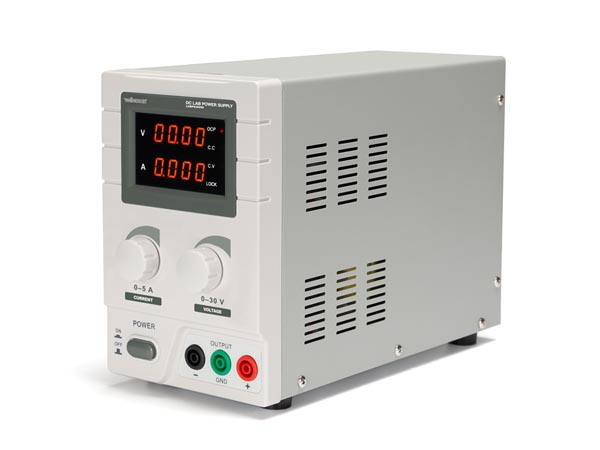

ALIMENTATION DC LAB · DOUBLE AFFICHEUR LED / 0-30 VCC 0-5 A MAX

ALIMENTATION DC LAB · DOUBLE AFFICHEUR LED / 0-30 VCC 0-5 A MAX

Part Number:
LABPS3005N
Language:
UK
 Without VATWith VAT
Base Price:€99,03€119,83
Recupel:+ €0,06+ €0,07
Total:€99,09€119,90

Introduction

- dual LED display for voltage and current
- coarse and fine adjustments of voltage and current
- voltage or current-limiting
- output connectors: insulated safety terminals
- low noise temperature controlled fan
- 4 digit display
- setting lock function
- constant voltage / constant current
- 10 mV / 1 mA setting resolution
- protection modes:
- fuse 3.15 A / 250 V
- over-current protection
- over-temperature protection (95 °C)
- fuse-protected

Power

Total power

150 W

AC input voltage

220 V

AC input frequency

50 - 60 Hz

Power factor

0.82

Power protection features

Input fuse, Over current, Overheating

Design

Product colour

Grey

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Weight & dimensions

Width

117 mm

Depth

270 mm

Height

190 mm

Weight

4.8 kg
