VELLEMAN

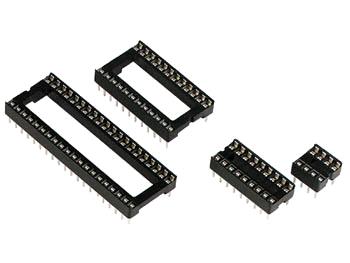

Support Ci Dual In Line, 16p, 300mil

Part Number:
16P
Language:
UK
 Without VATWith VAT
Base Price:€0,54€0,65
Total:€0,54€0,65
Add to cart

Introduction

16P DIL IC VOET 300MIL

Specifications

  • Basis productinformatie:
       • Primaire kleuren: Zwart
       • Extra kleuren: Grijs
       • Diepte van het product: 20.19 mm
       • Hoogte van het product: 8.68 mm
       • Breedte van het product: 10.01 mm
       • Gewicht Product: 1.1 g
       • Materiaal: Glasgevulde thermoplast (PBT)
  • Fysieke eigenschappen:
       • Afwerking: Vertind
       • Afmetingen IC-aansluitingen:
    • A: 7.62 mm
    • B: 10.01 mm
    • C: 20.19 mm
    • D: 8.13 mm
    • E: 17.78 mm

       • Afwerking binnencontact: Fosforbrons
       • Contact materiaal: Koper
       • Type pen: Gestempeld
       • Enkele strip: Neen
  • Elektrische gegevens:
       • Maximale nominale stroomsterkte: 1 A
       • MIL: 300
       • Minimum bestendige rms spanning: 1000 V
       • Maximale contactweerstand: 20 mO
       • Minimale isolatieweerstand: 1000 MO
  • Technische gegevens:
       • Type montage: Through hole
       • Aantal contacten: 16
       • Brandbaarheid: UL 94 V-0
       • Pitch: 2.54 mm
       • IC-aansluitingstype: DIL
       • Maximale insteekkracht: 340 g
       • Minimale uittrekkracht: 50 g
  • Omgevingsgegevens:
       • Bedrijfstemperatuurbereik: -55-105 °C
  • Gebruikseigenschappen:
       • Type contact: Veer
  • Voeding:
       • Spanning VAC: 250 V AC
No options for this product
