Antenna 5/7 Dbi Outdoor Dual Band Omni Kit (tew-ao57)

Introduction

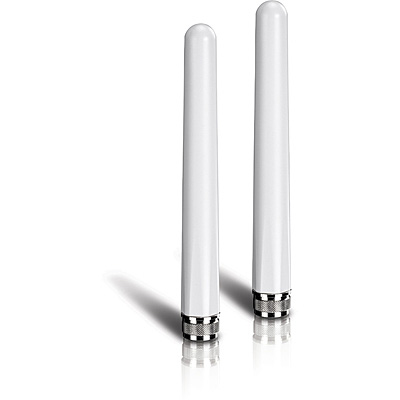

TRENDnet's 5/7 dBi Outdoor Dual Band Omni Antenna Kit, model TEW-AO57, comes with a pair of high performance outdoor antennas which support 2.4 and 5 GHz radio transmissions. The omni-directional antennas provide blanket wireless coverage and have N-Type male connectors. The antennas work with 802.11ac/n/g/b/a routers and access points with N-Type female connectors.
- Antenna Kit
Comes with a pair of outdoor antennas
- Outdoor
Durable antenna construction for extreme outdoor conditions
- Omni-Directional
Omni-directional antennas for blanket wireless coverage
- Dual Band Support (2.4 + 5 GHz)
Compatible with 802.11ac/n/g/b/a routers and access points
- Antenna Gain
2.4 GHz peak gain: 5 dBi, 5 GHz peak gain: 7 dBi
- N-Type Connector
N-Type male connectors are compatible with routers and access points with N-Type female connectors
* Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna align-ment, receiving sensitivity, and radio interference. Additionally environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.

Performance

Frequency band

2.4 - 2.5 / 5.1 - 5.875 GHz

Networking standards

IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n

Antenna gain (2.4 GHz)

5 dBi

Antenna gain (5 GHz)

7 dBi

Impedance

50 O

Horizontal beam width

360°

Vertical beam width

30°

Antenna gain level (max)

7 dBi

Features

Antenna type

Omni-directional antenna

Antenna connector type

N-type

Connector gender

Male

Polarization

Vertical polarization

Voltage Standing Wave Ratio (VSWR)

2.0 max.: 1

Power handling

2 W

Purpose

Outdoor

Compatible products

Compatible with 802.11ac/n/g/b/a routers and access points with N-Type female connectors

Product colour

White

Technical details

Sustainability certificates

RoHS

Operational conditions

Operating temperature (T-T)

-40 - 70 °C

Weight & dimensions

Width

22 mm

Height

178 mm

Weight

58 g

Packaging content

Quantity per pack

2 pc(s)
