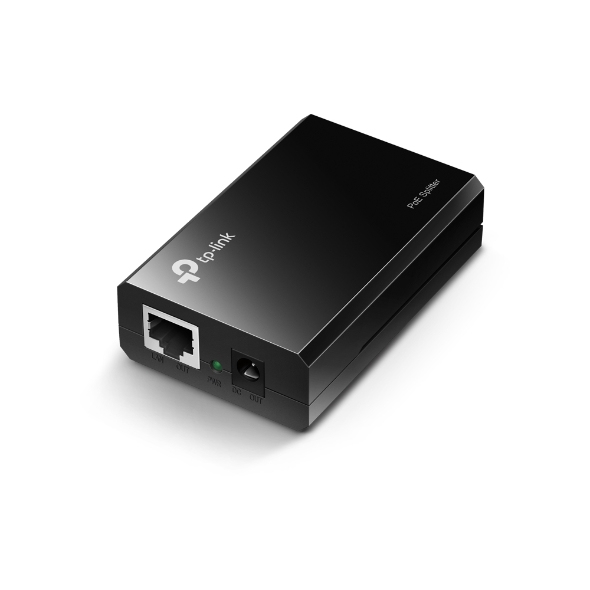

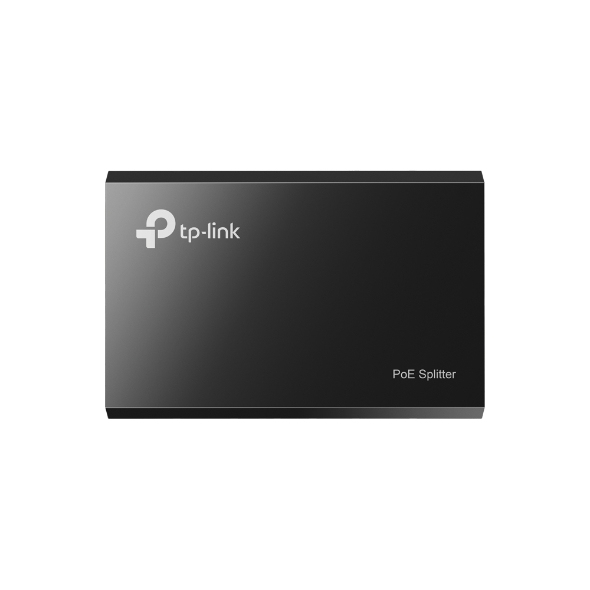

Tl-poe10r Poe Splitter Gigabit

Introduction

TP-LINK's PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard. It can receive power and data from all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Injector, such as TP-LINK's TL-SG3424P, TL-SF1008P, TL-POE150S or other equivalent products, then split electric power and data into two cables, so you can install the non-PoE devices like Wireless Access Points, IP Cameras or IP Phones, in remote location where there are no power lines or outlets, where you wish to fix these devices.

Performance

Networking standards

IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u

Design

Product colour

Black

LED indicators

Power

Plug and Play

Y

Certification

FCC, CE

Ports & interfaces

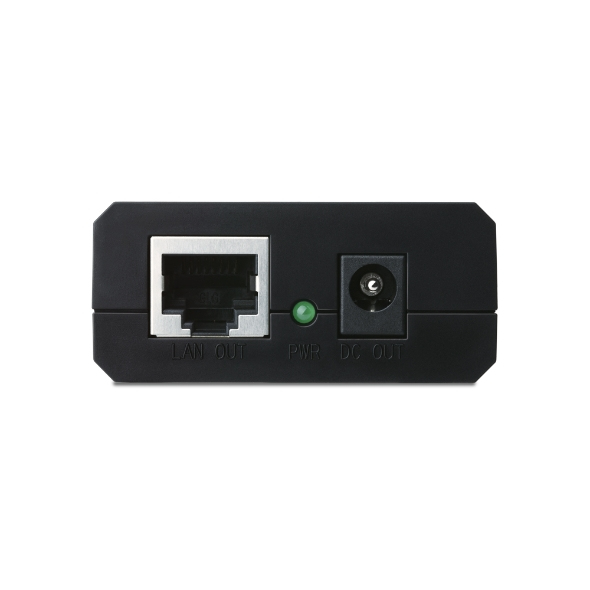

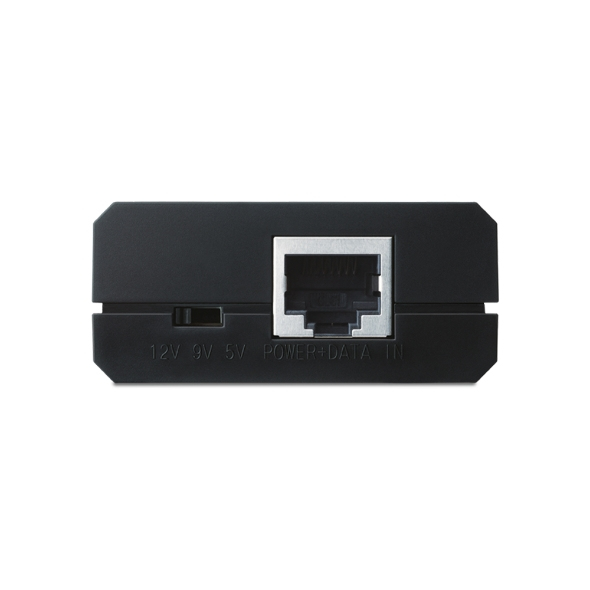

Ethernet LAN (RJ-45) ports

2

RJ-45 input ports

1

RJ-45 output ports

1

DC-out jack

Y

Power

Power over Ethernet (PoE)

Y

Input voltage

5, 9, 12 V

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

80.8 mm

Depth

54 mm

Height

24 mm
