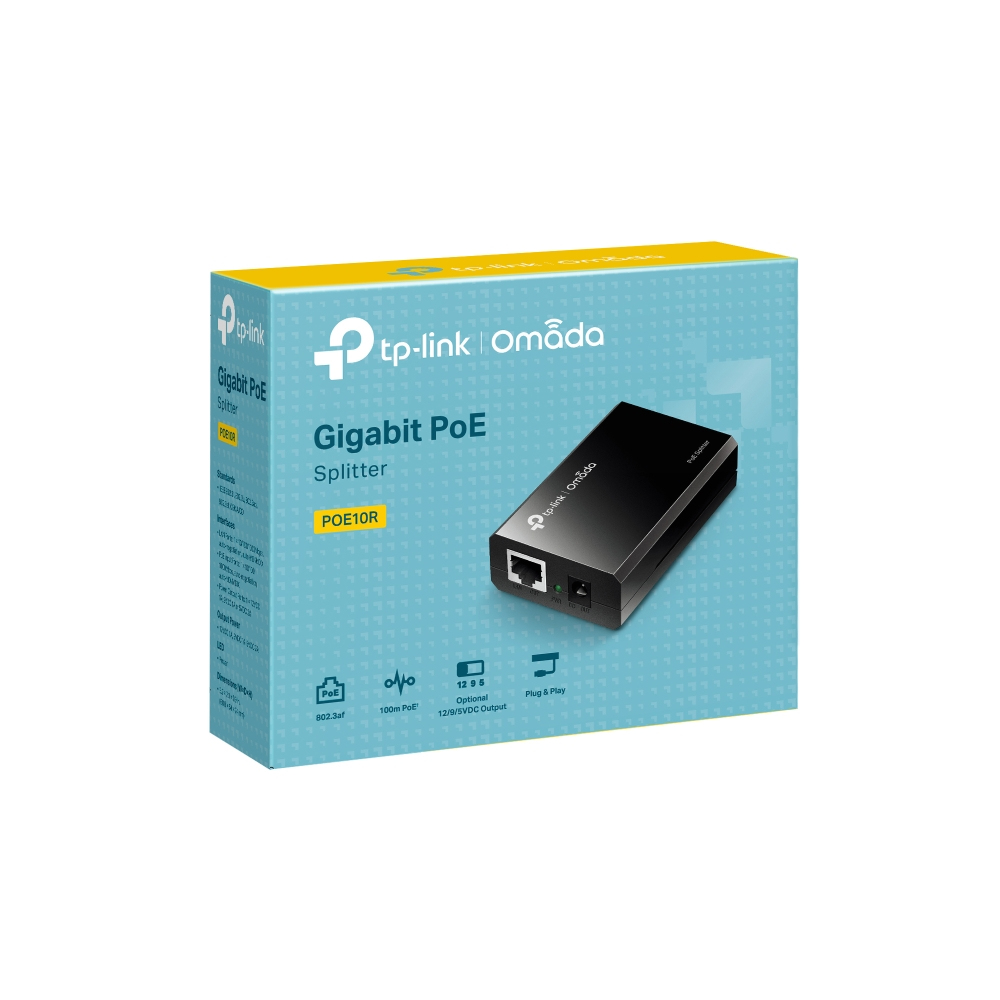

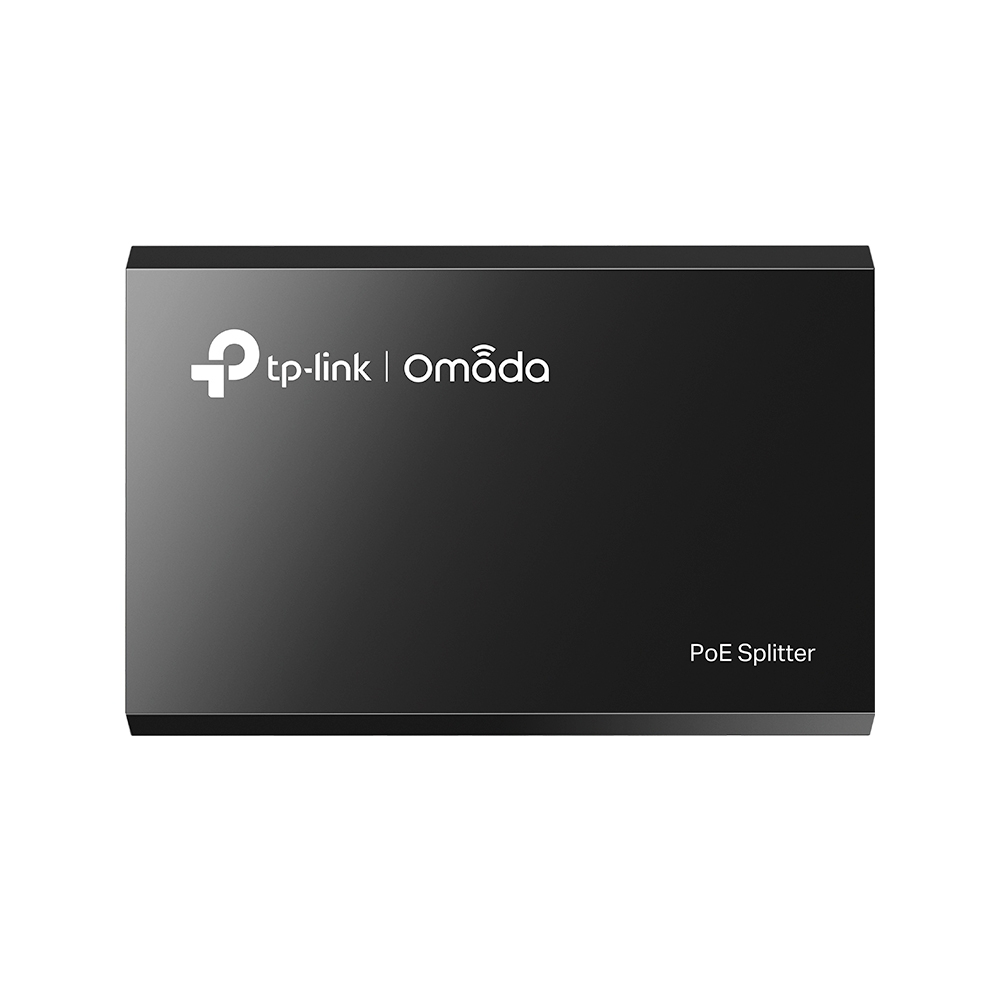

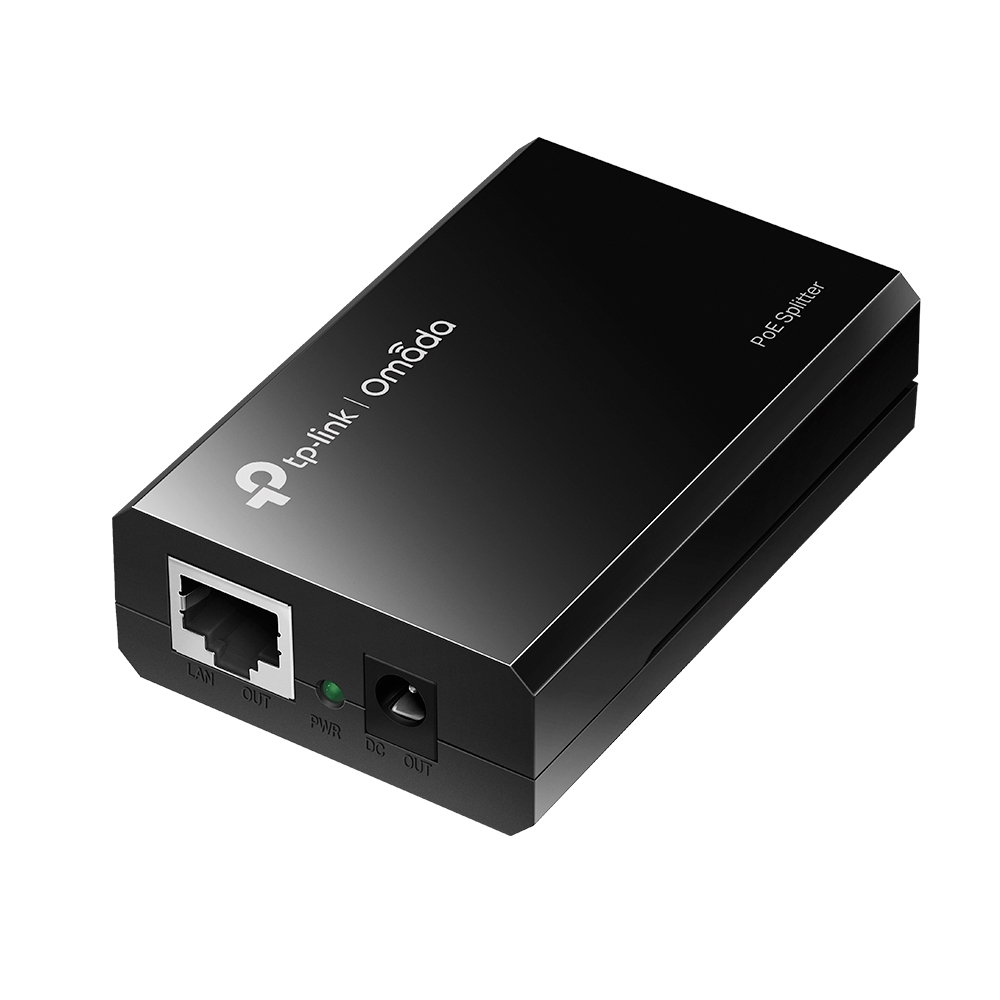

Tl-poe10r Poe Splitter Gigabit

Introduction

The PoE Splitter POE10R (TL-POE10R) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's TL-SF1008P or POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Performance

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u

Design

Product colour

Black

LED indicators

Power

Plug and Play

Yes

Certification

FCC, CE

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

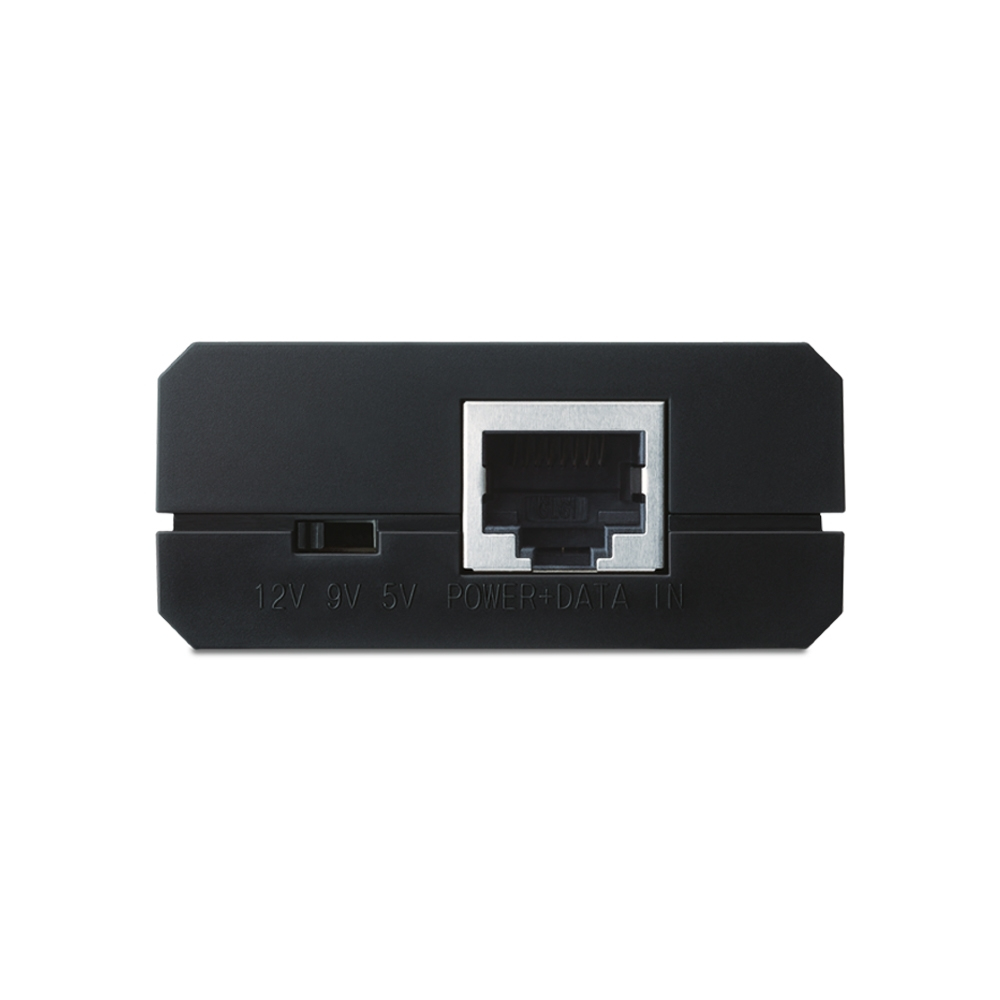

RJ-45 input ports

1

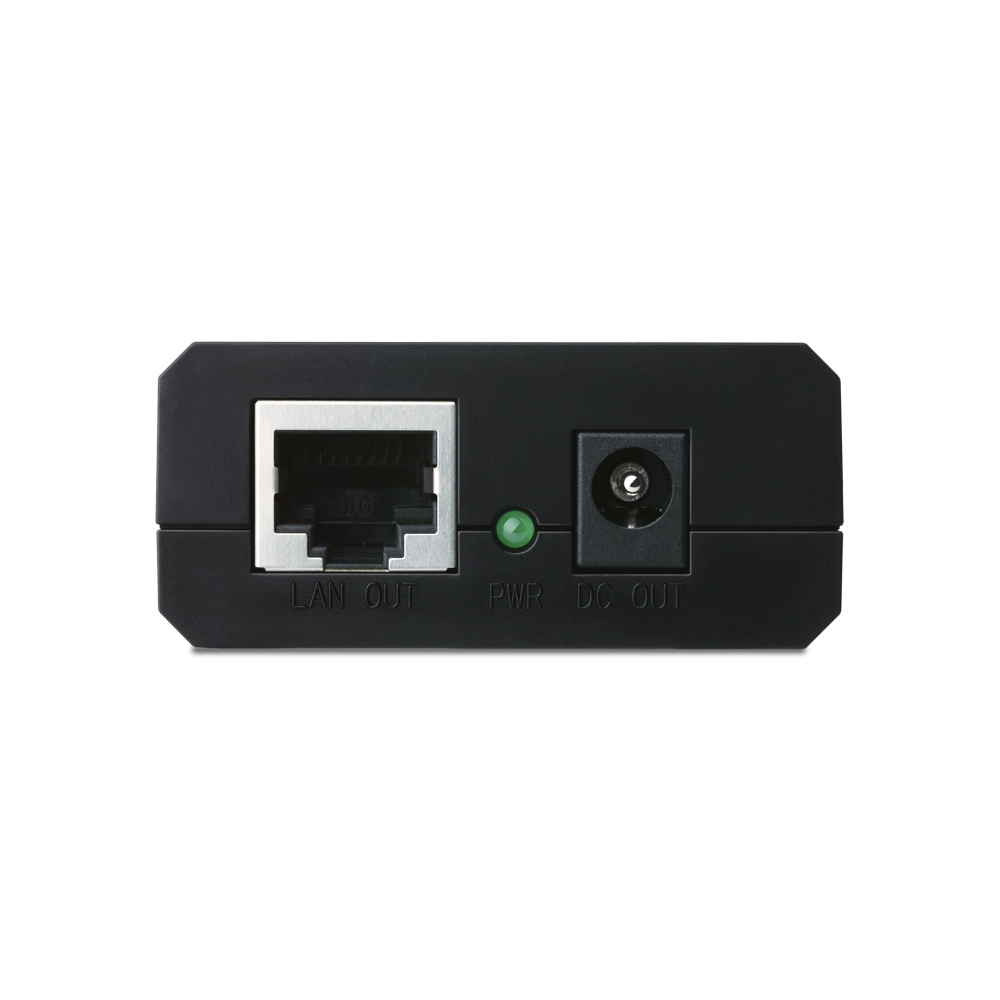

RJ-45 output ports

1

DC-out jack

Yes

Power

Power over Ethernet (PoE)

Yes

Input voltage

5, 9, 12 V

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

80.8 mm

Depth

54 mm

Height

24 mm

Packaging content

Quantity

1

Quick installation guide

Yes

Package type

Box
