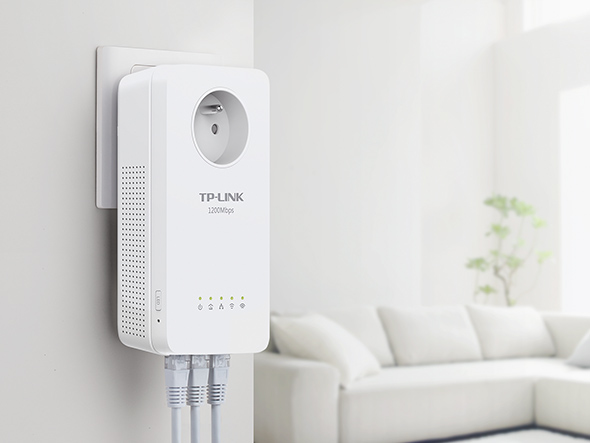

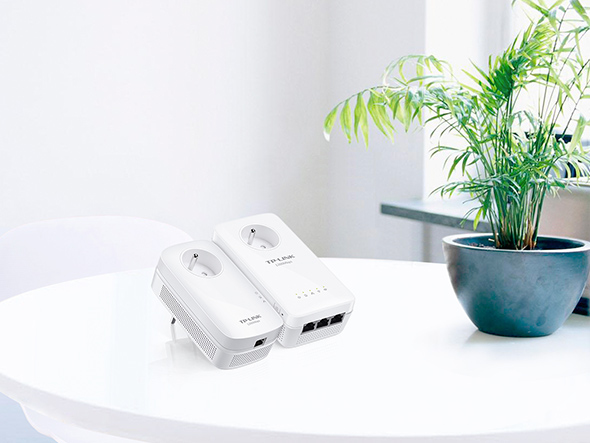

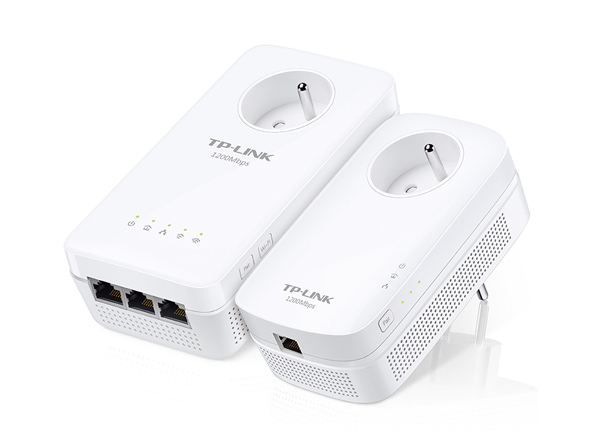

Passthrough Powerline Kit Av1300 3-port V4 + Wifi Ac1350 2x Lc Kit With 3 Gigabit Ethernet Ports And Trunk Plug

Performance

Maximum data transfer rate

1200 Mbit/s

Ethernet LAN

Yes

Ethernet LAN interface type

Gigabit Ethernet

Ethernet LAN data rates

1000 Mbit/s

Ethernet LAN (RJ-45) ports

3

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-Fi standards

802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Networking standards

IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u

Built-in power socket

Yes

Modulation

OFDM

Security algorithms

128-bit AES

Maximum operating distance

300 m

Quality of Service (QoS) support

Yes

Plug and Play

Yes

Technical details

Harmonized System (HS) code

85171800

Sustainability certificates

RoHS

Power

Power consumption (typical)

10.8 W

Power consumption (standby)

5 W

AC input voltage

230 V

AC input frequency

50 Hz

Design

LED indicators

LAN, Power, WLAN

Product colour

White

Certification

CE

System requirements

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Mac compatibility

Yes

Mac operating systems supported

Yes

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Weight & dimensions

Package width

230 mm

Package depth

190 mm

Package height

100 mm

Packaging content

Quantity per pack

2 pc(s)

Quick installation guide

Yes

Cables included

LAN (RJ-45)
