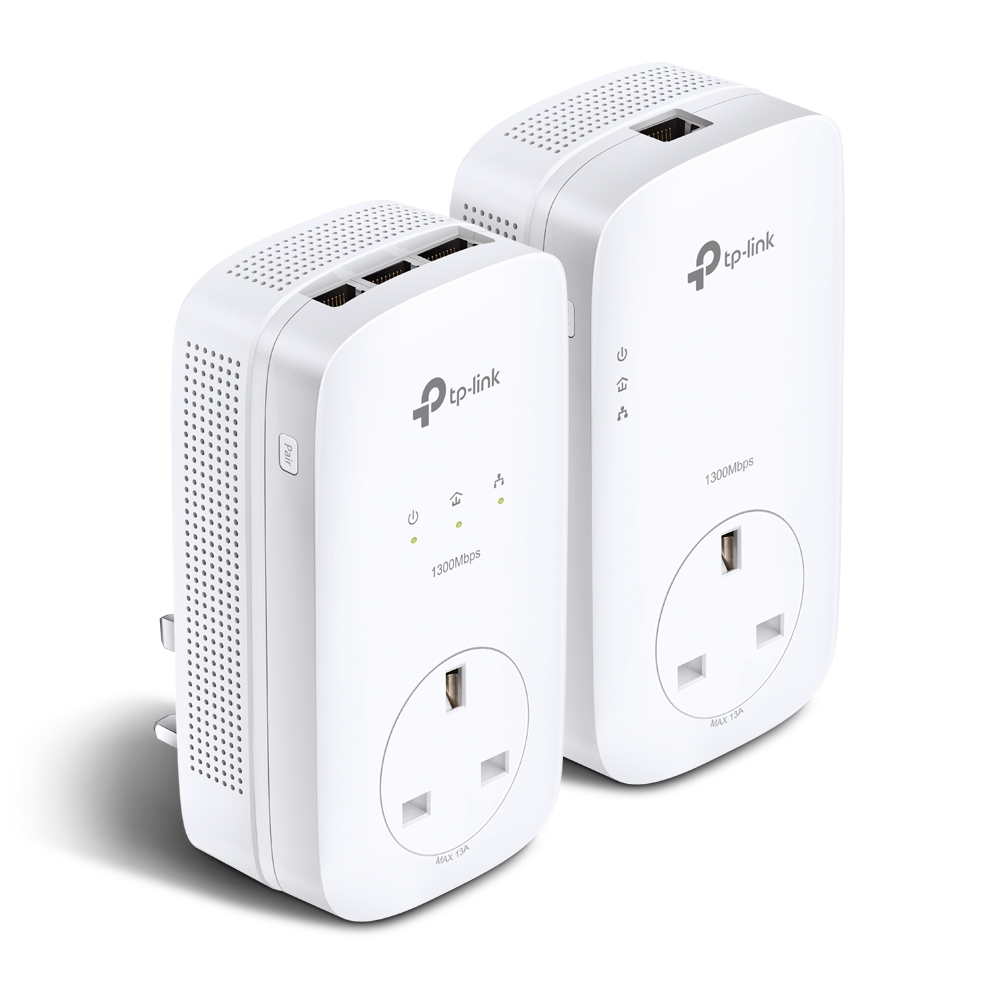

Passthrough Powerline Kit Av1300 3-port White With Socket

Introduction

AV1300 Powerline Kit
Bring Your Network Into New Era

AV1300 3-Port
Gigabit Passthrough
Powerline Starter Kit

Upgraded 1300Mbps!
Perfect for Bandwidth Demanding Activities
Advanced HomePlug AV2 technology means the TL-PA8033P KIT supports 2x2 MIMO* with
beamforming, so users benefit from ultra-fast data transfer speeds of up to 1300Mbps. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers.

*The MIMO functionality within HomePlug AV2 significantly improves
data transfer rates especially during peak periods.

Line-Neutral/Line-Ground
with Beamforming

- Larger Range

MIMO Technology with Beamforming maximizes the performance on the independent streams, which improves coverage throughout the home, particularly for previously hard to reach outlets.

- Higher Transmission Capacity & More Stable Connections

MIMO Technology means the TL-PA8033P KIT can use the 3 wires, including the live, neutral and earth to create multiple data paths, meaning that you benefit from faster data throughput and more stable connections.

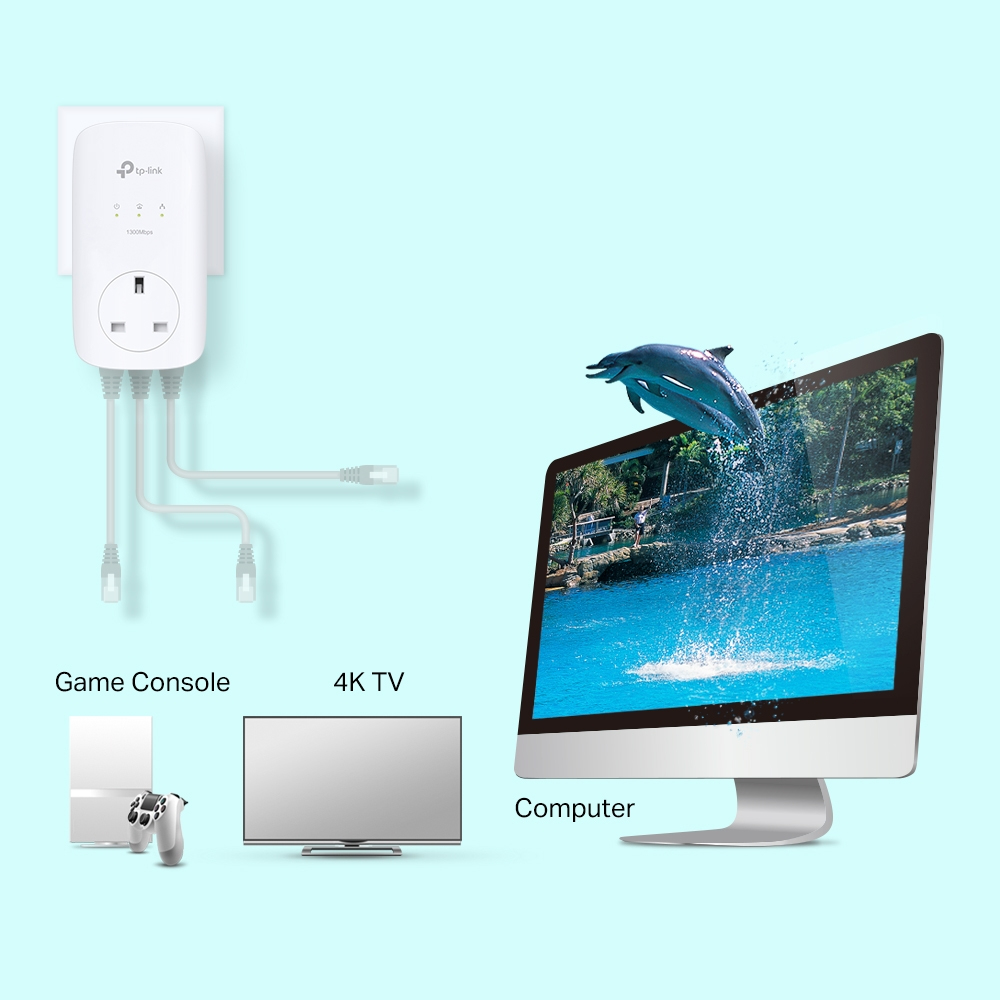

3 Gigabit Ports
for Maximum Connectivity
With 3 gigabit Ethernet ports, TL-PA8033P KIT can simultaneously connect up to 3 wired-only devices. This makes the TL-PA8033P KIT the perfect home entertainment companion. Connect any 3 devices from smart TVs and game consoles to NAS boxes and computers to the Internet at the same time. Just plug the Ethernet cable into the powerline and away you go!

Plug and Play,
No Configuration Required
Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you're done!

Pair for more security
Get more security for your network with the simple paring process

Extra Power Socket for Additional Devices
The integrated power socket, with power output of up to 13A*, means the powerline can be used like a traditional electrical socket. Simply plug in your device or extension lead as though it were a normal wall socket. The built-in noise filter also helps to prevent electrical signal noise from affecting Powerline performance.

Power Save by
Up to 85%
TL-PA8033P KIT is a new-generation of Powerline adapter. Its sophisticated Power-Saving mode automatically switches from its regular "Working" mode to "Power-Saving" mode reducing energy consumption by up to 85%.

Performance

Maximum data transfer rate

1300 Mbit/s

Ethernet LAN

Y

Ethernet LAN interface type

Gigabit Ethernet

Networking standards

IEEE 1901,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u

Built-in power socket

Y

Maximum operating distance

300 m

MIMO

Y

MIMO type

Multi User MIMO

Plug and Play

Y

Power

Power consumption (typical)

5.32 W

Power consumption (standby)

1.36 W

Current

16 A

Design

LED indicators

Power

Product colour

White

System requirements

Windows operating systems supported

Windows 2000,Windows XP

Mac compatibility

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

131 mm

Depth

72 mm

Height

42 mm

Technical details

Sustainability certificates

RoHS
