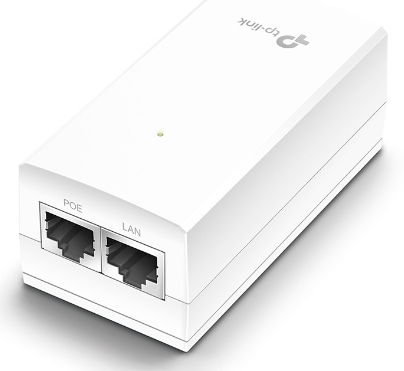

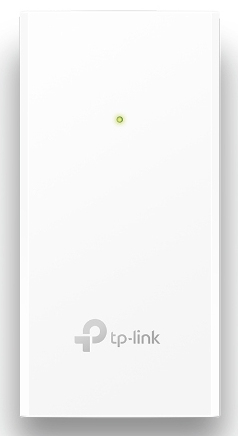

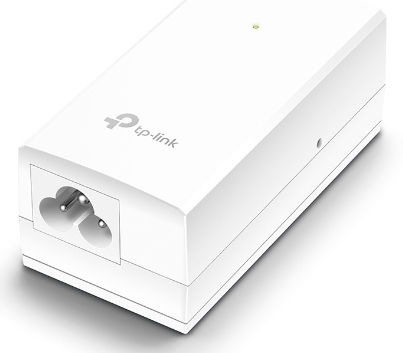

Adapter Gigabit 24vdc Passive Poe White

Introduction

Passive PoE Adapter
Powers TP-Link products that
support 24V passive PoE
TL-POE2412G

Power Your Devices
Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design
TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.

Compatible Devices
TL-POE2412G is the recommended power supply for compatible devices.

Network

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Cabling technology

10/100

Power over Ethernet (PoE)

Y

Cable types supported

Cat3,Cat4,Cat5,Cat5e,Cat6

Features

Product colour

White

Plug and Play

Y

LED indicators

Power

Certification

FCC, CE, RoHS

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

Power

Power over Ethernet (PoE) voltage

24 V

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating temperature (T-T)

-40 - 70 °F

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Dimensions (WxDxH)

43.9 x 85.8 x 35 mm

Packaging content

Number of products included

1 pc(s)

Wall mounting kit

Y

Power cord included

Y

Technical details

Sustainability certificates

RoHS
