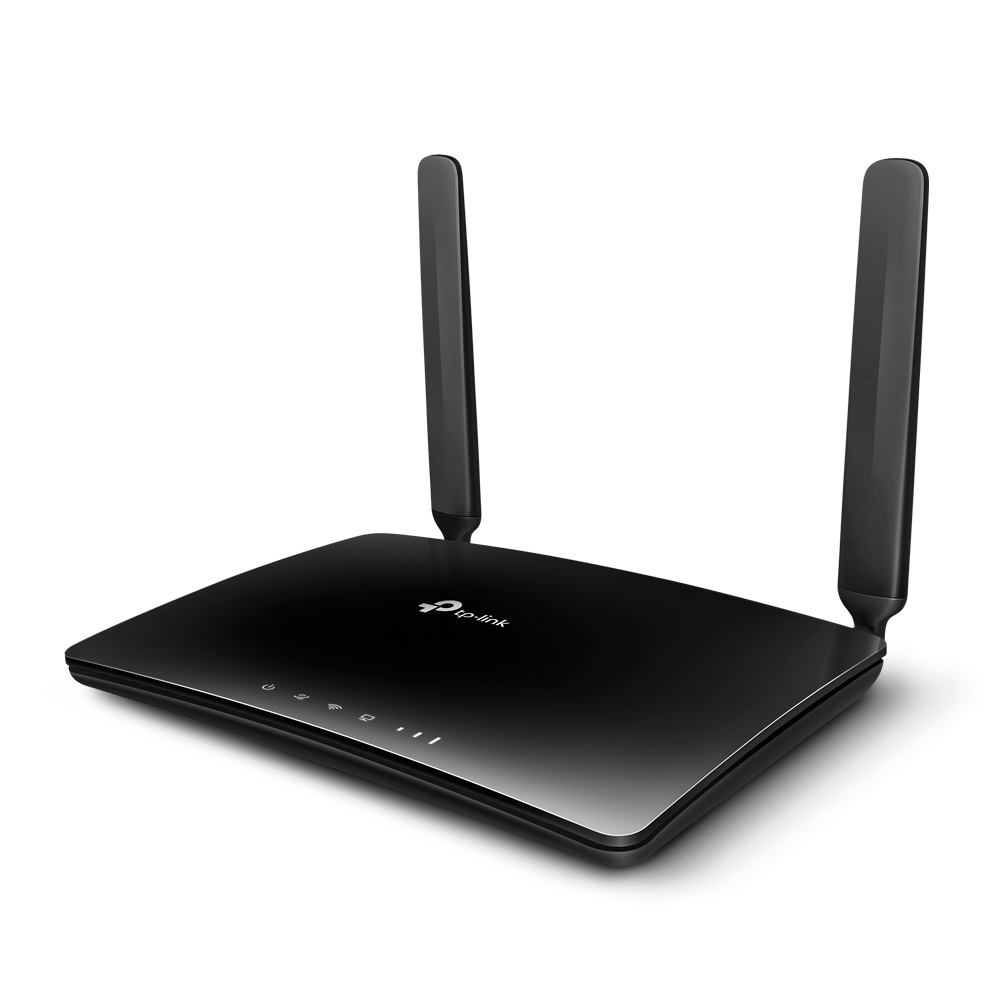

Wireless Router Ac1200 Archer Mr400 V3 Dual Band Black

Introduction

4G LTE with AC1200 Wi-Fi to Stream from Everywhere
AC1200 Wireless Dual Band 4G LTE Router
Archer MR400

Got SIM Card?
Then Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a micro SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Share Your 4G LTE Network
Take full of advantage of your cutting-edge 4G LTE network for download speeds of up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.

Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you're at home or working remote.

Internet Access for
up to 64 Devices Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.

Easy Setup and Management
Set up the Archer MR400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

WAN connection

Ethernet WAN

Y

DSL WAN

N

SIM card slot

Y

3G/4G USB modem compatibility

N

WAN connection type

RJ-45

Wireless LAN features

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

WLAN data transfer rate (max)

867 Mbit/s

Wi-Fi standards

802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)

WLAN data transfer rate (first band)

450 Mbit/s

WLAN data transfer rate (second band)

867 Mbit/s

Network

Ethernet LAN

Y

Ethernet LAN interface type

Fast Ethernet

Ethernet LAN data rates

10,100 Mbit/s

Cabling technology

10/100Base-T(X)

Networking standards

IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n

Port forwarding

Y

Dynamic DNS (DDNS)

Y

VPN tunnels quantity

10

VPN Passthrough

Y

VPN support

PPTP, L2TP, IPSec

Receiver sensitivity

5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm

Mobile network

3G

Y

Mobile network generation

4G

4G

Y

2G standards

Edge, GPRS, GSM

3G standards

DC-HSPA+,HSPA,HSPA+,UMTS

4G standard

LTE

GSM bands supported

850,900,1800,1900 MHz

UMTS bands supported

900,2100 MHz

4G bands supported

800,900,1800,2100,2600 MHz

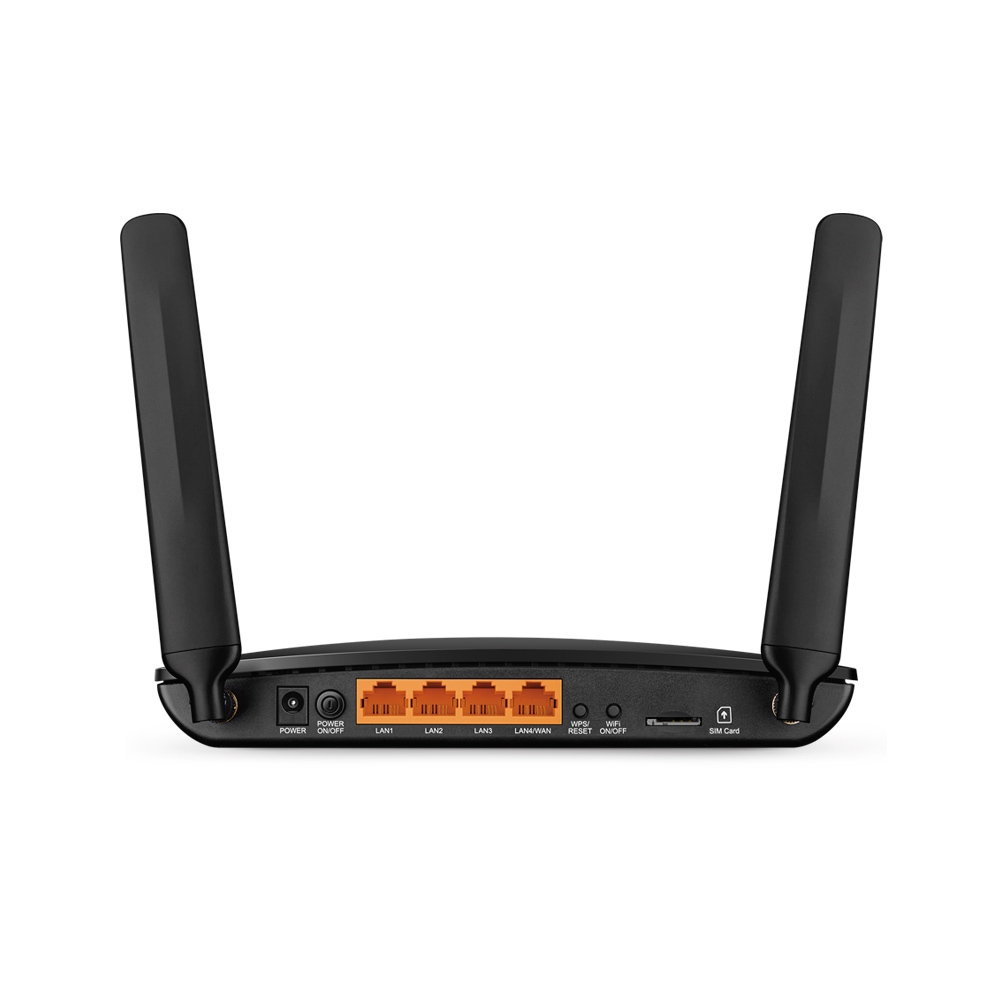

Ports & interfaces

Ethernet LAN (RJ-45) ports

3

USB port

N

Memory card slot(s)

N

DC-in jack

Y

Management features

Web-based management

Y

Quality of Service (QoS) support

Y

Reset button

Y

WPS push button

Y

Security

Security algorithms

64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK

Firewall

Y

Guest access

Y

Access Control List (ACL)

Y

Stateful Packet Inspection (SPI)

Y

DoS attack prevention

Y

DMZ support

Y

Protocols

DHCP client

Y

DHCP server

Y

Supported network protocols

IPv4, IPv6

Design

Product colour

Black

Wall mountable

Y

LED indicators

LAN, Power, Status, WLAN

On/off switch

Y

Product type

Tabletop router

Antenna

Antenna type

Internal & external

Antennas quantity

2

Detachable antenna(s)

Y

Transmit power

CE: <20dBm(2.4GHz), <23dBm(5GHz)

Features

Certification

CE, RoHS

Power

Power source type

DC

Output voltage

12 V

Output current

1.5 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

System requirements

Windows operating systems supported

Windows 10,Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows Vista,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64

Linux operating systems supported

Y

Mac operating systems supported

macOS

Mac compatibility

Y

Weight & dimensions

Width

174 mm

Depth

124.5 mm

Height

33.5 mm

Packaging data

Cables included

LAN (RJ-45)

AC adapter included

Y

Quick installation guide

Y

Package width

307 mm

Package depth

223 mm

Package height

70 mm

Package type

Box
