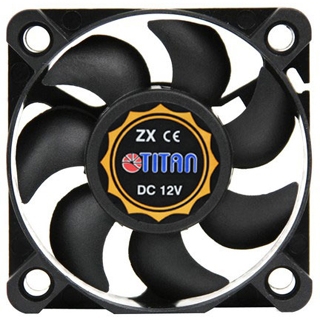

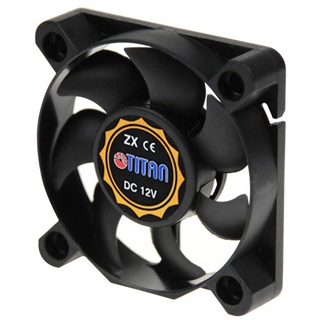

Dc Fan With Z-axis Bearing

Introduction

- 12V 3-pin. mainboard connector.
- Z-Axis bearing fan.
- Current: 0.09A.
- Wattage: 1.08W.
- Noise level: <23dB(A).
- Maximum air flow: 8.63cfm.
- 4500RPM.
- Exterior dimensions LxWxH mm: 50x50x10.
- Product life: ca. 60000 hours.

Performance

Suitable location

Computer case

Type

Fan

Fan diameter

5 cm

Supported processor sockets

Not supported

Compatible processor series

Not supported

Rotational speed (max)

4500 RPM

Noise level (high speed)

23 dB

Maximum airflow

8.63 cfm

Mean time between failures (MTBF)

60000 h

Design

Product colour

Black

Material

Plastic

Number of fans

1 fan(s)

Power

Power consumption (typical)

1.08 W

Voltage

12 V

Rated current

0.09 A

Weight & dimensions

Width

50 mm

Depth

50 mm

Height

10 mm

Technical details

Bearing technology

Z-Axis

Other features

Connector(s)

3-pin

Logistics data

Harmonized System (HS) code

84733080
