Ethernet Adapter E25g21-f2 - Dual Port Sfp28 - Pci-e 3.0

Introduction

High-performance connectivity upgrade

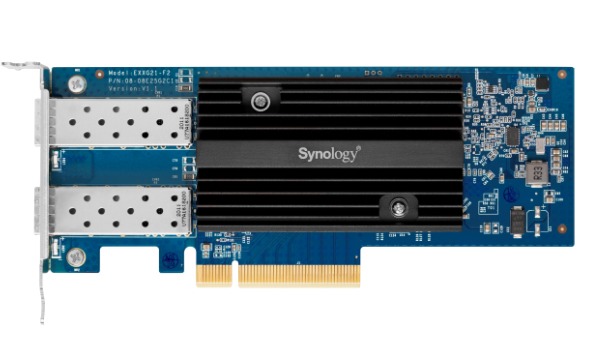

The E25G21-F2 adapter gives you more connectivity options with support for SR and LR transceivers and DAC options. Dual 25GbE SFP28 ports help remove network bandwidth limitations, while backwards compatibility with 10GbE SFP+ equipment reduces installation and implementation costs. CPU offloading technologies reduce network transfer overhead on the host system's processor to boost system performance.

Ports & interfaces

Connectivity technology

Wired

Host interface

PCI Express

Interface

Ethernet

Fiber optic connector

SFP28

Network

Maximum data transfer rate

25000 Mbit/s

Networking standards

IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3by

Full duplex

Y

Design

Component for

Server

Product colour

Black, Blue, Silver

Internal

Y

Compatible products

FS6400, FS3600, FS3400, FS3017, FS2017, FS1018, SA3600, SA3400, SA3200D, UC3200, RS4021xs+, RS3621xs+, RS3621RPxs, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+, RS1619xs+, RS3618xs, DS3018xs, RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

168 mm

Depth

69 mm

Height

17.3 mm
