Audio Adapter External Sound Card 7.1 USB

Introduction

This versatile External USB Sound Card/Audio Adapter offers a high quality solution for upgrading desktop or laptop sound.

Providing a robust USB audio experience, the USB sound card connects to a host computer through a single USB 2.0 connection, to deliver impressive external audio capability that can instantly be swapped between systems, without having to open the computer case for installation.

Supporting analog and digital audio for 2 to 7.1 channel audio applications, the external USB sound card provides a cost-saving upgrade from built-in/on-board sound that turns desktop/laptop sound into a home theater-ready audio solution.

The external USB sound card features easy-to-use volume control and two external microphone inputs - a convenient solution for any audio application requiring high quality sound with multi-input capability with support for 44.1 KHz and 48 KHz sampling rates for analog playback and recording or 48 KHz for SPDIF.

A more than suitable solution for home theater, gaming or multi-media presentations, the External USB Sound Card is easy to install with plug and play support in Windows XP and Windows Vista operating systems.

Designed to deliver a long-lasting and dependable sound solution, the External USB Sound Card/Audio Adapter is backed by our 2-year warranty and free lifetime technical support.

Note: The audio adapter's SPDIF optical pass-through port supports two-channel audio, this port does not support 5.1 or 7.1 audio.

The StarTech.com Advantage
- Full 7.1 audio output support in a compact and portable external sound card

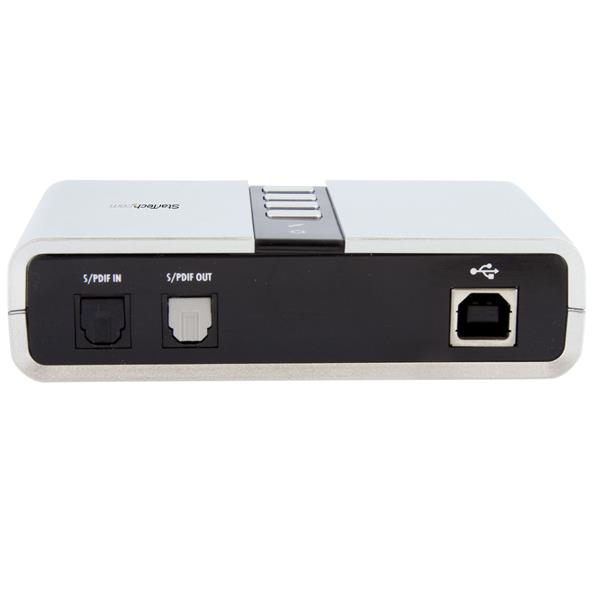

- Connect to external speakers through 3.5mm mini-jacks or optical S/PDIF
- Backed by a StarTech.com 2-year warranty and free lifetime technical support

Audio

Internal

N

Audio quality

16 bit

Audio output channels

7.1 channels

Digital-to-Analog Conversion (DAC)

16-bit/48kHz

Ports & interfaces

Host interface

USB

Line-in

Y

Headphone outputs

1

S/PDIF in port

Y

S/PDIF out port

Y

Microphone in

Y

Plug and Play

Y

Features

LED indicators

Activity, Power

Chipset

C-Media CM6206

Certification

RoHS, CE, FCC, REACH

Cables included

USB

Remote control included

N

Software

Windows operating systems supported

Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64

Weight & dimensions

Weight

90 g

Width

60 mm

Depth

100 mm

Height

25 mm

Package width

164 mm

Package depth

144 mm

Package height

32 mm

Package weight

204 g

Other features

Server operating systems supported

Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2

Quick start guide

Y
