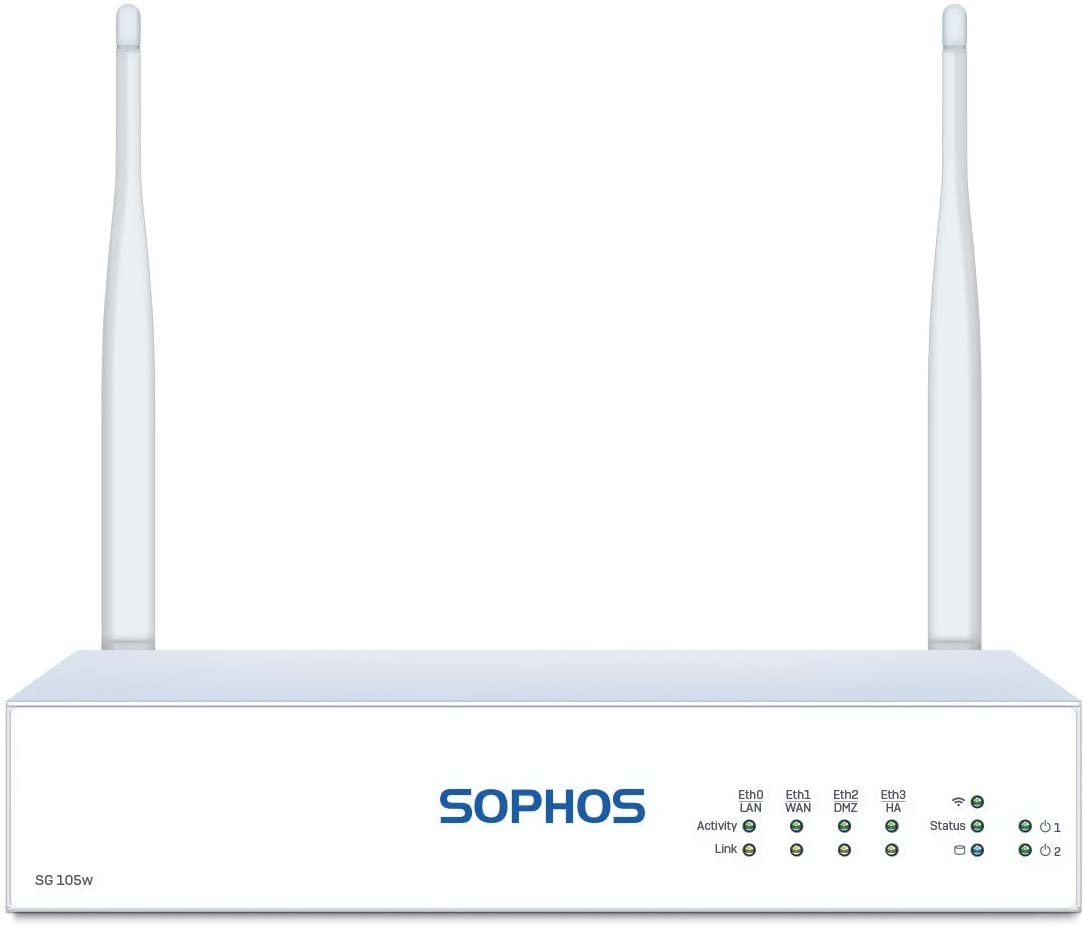

Firewall - SG 105 - Rev.3 - Security Appliance - Desktop (EU/UK/US Power Cord)

Introduction

These desktop firewall appliances offer an excellent price-to-performance ratio making them ideal for budget-conscious small businesses or branch offices. They are available with or without integrated 802.11ac wireless LAN, so you can even have an all-in-one network security and hotspot solution without the need for additional hardware. Of course, you can
also add external access points. With Intel multi-core technology designed for best performance and efficiency in a small form factor, these models come equipped with 4 GbE copper ports built-in and 1 shared SFP interface, e.g. for use with our optional DSL modem or an SFP transceiver for fiber connectivity. An optional second power supply provides an unmatched
redundancy option in this product segment. Select the software modules of your choice, or choose TotalProtect Plus for the full set of security features plus appliance.

Data transmission

Firewall throughput

2500 Mbit/s

VPN throughput

325 Mbit/s

IPS/IDS throughput

350 Mbit/s

Gateway antivirus throughput

0.38 Gbit/s

Performance

Antennas quantity

2

Concurrent connections

1000000

Certification

CB, UL, CE, FCC, ISED, VCCI, MIC (Japan), RCM, CCC, KC, BIS

Network

Wi-Fi

Y

Wi-Fi standards

802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)

Networking standards

IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Security

Security algorithms

SSL/TLS

Management features

LED indicators

Y

Ports & interfaces

Connectivity technology

Wired & Wireless

Gigabit Ethernet (copper) ports quantity

4

USB 2.0 ports quantity

2

Combo SFP ports quantity

1

Ethernet LAN (RJ-45) ports

4

Ethernet LAN data rates

10,100,1000 Mbit/s

Serial ports quantity

1

Card reader integrated

N

Storage

Storage media type

SSD

Design

Rack mounting

N

Form factor

Desktop

Built-in display

N

Power

AC input voltage

100-240 V

AC input frequency

50/60 Hz

Redundant power supply (RPS) support

Y

Number of power supply units

1

Technical details

Sustainability compliance

Y

Sustainability certificates

CE

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 80 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

225 mm

Depth

150 mm

Height

44 mm

Weight

1.11 kg

Packaging data

Package weight

1.84 kg

Packaging content

Cables included

AC
