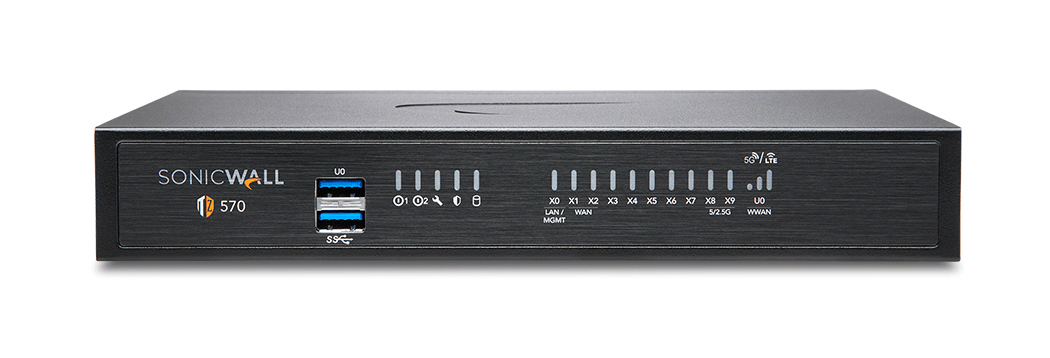

Tz570 High Availability

Introduction

TZ SERIES
NEXT-GENERATION FIREWALL (NGFW)

Protect your small business or branch location from intrusion, malware and ransomware with an easy-to-use, integrated security solution designed specifically for your needs. SonicWall TZ firewalls deliver enterprise-grade protection without the cost or complexity.

In an era of the ever-evolving security landscape, small- and medium-sized businesses (SMB) face large challenges when it comes to defending their networks, data and reputation. Keeping up with changes in technology can be as difficult as tracking the growing number of threats.

The SonicWall TZ series of firewalls is designed specifically for the needs of SMBs and branch locations, delivering enterprise-class security without the enterprise-grade complexity.

With Zero-Touch Deployment and simplified centralized management, installation and operation is easy. Detect sophisticated threats, including encrypted attacks, with advanced networking and security features, like the multi-engine Capture Advanced Threat Protection (ATP) cloud-based sandbox service with patent-pending Real-Time Deep Memory Inspection (RTDMIT). With optional features like PoE/PoE+ support and 802.11ac Wi-Fi, create a unified security solution for wired and wireless networks.

Simply plug in and enjoy the advanced protection of the cost-effective SonicWall TZ series firewall without worrying about complex management - or the next threat.

Data transmission

Firewall throughput

4000 Mbit/s

IPSec VPN throughput

1.8 Gbit/s

IPS/IDS throughput

2500 Mbit/s

SSL inspection throughput

750 Mbit/s

Maximum connections (DPI)

400000

Maximum connections (SPI)

1250000

Maximum firewall connections per second

16000

Performance

Heat dissipation

44.7 BTU/h

Network

Wi-Fi

N

VPN tunnels quantity

200

Local user database

250

Number of VLANs

256

DHCP server

Y

Quality of Service (QoS) support

Y

Point-to-point protocol over Ethernet (PPPoE)

Y

Number of LAN Access Points (max)

32

Protocols

Routing protocols

BGP,OSPF,RIP-1,RIP-2

Management features

LED indicators

Y

Ports & interfaces

Connectivity technology

Wired

Gigabit Ethernet (copper) ports quantity

8

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Ethernet LAN (RJ-45) ports

8

Ethernet LAN data rates

1000,5000 Mbit/s

Console port

RJ-45

Number of console ports

1

WAN connection

Mobile network (USB)

Installed SFP+ modules quantity

2

Storage

Total storage capacity

32 GB

Design

Form factor

Desktop

Built-in display

N

Power

AC input voltage

100-240 V

AC input frequency

50/60 Hz

Power consumption (max)

13.4 W

Power supply

60 W

Redundant power supply (RPS) support

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

225 mm

Depth

150 mm

Height

35 mm

Weight

970 g
