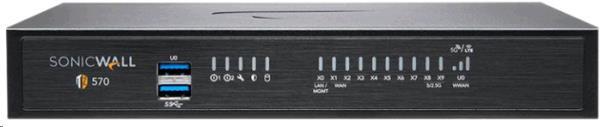

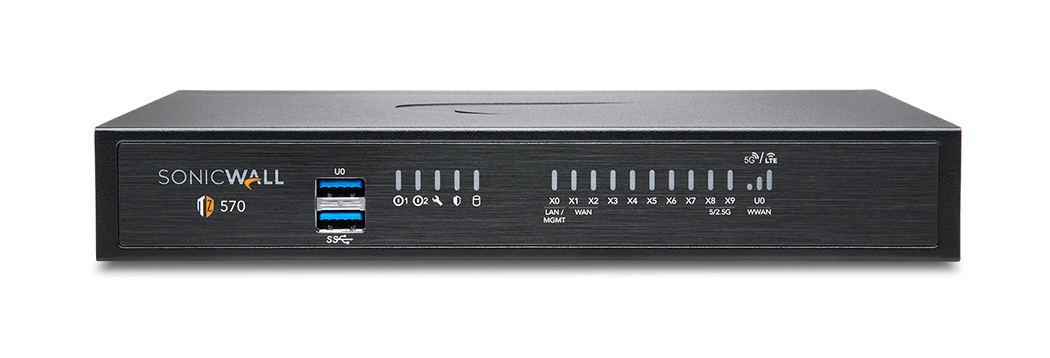

Tz570 Security Appliance Wireless Ac Intl With Secure Upgrade Plus Advanced Edition 2 Years

Data transmission

Firewall throughput

4000 Mbit/s

IPSec VPN throughput

1.8 Gbit/s

IPS/IDS throughput

2500 Mbit/s

SSL inspection throughput

750 Mbit/s

Maximum connections (DPI)

400000

Maximum connections (SPI)

1250000

Maximum firewall connections per second

16000

Performance

Heat dissipation

52.17 BTU/h

Certification

FCC Class B, FCC P15C, FCC P15E, ICES Class B, ISED/IC, CE (RED, RoHS),C-Tick, VCCI Class B, Japan Wireless, UL/cUL, TUV GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, NCC (TW) KCC/MSIP, SRRC, ANATEL

Network

Wi-Fi

Y

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

VPN tunnels quantity

200

Local user database

250

Number of VLANs

256

DHCP server

Y

Quality of Service (QoS) support

Y

Point-to-point protocol over Ethernet (PPPoE)

Y

Number of LAN Access Points (max)

32

Security

Security algorithms

EAP-PEAP, EAP-TTLS, TKIP, WEP, WPA, WPA2

Protocols

Routing protocols

BGP, OSPF, RIP-1, RIP-2

Management features

LED indicators

Y

Ports & interfaces

Connectivity technology

Wired & Wireless

Gigabit Ethernet (copper) ports quantity

8

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Ethernet LAN (RJ-45) ports

8

Ethernet LAN data rates

1000,2500 Mbit/s

Console port

RJ-45

Number of console ports

1

WAN connection

Mobile network (USB)

SFP+ module slots quantity

2

Storage

Total storage capacity

32 GB

Design

Form factor

Desktop

Power

AC input voltage

100-240 V

AC input frequency

50/60 Hz

Power consumption (max)

15.3 W

Power supply

60 W

Redundant power supply (RPS) support

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

225 mm

Depth

150 mm

Height

35 mm

Weight

990 g
