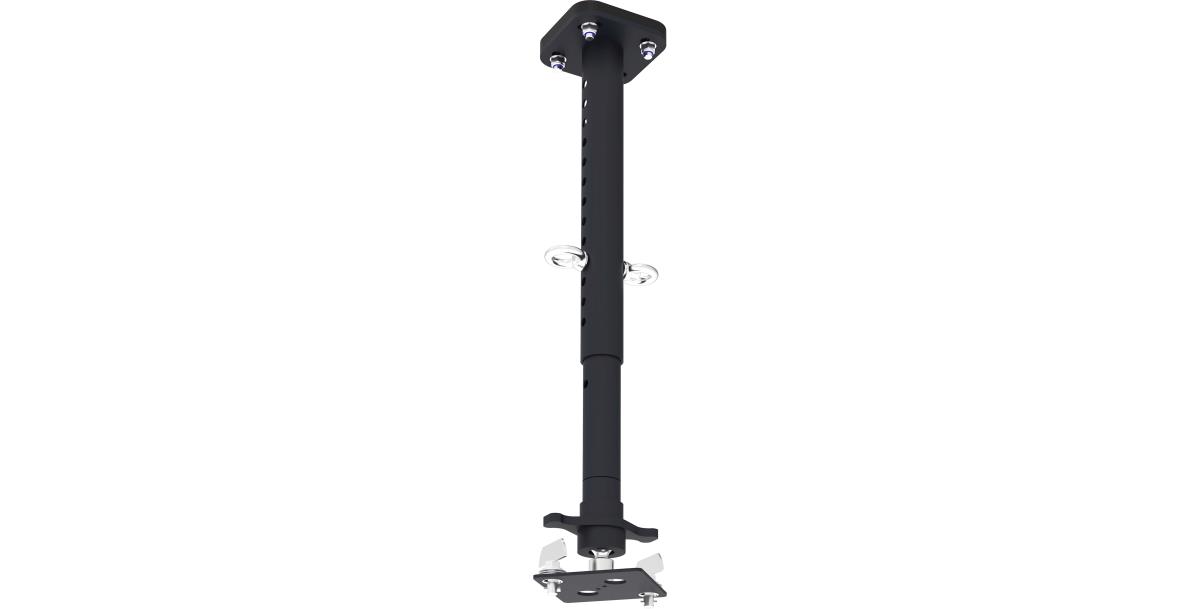

OCMPROS PRO AV Ceiling Mount (short) 450 - 700mm

Introduction

The OCMPROS is a heavy-duty projector ceiling mount for use with the Optoma ZU650/650+/850/1050 range of projectors. Using this mount, you can easily tilt, rotate and swivel the projector thanks to its ball joint type adjustment.

The OCMPROS provides adjustment length between 450 ~ 700mm, and if a shorter mount is required it can be cut to 253mm. The mount features safety eyebolts and is electrically insulated (ideal when mounting from truss), a 25mm cable duct is also provided.

For truss mounting with this product the OCMPROCLAMP trigger clamp attachment is available separately.

Performance

Mounting type

Ceiling

Product colour

Black

Adjustable arm

Y

Height adjustment

Y

Height adjustment range

450 - 700 mm

Angle of rotation

360°

Tilt angle range

-20 - 20°

Compatible products

Optoma ZU650/650+/850/1050

Weight & dimensions

Width

100 mm

Height

450 mm

Depth

100 mm

Weight

2.25 kg
