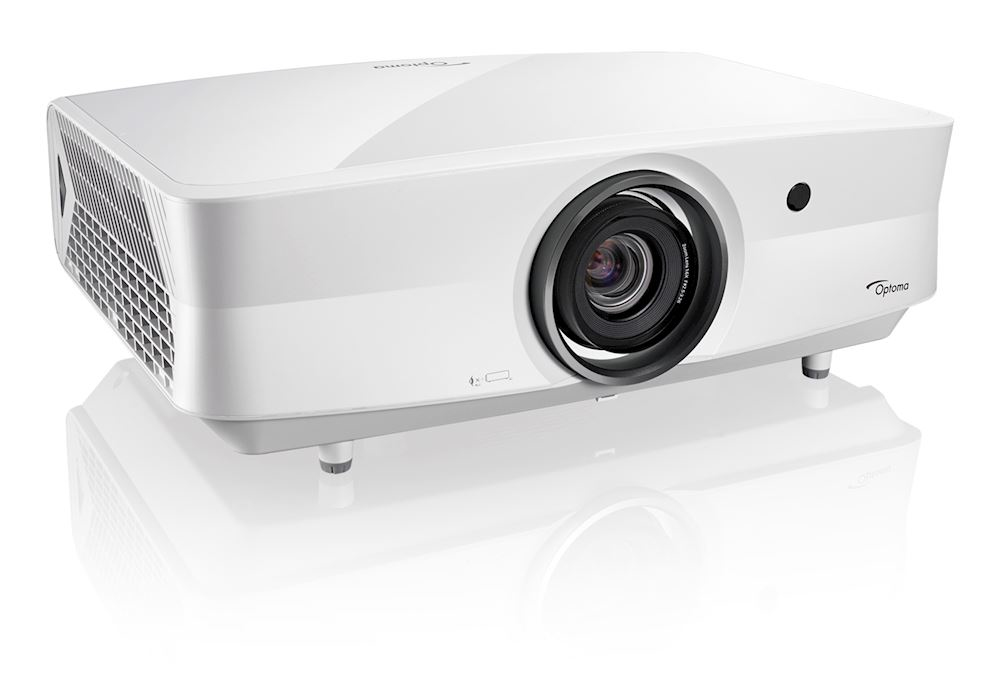

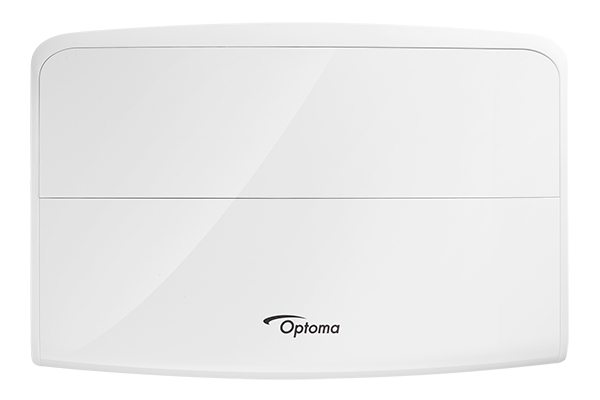

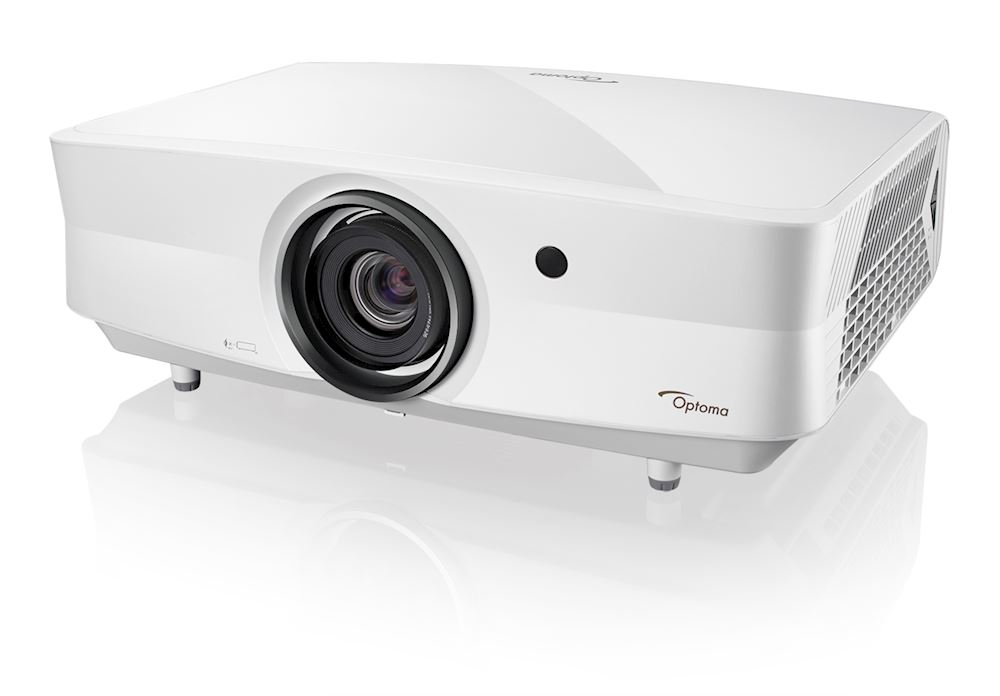

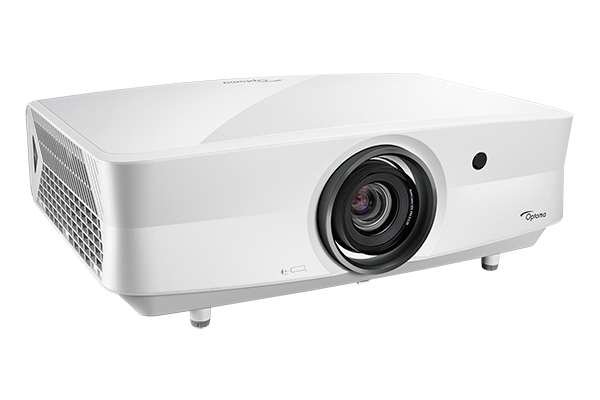

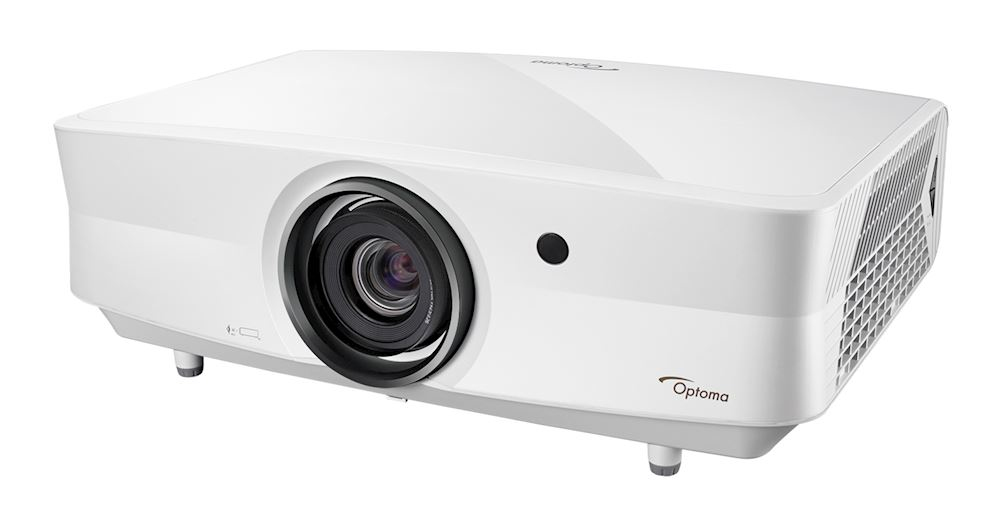

Projector UHZ65LV - DLP UHD 3840x2160 5000 LM

Introduction

Larger-than-life 4K UHD with stunning color and amazing clarity for lights-on viewing

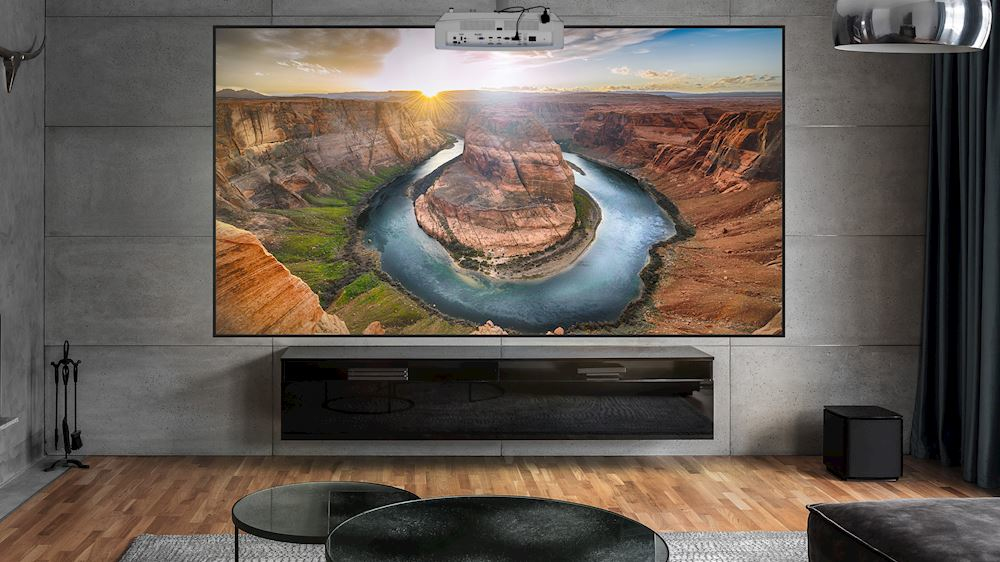

Outfit your home with beautiful, 5,000 lumens and 4K UHD projections with the Optoma UHZ65LV laser projector for home cinemas. Engineered for the ultimate home theater, the incredibly bright DuraCore Laser light source delivers an amazing visual experience at any hour of the day.

Compact size, low weight and quiet operation make it easy to install in any home cinema and enjoyed with minimal noise. The high-performance DLP chipset displays 8.3-million distinct simultaneous pixels on screen and easily projects images up to 302-inches with outstanding details.

Vertical lens shift, 1.6x optical zoom and 12V trigger provide installation flexibility. RS-232C and LAN connectivity enable simple integration and control via industry standards.

4K UHD
4K UHD (3840 x 2160) resolution delivers extremely sharp images with 8.3-million pixels onscreen for unrivaled detail and clarity.

HDR
High dynamic range (HDR) technology delivers brighter whites and deeper black levels. Optoma HDR accepts HDR10 signals with four selectable picture modes: Normal, Bright, Detail, and Film.

DLP Technology®
DLP® (Digital Light Processing) is a proprietary technology from Texas InstrumentsT that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

Full 3D
Display true 3D content from almost any 3D source, including 3D Blu-ray DiscT players, 3D broadcasting, and the latest-generation game consoles. Support for 144Hz rapid-refresh rate provides ultra-smooth flicker-free images. DLP Link 3D glasses required.

PureMotion
Using sophisticated frame-interpolation technology, advanced motion control processing eliminates motion blurring or image judder, even in high-speed action sequences. PureMotion works in 2D and is optimized for 1080p24.

Dynamic Black Technology
This feature gives more depth to your image by smoothly adjusting the lamp output to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.

RS-232 Control
Take control of the projector using HEX or ASCII commands via RS-232 cable.

USB Power
Power and charge your USB devices with the USB power port. The port delivers up to 1-amp and ideal for some HDMI streaming sticks.

Amazing Color
Our projectors are capable of reproducing the Rec.709 color gamut, the international HDTV standard to guarantee accurate reproduction of cinematic color exactly as the director intended.

+12v Trigger
Easily trigger a motorized screen to lower or raise when the projector is powered on or off.

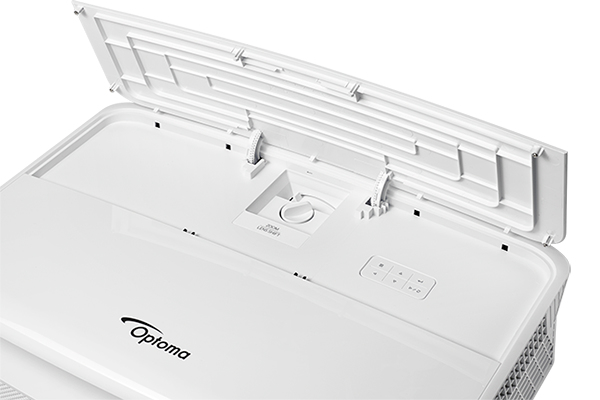

Vertical Lens Shift
Vertical lens shift simplifies installations by shifting the image up and down without image distortion to provide a wider range of projector placement possibilities, making it easier to position the projector in a room.

Direct Power On
Turn on the projector directly from the power source. This feature aids installations that rely on power-on timers. The sleep timer can be used to turn the projector off after a set time.

Projector

Supported aspect ratios

4:3,16:10,16:9

Screen size compatibility

685.8 - 7670.8 mm (27 - 302")

Projection distance

1.3 - 9.5 m

Contrast ratio (dynamic)

300000:1

Projector brightness

5000 ANSI lumens

Projection technology

DMD

Projector native resolution

DCI 4K (4096x2160)

Contrast ratio (typical)

2000:1

Native aspect ratio

16:9

Number of colours

1.073 billion colours

Uniformity

70%

Horizontal scan range

31 - 153 kHz

Vertical scan range

24 - 120 Hz

Matrix size

1.68 cm (0.66")

Light source

Light source type

Laser

Service life of light source

20000 h

Service life of light source (economic mode)

30000 h

Lens system

Focal length range

21 - 33 mm

Aperture range (F-F)

2.5 - 3.26

Zoom ratio

1.6:1

Throw ratio

1.39 - 2.22

Offset

100%

Video

Analog signal format system

NTSC,PAL,SECAM

Full HD

Y

3D

Y

Supported graphics resolutions

640 x 480 (VGA),800 x 600 (SVGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),3840 x 2160,4096 x 2160

Supported video modes

480i,480p,576i,576p,720p,1080i,1080p,2160p

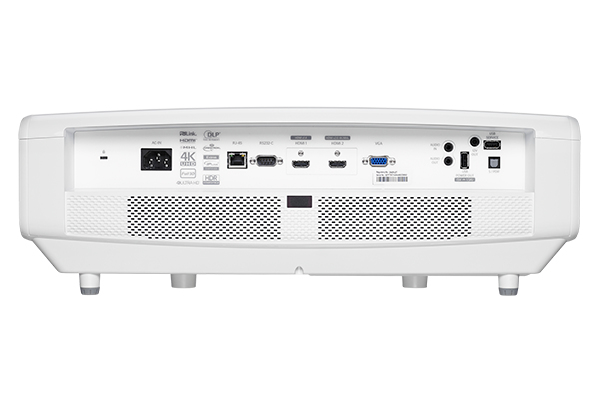

Ports & interfaces

HDMI connector type

Full-size

HDMI version

1.4/2.0

USB 2.0 ports quantity

2

Audio (L/R) in

1

Audio (L/R) out

1

Serial interface type

RJ-45,RS-232

VGA (D-Sub) ports quantity

1

S/PDIF out port

Y

HDMI ports quantity

2

DVI port

N

Network

Smart TV

N

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Wi-Fi

N

Storage

Card reader integrated

N

Features

Noise level

30 dB

Design

Market positioning

Presentation

Product type

Standard throw projector

Product colour

White

Placement

Ceiling, Floor

Cable lock slot

Y

Cable lock slot type

Kensington

Display

Built-in display

N

Power

Power source

AC

Power consumption (typical)

386 W

Power consumption (max)

444 W

Power consumption (economy mode)

285 W

AC input voltage

100-240 V

AC input frequency

50/60 Hz

Operational conditions

Operating temperature (T-T)

5 - 40 °C

Operating relative humidity (H-H)

5 - 85%

Weight & dimensions

Width

497.8 mm

Depth

152.4 mm

Height

330.2 mm

Weight

9.98 kg

Packaging content

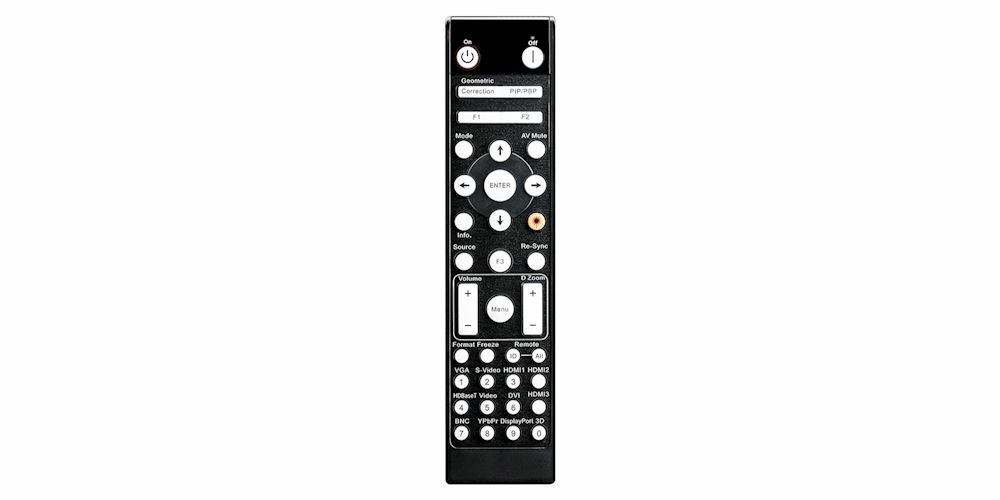

Remote control included

Y

Remote control type

IR
