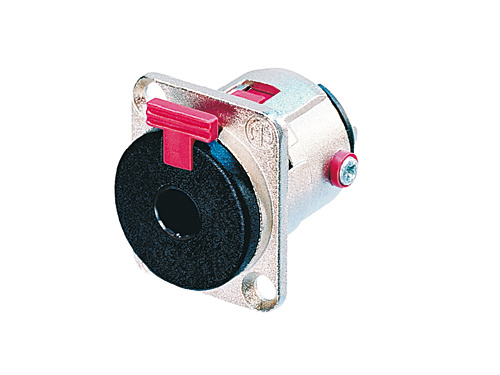

Neutrik - Jack Chassis Connector, 3-pin Female, Silver Plated, Nickel, D-size

Introduction

The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.

Features & Benefits
- Securely locking chassis jack.
- Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge).
- Closable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed.
- Dimensionally compatible with D Series (31 x 26 mm).
- Solder terminals.

Features

Product colour

Black, Red, Silver

Material

Nickel, Polyamide, Polyoxymethylene (POM), Zinc steel

Certification

EIA RS 453, IEC 60603-11, IEC 68-2-20

Weight & dimensions

Width

26 mm

Depth

37 mm

Height

31 mm

Operational conditions

Operating temperature (T-T)

-25 - 70 °C

Packaging content

Quantity per pack

1 pc(s)
