Desktop USB-c Monitor - Multisync Ea271q - 27in - 2560x1440 (wqhd) - Black

Introduction

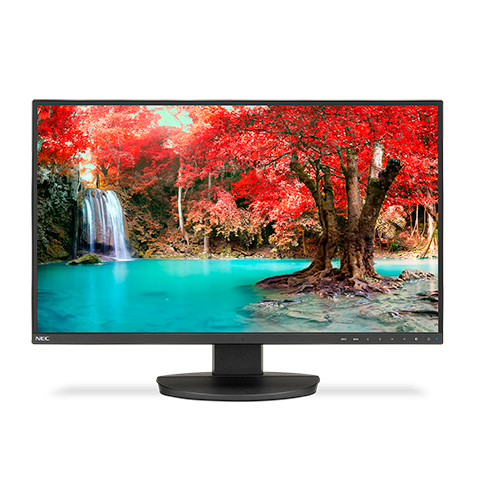

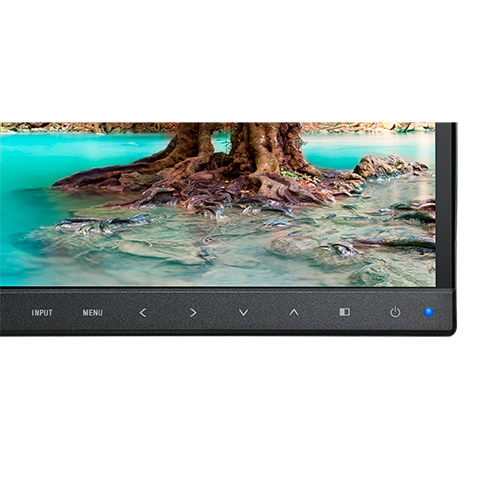

The 27” NEC MultiSync EA271Q is a WQHD LCD designed for multiple-monitor configurations. With 3 bezels measuring only 1.0mm each, this widescreen model features PLS panel technology with wide viewing angles (178° horizontal/vertical) and an LED backlight for a slimmer profile, lighter weight and increased power savings. This model also features a height-adjustable stand and full connectivity with DisplayPort, HDMI and DVI-D inputs as well as a DisplayPort output. In addition, the USB Type-C input can serve as a single connection to a laptop, providing power, video and USB connectivity through one cable. The EA271Q includes touch-sensitive On Screen Display controls, a Picture by Picture (PBP) mode for two inputs onscreen at the same time, streamlined cable management and ControlSync™ technology, which allows users to control the settings of up to six units in a multi-monitor configuration.

Display

Display diagonal

68.6 cm (27")

Display brightness (typical)

350 cd/m²

Display resolution

2560 x 1440 pixels

Native aspect ratio

16:9

Response time

6 ms

HD type

Quad HD

Display technology

LCD

Backlight type

W-LED

Screen shape

Flat

Supported graphics resolutions

2560 x 1440

Contrast ratio (typical)

1000:1

Contrast ratio (dynamic)

7000:1

Maximum refresh rate

60 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.78 million colours

3D

N

Panel type

PLS

Pixel pitch

0.23 x 0.23 mm

Horizontal scan range

31.5 - 94 kHz

Vertical scan range

56 - 75 Hz

Viewable size, horizontal

59.7 cm

Viewable size, vertical

33.6 cm

DDC/CI

Y

sRGB coverage (typical)

100%

NTSC coverage (typical)

74.6%

Adobe RGB coverage

78.3%

Performance

NVIDIA G-SYNC

N

AMD FreeSync

N

Multimedia

Built-in speaker(s)

Y

Number of speakers

2

RMS rated power

2 W

Built-in camera

N

Design

Product colour

Black

Feet colour

Black

Certification

TCP 7.0

Ports & interfaces

Built-in USB hub

Y

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB upstream port type

USB Type-B

Number of upstream ports

1

USB Type-A downstream ports quantity

2

USB Type-C downstream ports quantity

1

DVI port

Y

DVI-D ports quantity

1

HDMI ports quantity

1

DisplayPorts quantity

2

DisplayPort version

1.2

HDCP

Y

Ergonomics

Panel mounting interface

100 x 100 mm

Cable lock slot

Y

Cable lock slot type

Kensington

VESA mounting

Y

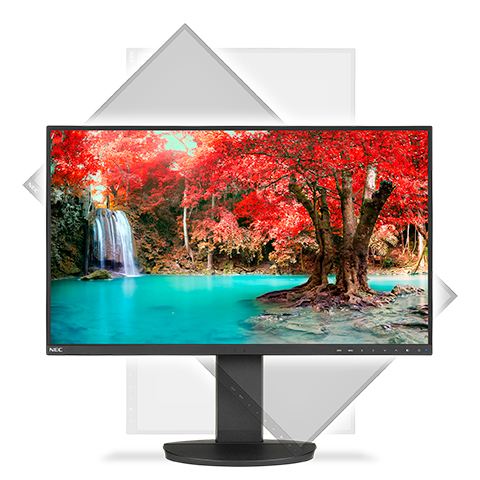

Height adjustment

Y

Height adjustment

15 cm

Pivot

Y

Pivot angle

-90 - 90°

Swivelling

Y

Swivel angle range

0 - 340°

Tiltable

Y

Tilt up angle range

0 - 35°

Tilt down angle range

0 - 5°

On Screen Display (OSD)

Y

Plug and Play

Y

Power

Energy efficiency class (SDR)

E

Energy consumption (SDR) per 1000 hours

21 kWh

Power consumption (typical)

37 W

Power consumption (max)

150 W

Power consumption (PowerSave)

0.29 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

10 - 85%

Operating altitude

0 - 5000 m

Non-operating altitude

5000 - 12192 m

Sustainability

Sustainability certificates

RoHS, ENERGY STAR

Weight & dimensions

Width (with stand)

611.8 mm

Depth (with stand)

150 mm

Height (with stand)

378 mm

Weight (with stand)

9.1 kg

Width (without stand)

61.2 cm

Depth (without stand)

6.72 cm

Height (without stand)

36.2 cm

Weight (without stand)

5.7 kg

Bezel width (side)

1 mm

Bezel width (top)

1 mm

Bezel width (bottom)

1.77 cm

Packaging data

Package width

730 mm

Package depth

217 mm

Package height

475 mm

Package weight

11.8 kg

Other features

AC adapter included

Y

On/off switch

Y

TV tuner integrated

N
