High-end Video Wall Mount With Manual Front Service

Introduction

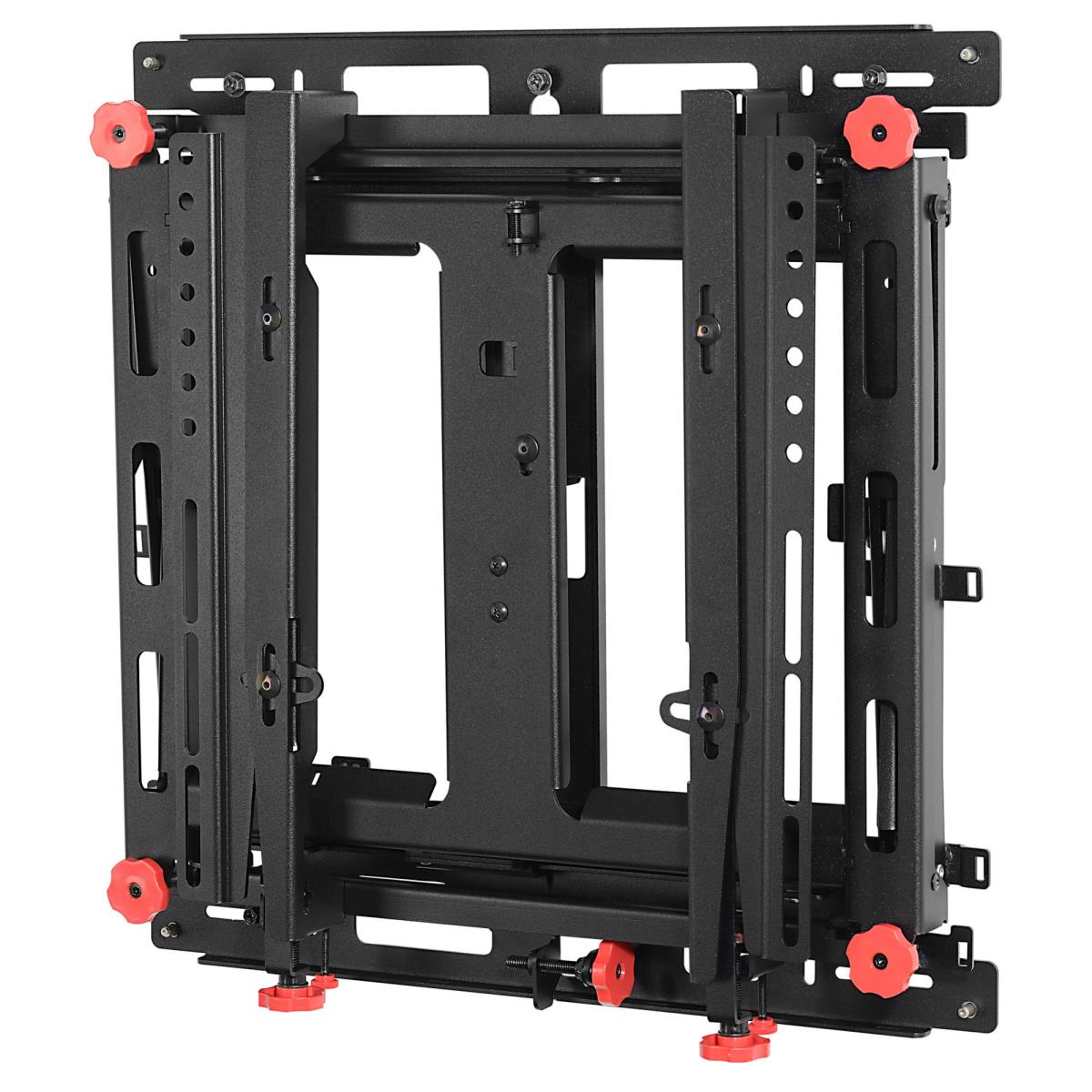

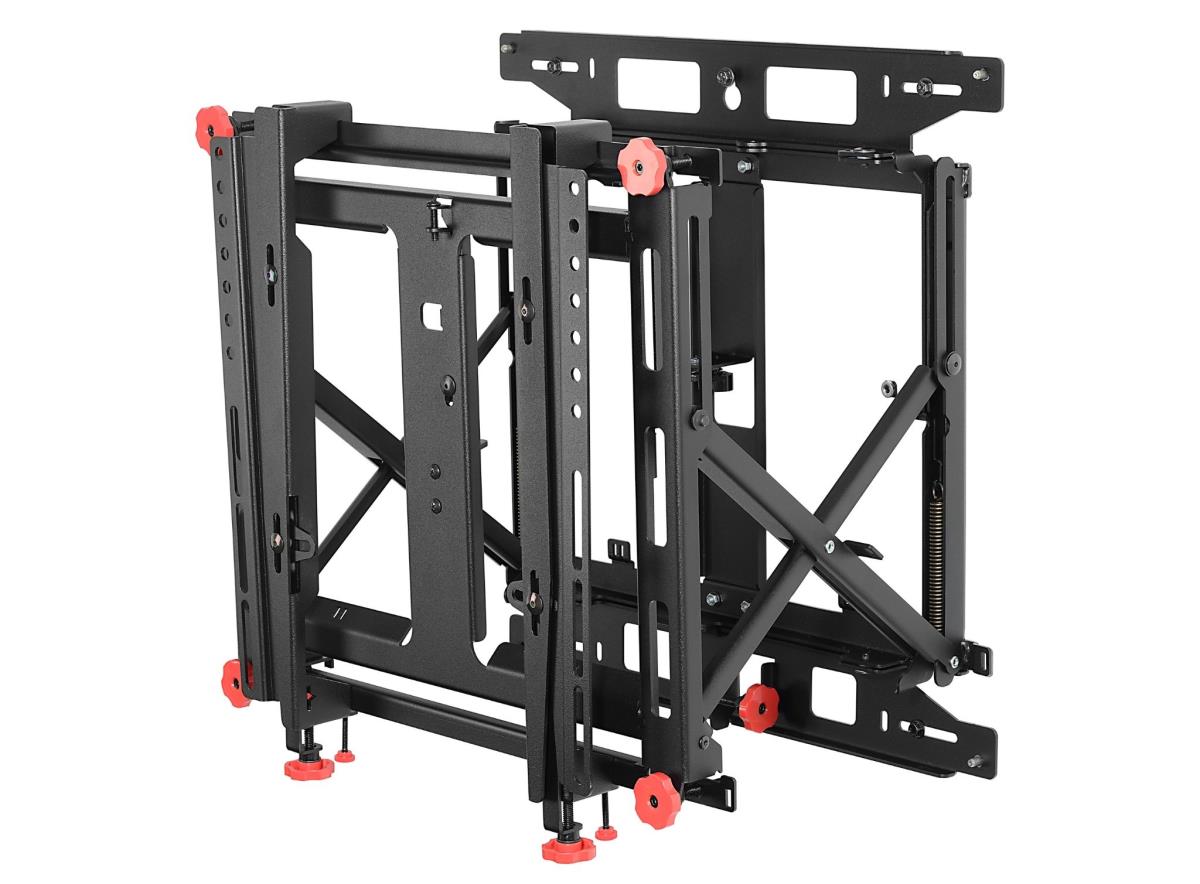

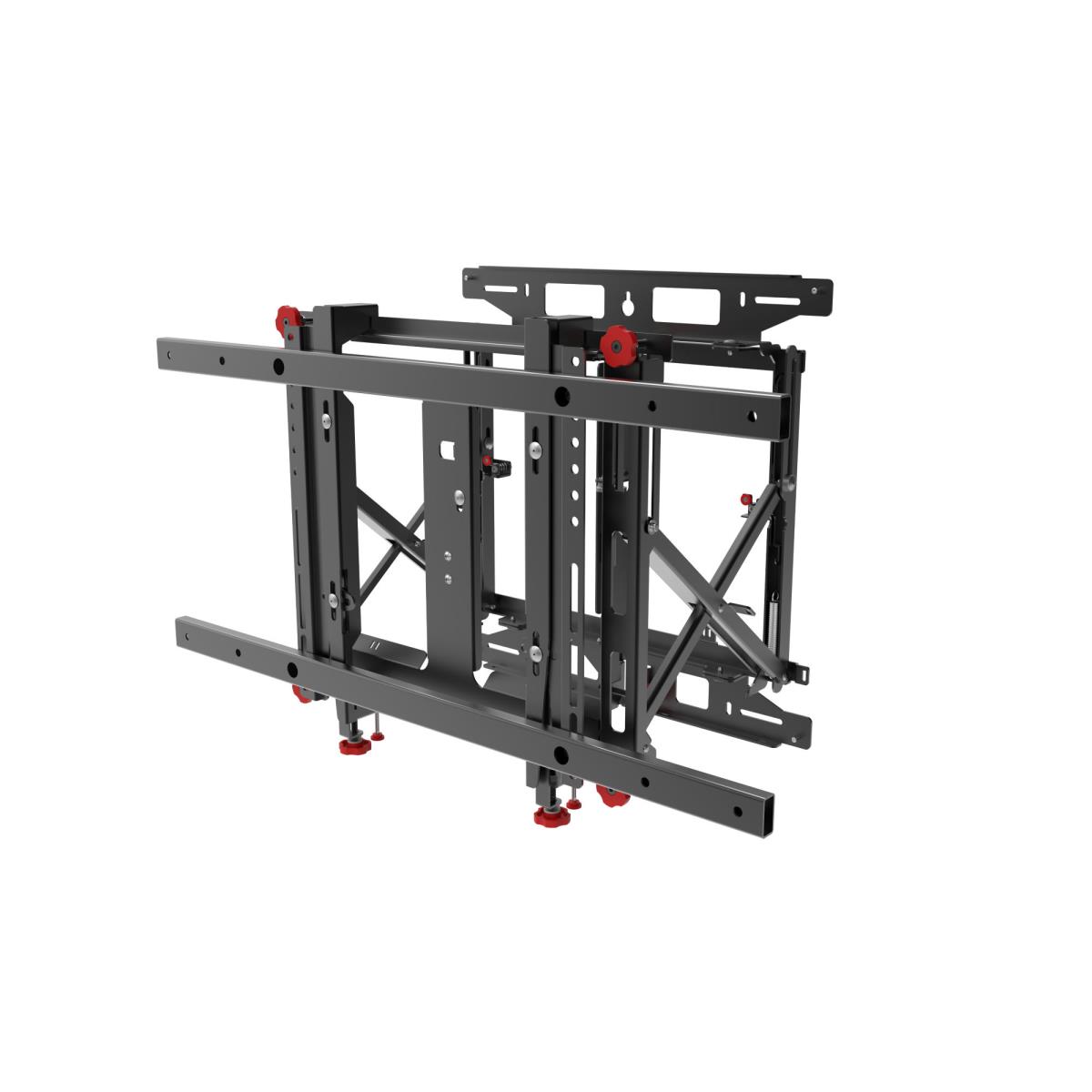

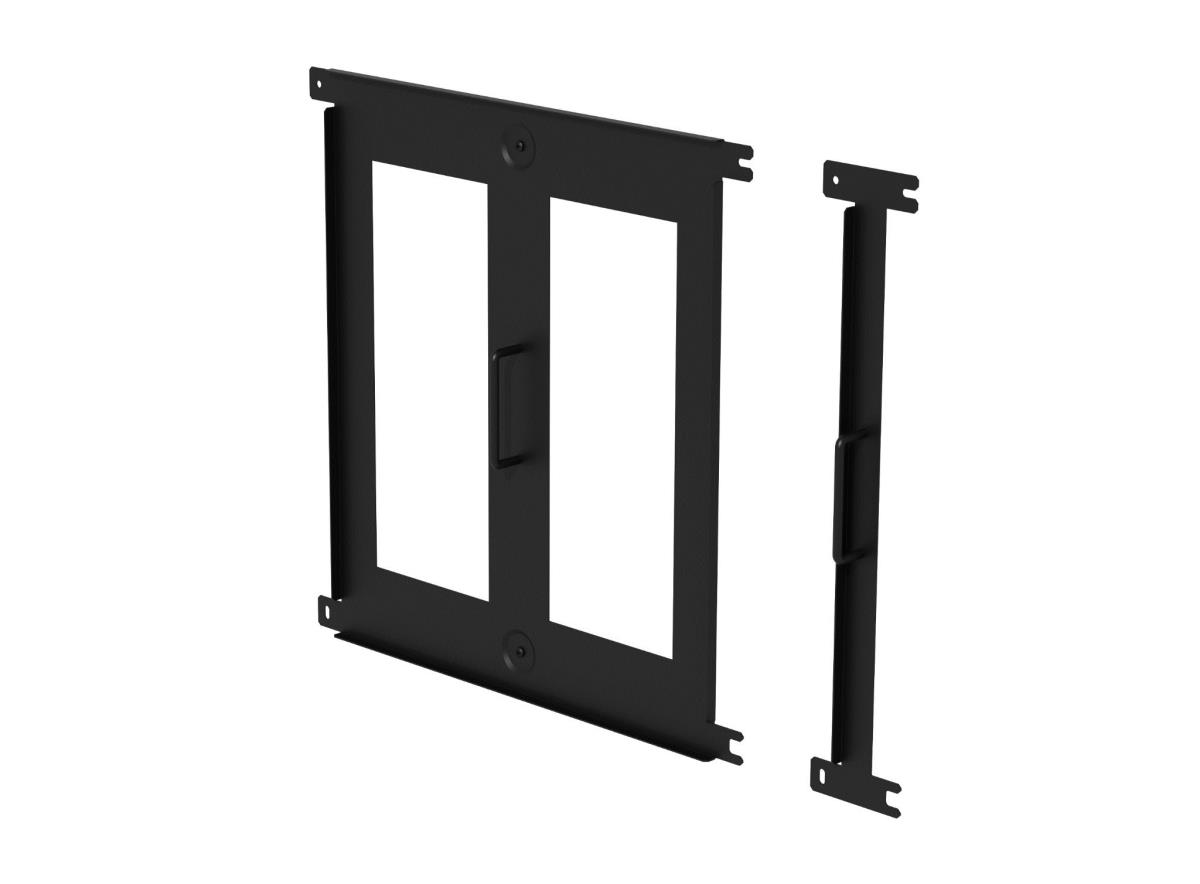

Peerless-AV’s Supreme Full Service Video Wall Mount with Quick Release raises the bar of excellence with an enhanced feature set centered on ease of install and display alignment. With the addition of tool-less lateral micro-adjustment, the Supreme offers 1.5" of fine tune adjustment on each of the X, Y and Z axis. Serviceability is easier than ever before, with a gentle press to release, any display in the video wall configuration can be quickly extended for maintenance. Reusable spacers can be used for both portrait and landscape applications resulting in a faster install and lower cost. Enhanced cable management allows the cables to effortlessly travel in and out with the display, preventing them from getting pinched or pulled loose when extended.

Mounting

Minimum screen size

116.8 cm (46")

Maximum weight capacity

56.8 kg

Maximum screen size

152.4 cm (60")

Mounting type

Wall

Minimum VESA mount

200 x 200 mm

Maximum VESA mount

600 x 400 mm

Panel mounting interface

200 x 200,300 x 300,400 x 400,400 x 300,600 x 400

Number of displays supported

1

Ergonomics

Distance to the wall (min)

8 cm

Distance to the wall (max)

35.1 cm

Design

Product colour

Black

Weight & dimensions

Width

540 mm

Depth

370 mm

Height

545 mm

Weight

15.5 kg

Packaging data

Package width

771 mm

Package depth

114 mm

Package height

600 mm

Package weight

17.4 kg

Technical details

Sustainability certificates

RoHS
