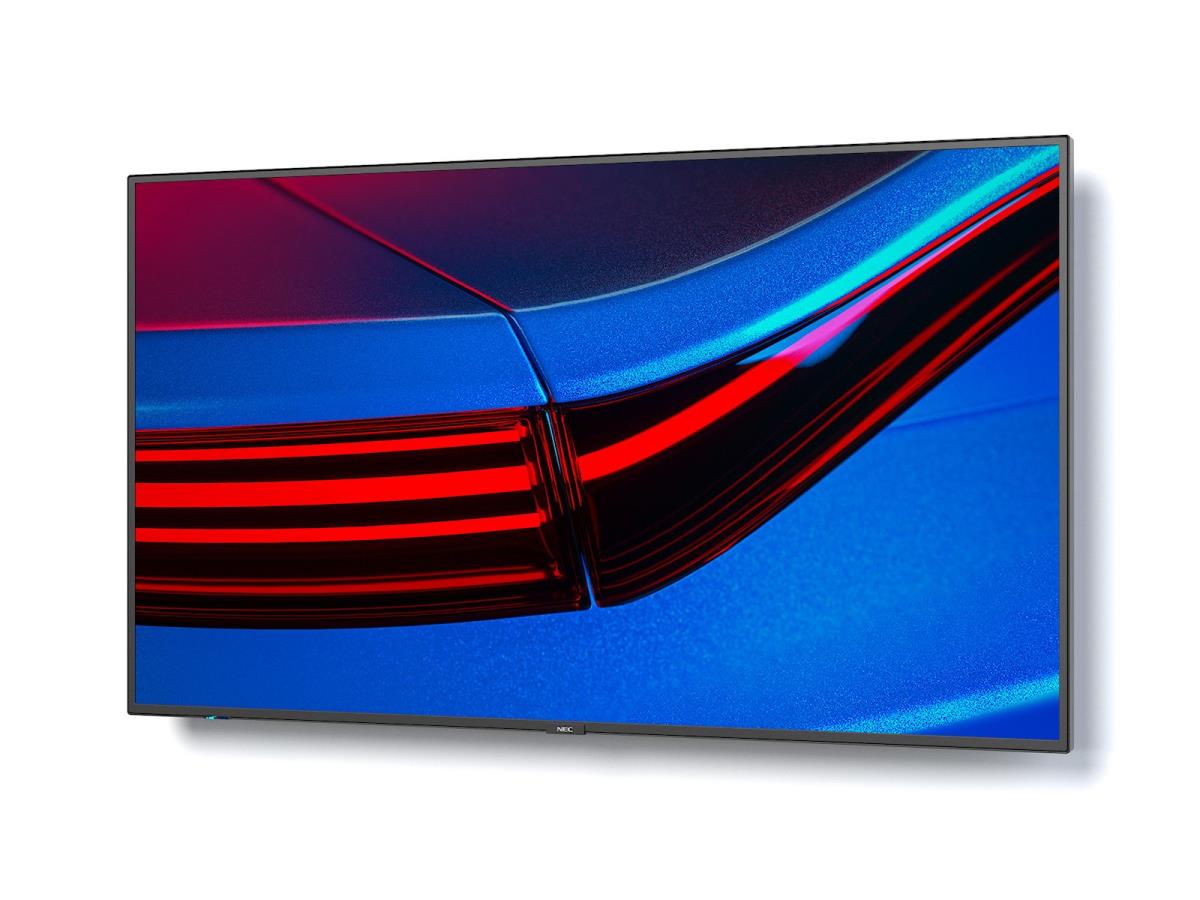

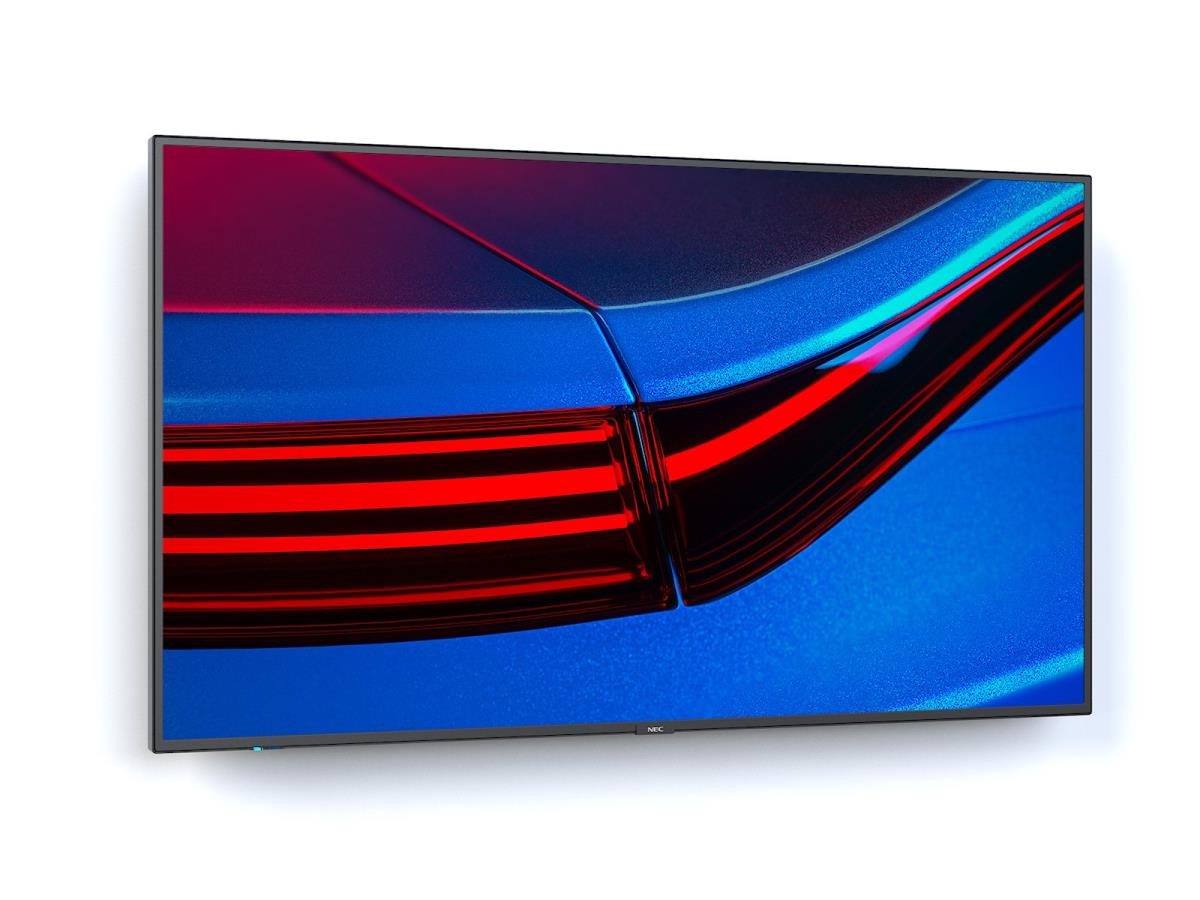

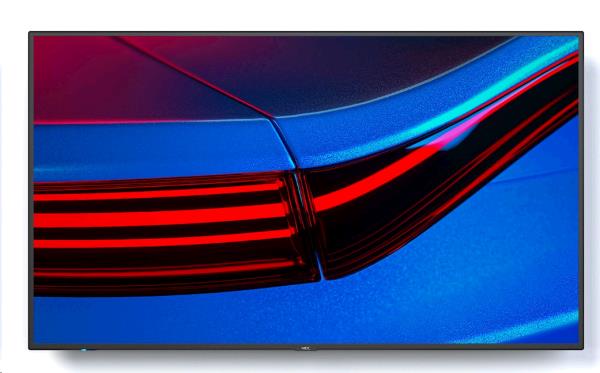

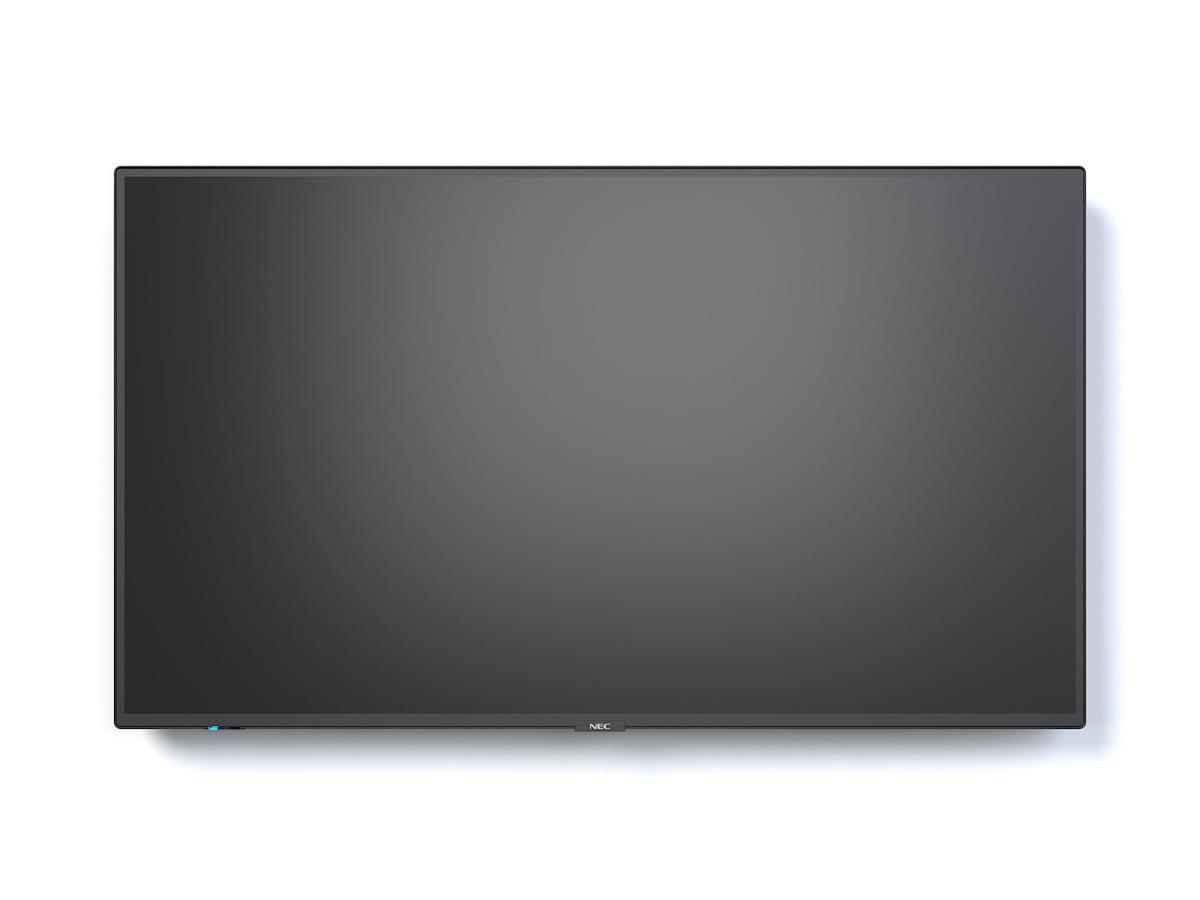

Large Format Display - Multisync P435 - 43in

Introduction

Create pixel-perfect imagery with the high-end panel quality of the fully professional NEC M321 large format display. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs.

Specifications

Display
Display number of colours	1.073 billion colours
LED backlighting type	Edge-LED
Display technology	IPS
Display diagonal	109.2 cm (43")
Display resolution	3840 x 2160 pixels
Display brightness	700 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	8000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display diagonal (metric)	108 cm
Vertical scan range	23 - 76 Hz
Native aspect ratio	16:9
Horizontal scan range	15 - 135 kHz
Native refresh rate	60 Hz
Haze rate	28%

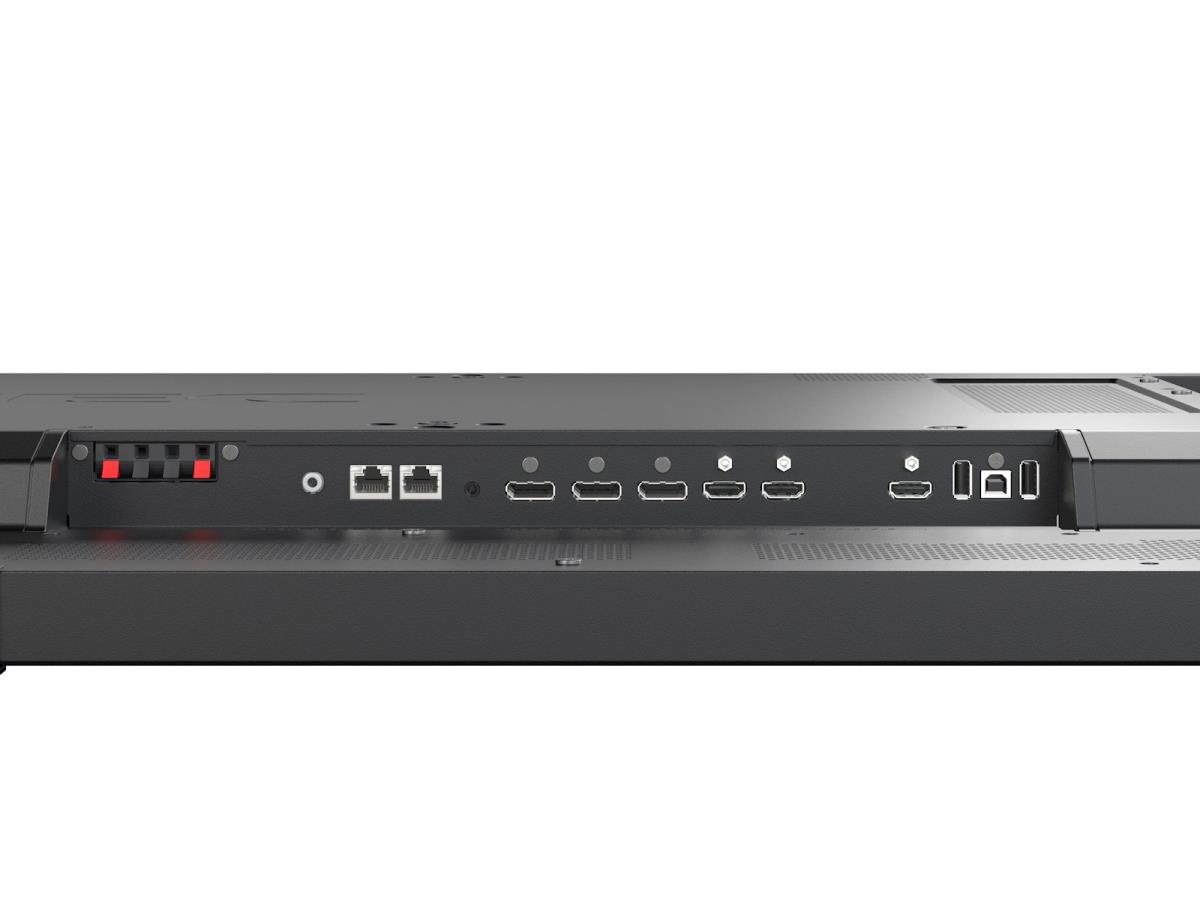

Ports & interfaces
USB port	Yes
DisplayPorts quantity	2
Ethernet LAN	Yes
HDMI ports quantity	2
Ethernet LAN data rates	100 Mbit/s
Audio (L/R) out	1
Ethernet LAN (RJ-45) ports	1
USB version	2.0
USB ports quantity	3
Design
Product design	Digital signage flat panel
Placement supported	Indoor

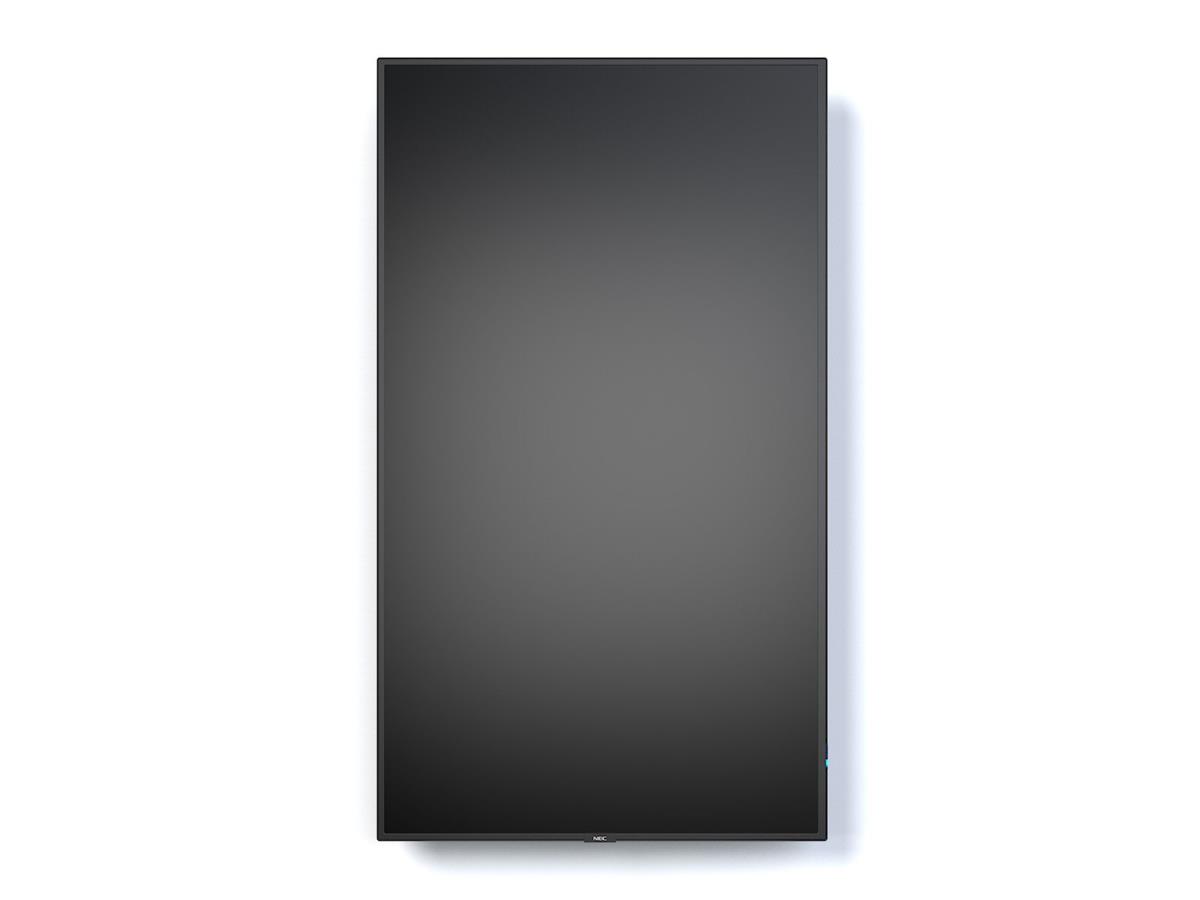

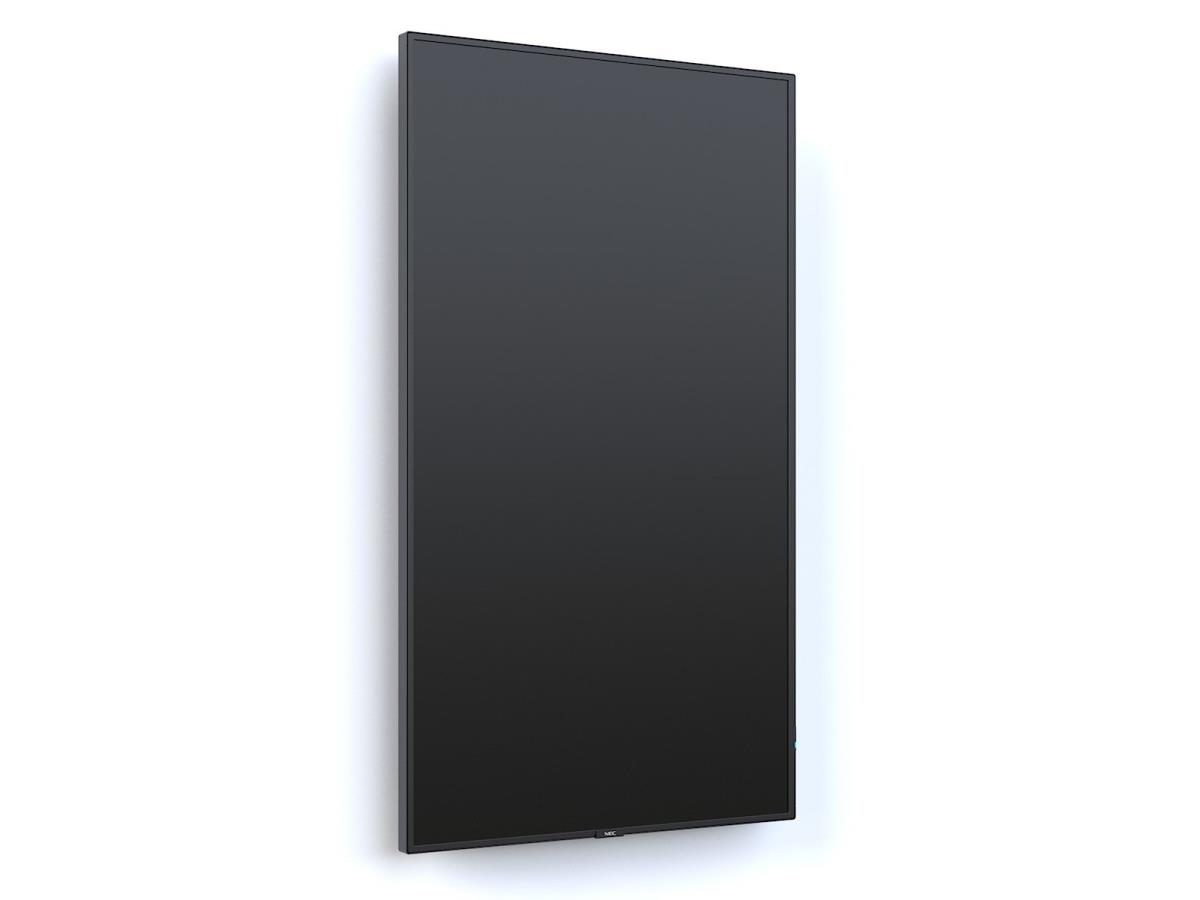

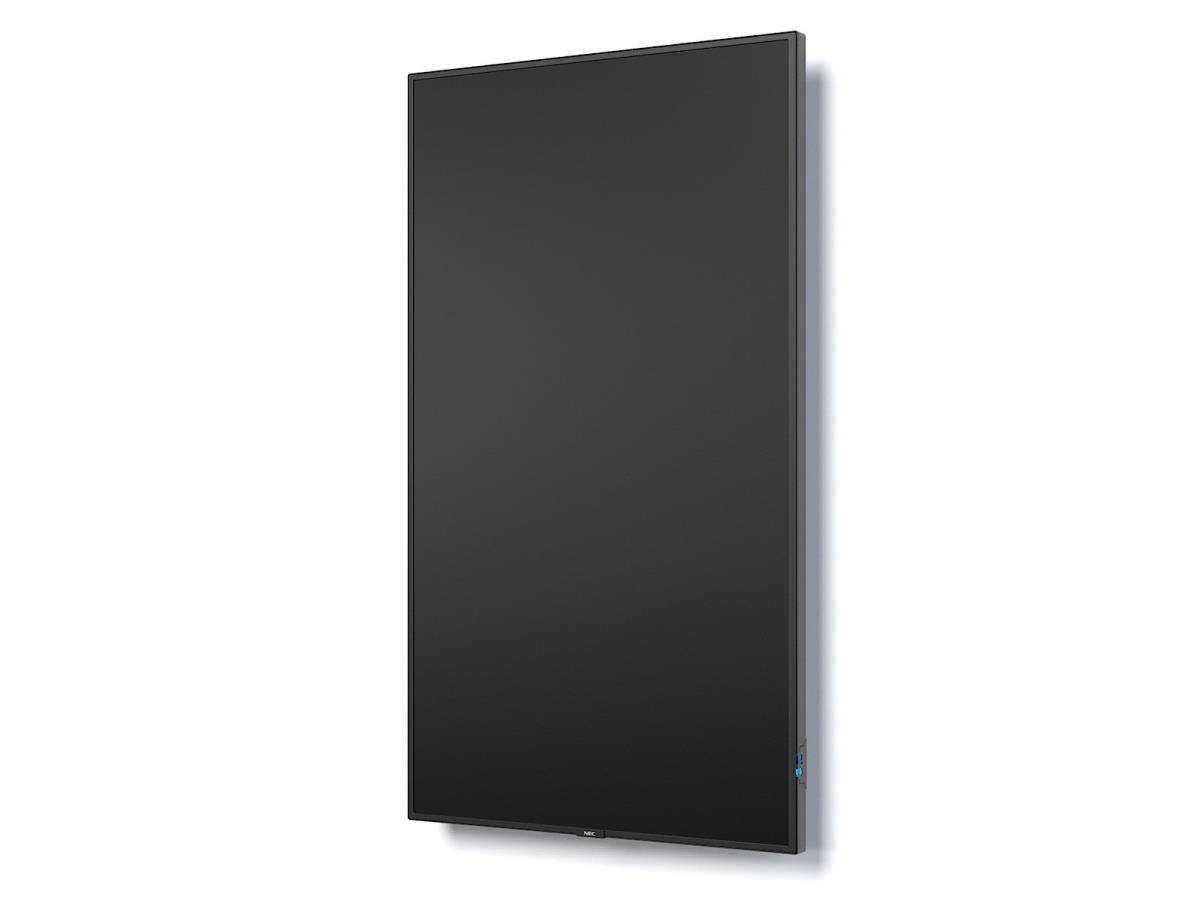

Orientation	Horizontal/Vertical
Bezel width (top)	1.1 cm
Bezel width (side)	1.1 cm
Bezel width (bottom)	1.56 cm
Product colour	Black

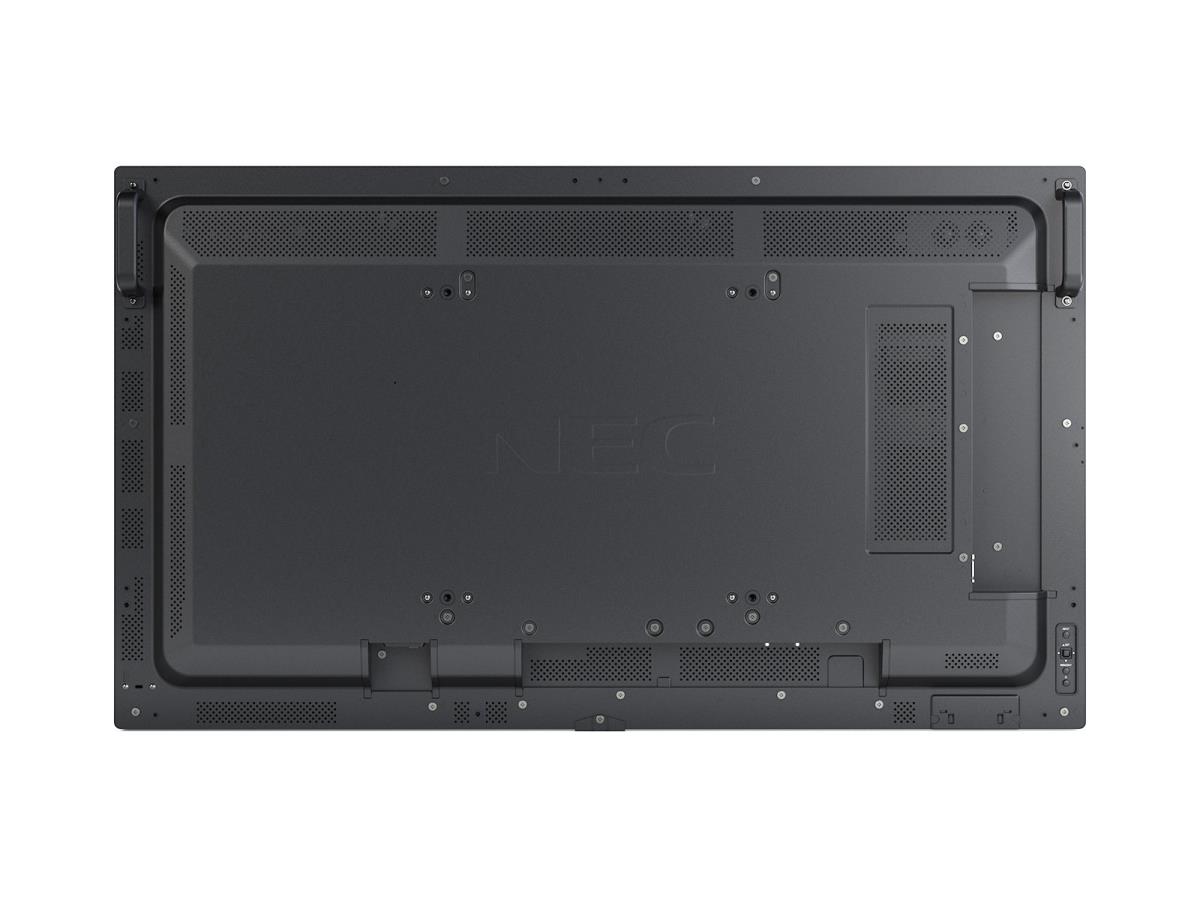

Panel mounting interface	300 x 300 mm
VESA mounting	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X, IP2X
Ambient light sensor	Yes
Picture-in-Picture	Yes
HDCP	Yes
Power
Power consumption (typical)	90 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	87 kWh
Energy consumption (HDR) per 1000 hours	87 kWh
Weight & dimensions
Display width	968.2 mm
Display depth	67.1 mm
Display height	561 mm
Display weight	18.5 kg
