Large Format Display - Multisync Ma491-mpi4 - 49in

Introduction

When true-to-life colour rendition is essential, the MultiSync MA Series’ advanced feature set delivers calibrated precision, without compromise. For specialist applications, the wide colour gamut panel, SpectraView engine technology and 8K signal processing, positions the MultiSync MA-MPi4 series at the high end of professional content delivery.

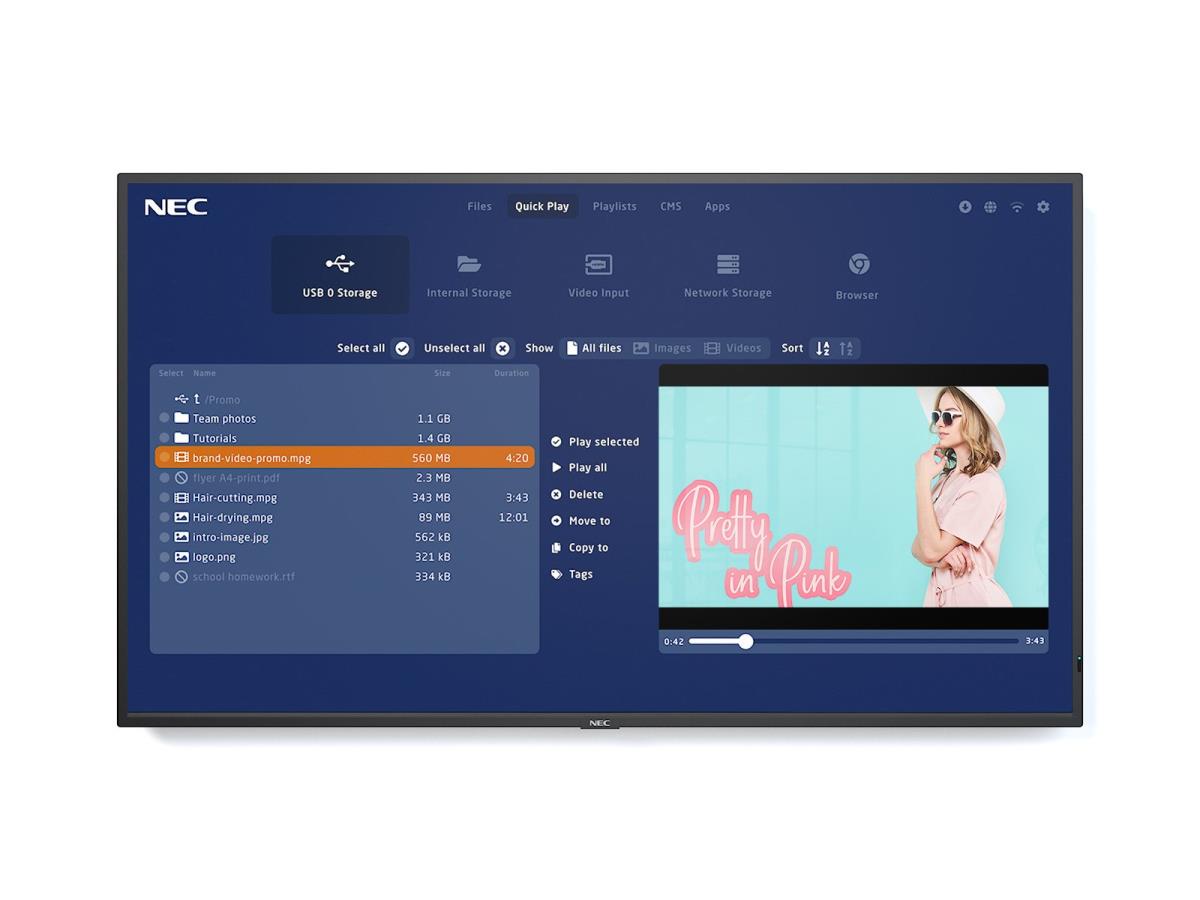

Future-proof and upgradable, the NEC MediaPlayer software is powered by a pre-installed modular SoC Raspberry Pi module. Enabling remote operation of single and multiple display installations, benefit from flexible usage of many media types and a scheduling function for smart content management. For specific feature demands, the NEC MediaPlayer grants easy switching to the integrated Content Management Systems directly.

Display

Panel type

IPS

LED backlight

Yes

LED backlighting type

Edge-LED

Display diagonal

124.5 cm (49")

Display technology

LCD

Display resolution

3840 x 2160 pixels

Display brightness

500 cd/m²

HD type

4K Ultra HD

Native aspect ratio

16:9

Response time

8 ms

Contrast ratio (typical)

8000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.073 billion colours

Display diagonal (metric)

124 cm

Horizontal scan range

15 - 135 kHz

Vertical scan range

23 - 76 Hz

Native refresh rate

60 Hz

Haze rate

28%

Ports & interfaces

HDMI ports quantity

3

HDMI input ports quantity

2

HDMI output ports quantity

1

DisplayPorts quantity

3

DisplayPorts in

2

DisplayPorts out

1

USB port

Yes

USB ports quantity

3

USB version

2.0

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Ethernet LAN data rates

100 Mbit/s

Audio (L/R) out

1

RS-232 interface

Yes

Design

Product design

Digital signage flat panel

Placement supported

Indoor

Orientation

Horizontal/Vertical

Product colour

Black

VESA mounting

Yes

Panel mounting interface

300 x 300 mm

Bezel width (bottom)

1.56 cm

Bezel width (side)

1.25 cm

Bezel width (top)

1.2 cm

Performance

Purpose

Universal

Ambient light sensor

Yes

Operating hours (hours/days)

24/7

HDCP

Yes

International Protection (IP) code

IP5X, IP2X

Power

Power consumption (typical)

85 W

Power consumption (standby)

2 W

Power consumption (off)

0.5 W

Energy efficiency class (SDR)

G

Energy efficiency class (HDR)

G

Energy consumption (SDR) per 1000 hours

102 kWh

Energy consumption (HDR) per 1000 hours

95 kWh

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Computer system

Computer system

Yes

Built-in processor

Yes

Processor family

ARM Cortex

Processor model

A72

Internal storage capacity

32 GB

Weight & dimensions

Display width

1103.4 mm

Display depth

61.1 mm

Display height

636.2 mm

Display weight

22.9 kg

Packaging data

Package width

1120 mm

Package depth

203 mm

Package height

700 mm

Package weight

29.8 kg

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-20 - 60 °C

Storage relative humidity (H-H)

10 - 90%

Logistics data

Harmonized System (HS) code

85285210
