MICROCHIP TECHNOLOGY
1Port PoE Midspan 15.4W UK AC Input Power Cord

1Port PoE Midspan 15.4W UK AC Input Power Cord

Part Number:
PD-3501G/AC-UK
Language:
UK
 Without VATWith VAT
Base Price:€35,80€43,32
Recupel:+ €0,10+ €0,12
Total:€35,90€43,44

Introduction

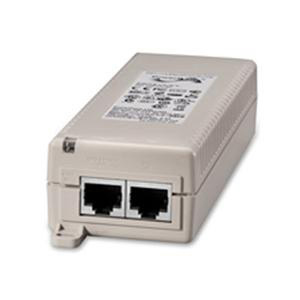

PowerDsine's 3501G Power over Ethernet (PoE) single port Midspan (PoE injector) offers a compact and cost effective, fully IEEE 802.3af compliant solution for IP phones, WLAN access points, network cameras and other IP terminal installations.

The 3501G PoE midspan offers compact, affordable and reliable power over standard Ethernet cables, leaving network infrastructure completely unaltered.

With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.

Network

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Cabling technology

10/100/1000BaseT

Compliance industry standards

802.3af

Features

LED indicators

Y

Electromagnetic compatibility

FCC Part 15, Class B EN 55022 Class B EN 55024, VCCI

Safety

UL/cUL per EN 60950-1, GS Mark Per IEC 60950-1

Certification

RoHS WEEE CE

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Power

Power over Ethernet (PoE) voltage

48 V

Input voltage

90 - 264 V

Input frequency

47 - 63 Hz

Input current

0.5 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage temperature (T-T)

-20 - 70 °C

Storage relative humidity (H-H)

5 - 95%

Operating altitude

-304.8 - 3048 m

Weight & dimensions

Weight

200 g

Dimensions (WxDxH)

53 x 140 x 32.5 mm

No options for this product
