Hdbaset Presentation System With Control Keypad

Introduction

Easily creates smart, autonomous presentation or education spaces_x000D_
The system comprises of a control keypad, multi-AV transmitter & HDBaseT receiver_x000D_
70m HDBaseT connection allows for a simple and flexible installation with PoH_x000D_
Analogue audio extraction supplies immersive audio to external speakers_x000D_
2 year warranty_x000D_
_x000D_

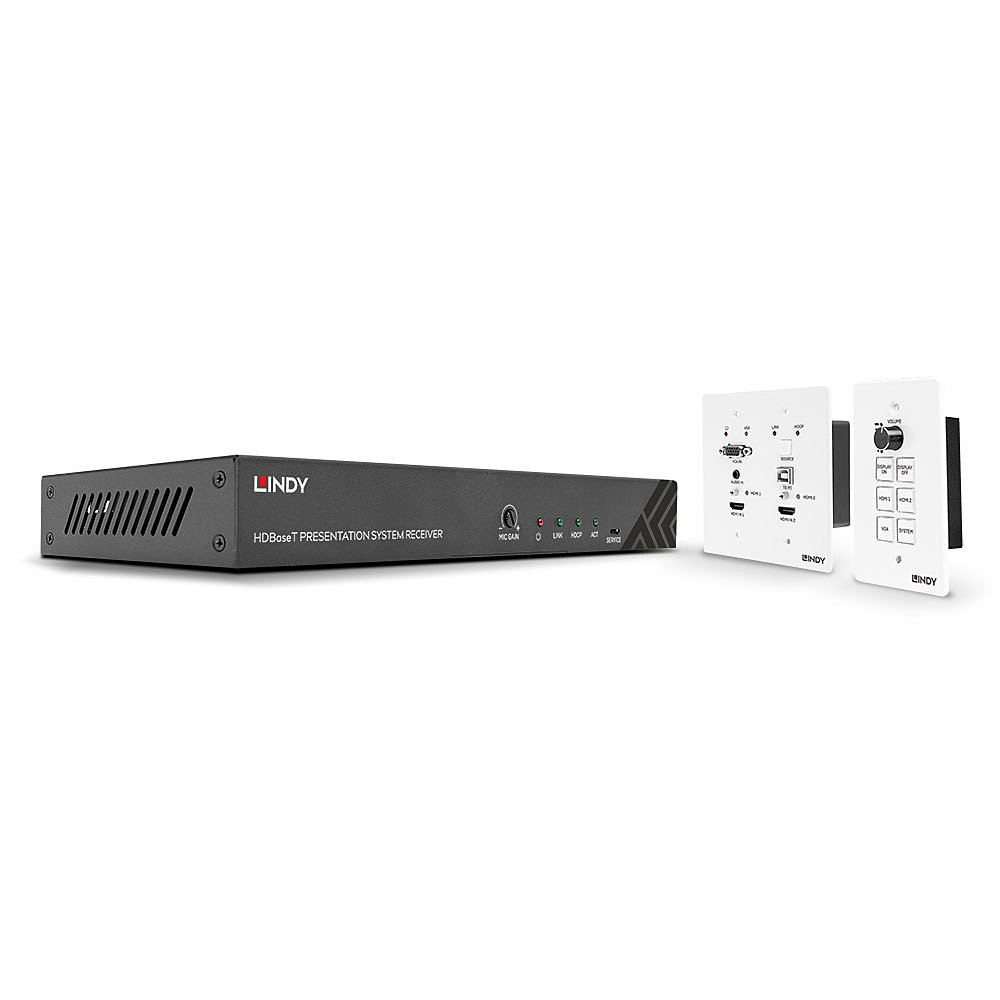

The Lindy HDBaseT Presentation System is a powerful presentation system that allows three source devices to be connected to a remote display at up to 70 metres. This device uses three key components that create smart, autonomous presentation, education or collaboration spaces._x000D_
_x000D_
An HDBaseT multi-AV transmitter with support for HDMI, VGA with audio and USB inputs which can be surface mounted. An HDBaseT receiver with dual channel analogue audio extraction, microphone input, RS232 and USB control from an interactive board, designed for discreet installation. Finally, a separate wall mounted room control panel is included to quickly switch between input devices, adjust volumes and power on or off the display._x000D_
_x000D_
Both the multi-AV transmitter and control panels are both designed using PoH (power over HDBaseT) which provides power to both units alongside data using a standard Cat.6 network cable. This removes complexity from installations by allowing a single power supply to provide power to the entire system._x000D_
_x000D_
4K UHD video, multi-channel & digital audio formats including DTS-X & Dolby Atmos can be transmit 40m (131.23ft) over a single HDBaseT connection allowing the receiver can be conveniently placed in a wall or ceiling cavity depending on the locations of other connected devices such as a display, projector, sub-woofers and speakers. Distances up to 70m (229.66ft) are possible with 1080p video signals._x000D_
_x000D_
The inclusion of a relay port on the receiver allows room automation with devices such as a motorised projector screen or lighting to be configured to trigger once video devices are connected or disconnected._x000D_
_x000D_
Using reliable HDBaseT technology, single cable installation and PoH means this system is perfectly suited for education in a classroom or training room environment. Control over this system is managed through not only the wall plate, but also from a web GUI which is freely available on any device occupying the same network, including mobile devices. This can be used to switch or set a video input, display device connection status’, determine when the relay device is used and much more._x000D_
_x000D_
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance._x000D_
_x000D_
Please note: The Transmitter Wall Plate requires a double gang US Style backbox and the Control Wall Plate requires a single gang US style backbox, both with hole spacing of 8.33cm (3.281")_x000D_

Features

Type

AV transmitter & receiver

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat5e,Cat6

Maximum transfer distance

70 m

Chipset

VS210

Maximum refresh rate

30 Hz

Extended display identification data (EDID)

Y

IR pass-through

N

HDCP pass-through

Y

CEC pass-through

Y

Bandwidth

10.2 Gbit/s

HDCP

Y

Material

Metal

Product colour

Black, White

Certification

CE, FCC, RoHS & REACH

Ports & interfaces

Connectivity technology

Wired

RJ-45 input ports

1

RJ-45 output ports

1

HDMI in

2

Number of HDMI outputs

1

HDMI version

2.0

USB ports quantity

2

USB connector type

USB Type-A, USB Type-B

RS-232 input ports

1

VGA (D-Sub) ports quantity

1

Audio output

1

3.5 mm (1/8-inch) in

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 90%

Weight & dimensions

Weight

1.23 kg

Receiver dimensions (WxDxH)

250 x 104 x 30 mm

Transmitter dimensions (WxDxH)

115.9 x 114.3 x 38.7 mm

Packaging data

Package width

300 mm

Package depth

275 mm

Package height

110 mm

Package weight

2.14 kg

Package type

Box

Packaging content

AC adapter included

Y

Technical details

Sustainability certificates

RoHS
