SSD - Dc600m - 1920GB - SATA 3 - 2.5in - Aes 256-bit Encryption

Introduction

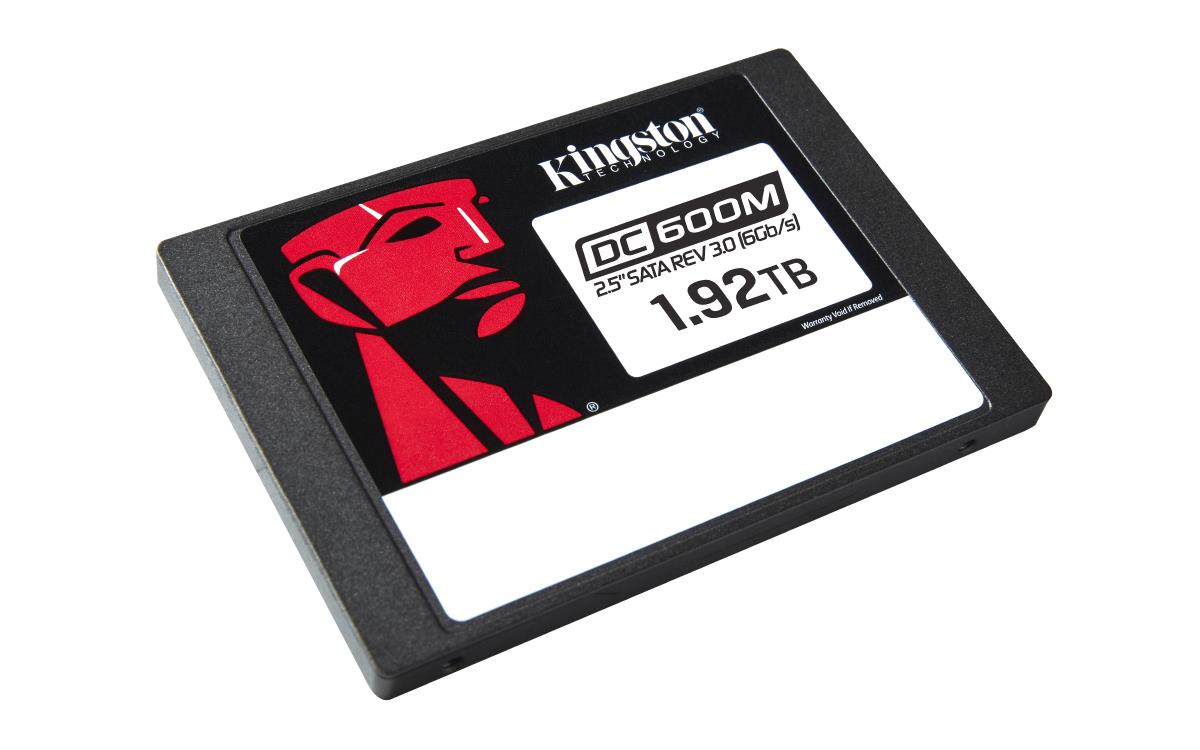

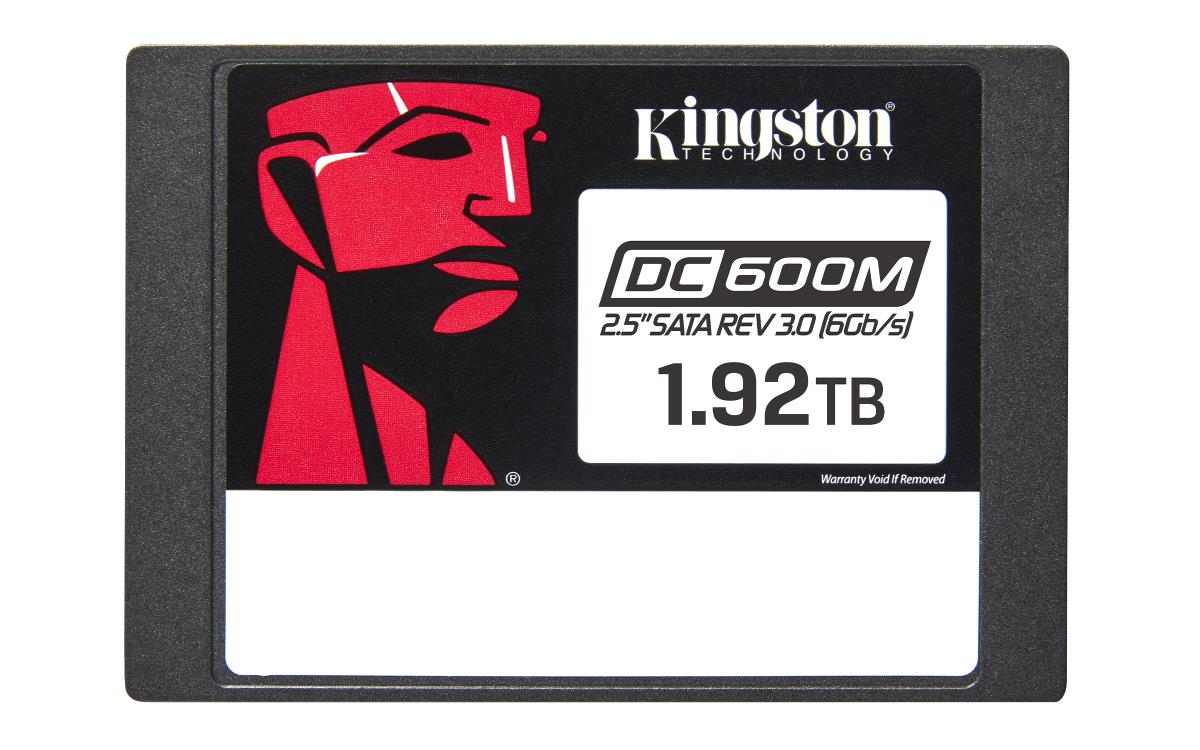

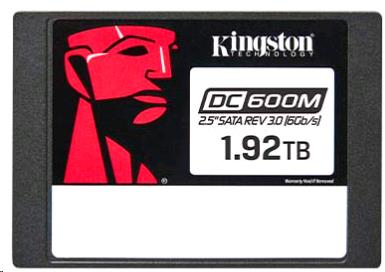

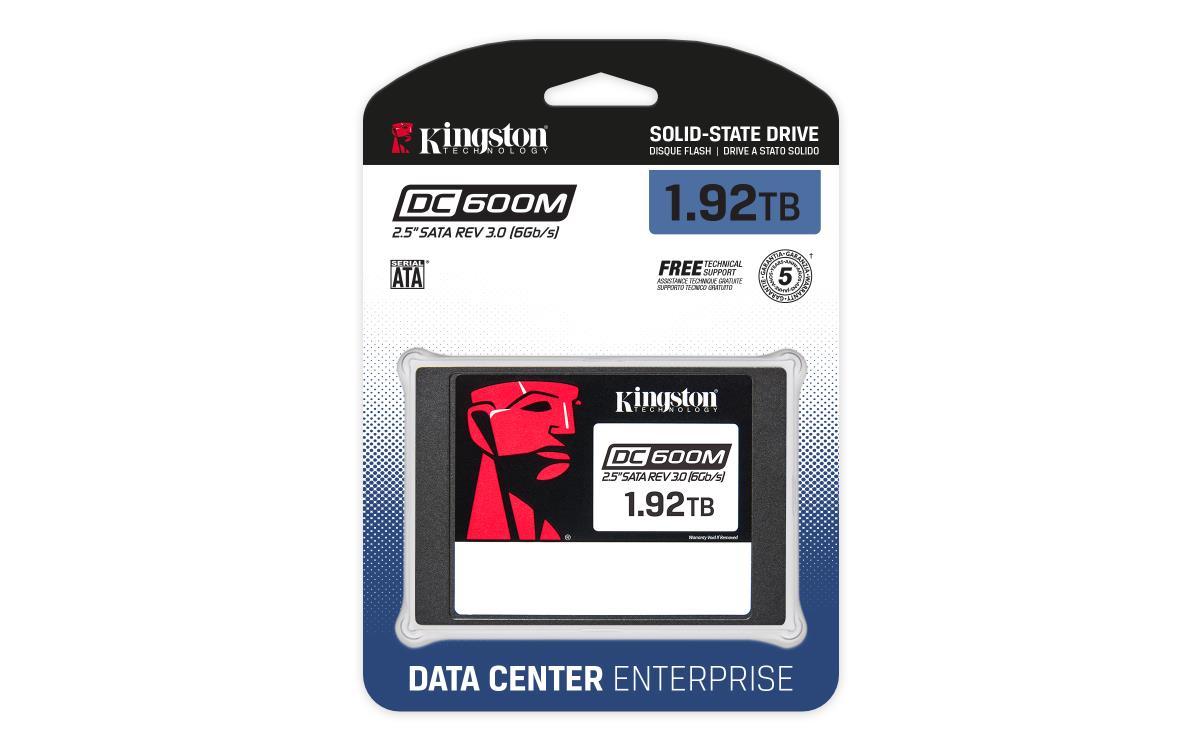

DC600M 2.5” SATA Enterprise SSD 6Gbps SATA 3.0 storage for mixed-use workloads
Kingston’s DC600M SSD is a fourth-generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for “mixed use” workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware-based on-board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re-initialise on the next power-up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers and cloud service providers.

Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.

Delivers excellent quality of service (QoS)
Optimised performance predictability to meet service-level agreements (SLAs).

AES 256-bit self-encrypting drive
Built-in protection to safeguard important data.

Capacities up to 7680GB
Upgrade and manage storage with capacities up to 7680GB.

Features

Security algorithms

256-bit AES

SSD form factor

2.5"

SSD capacity

1920 GB

Interface

Serial ATA III

Memory type

3D TLC NAND

Component for

Server/workstation

Hardware encryption

Y

Target workload

Mixed Use (MU)

Data transfer rate

6 Gbit/s

Read speed

560 MB/s

Write speed

530 MB/s

Random read (4KB)

94000 IOPS

Random write (4KB)

78000 IOPS

Read latency

200 µs

Write latency

30 µs

Hot-Plug support

Y

H/W PLP function

Y

Mean time between failures (MTBF)

2000000 h

TBW rating

3504

Use conditions

Server/Enterprise

Power

Power consumption (write)

1.6 W

Power consumption (max)

3.6 W

Power consumption (average)

1.45 W

Power consumption (idle)

1.3 W

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating vibration

2.17 G

Non-operating vibration

20 G

Weight & dimensions

Width

69.9 mm

Depth

7 mm

Height

100 mm

Weight

92.34 g
