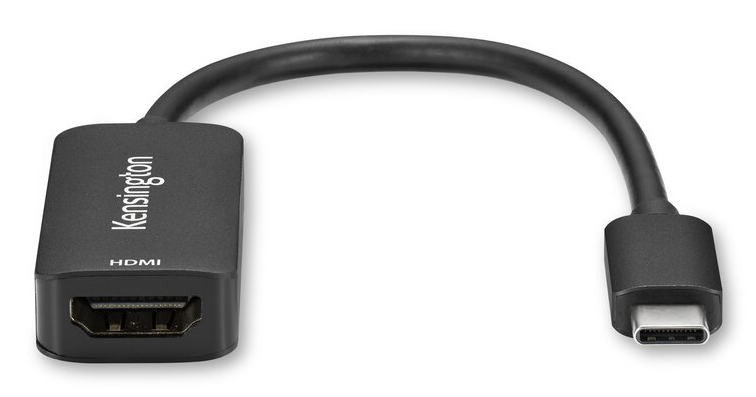

CV4200H USB-C 4K/8K HDMI Adapter

Introduction

Get the most from any HDMI-enabled display with the CV4200H USB-C 4K/8K HDMI Adapter. Easily connect another display to an open USB-C (must support DisplayPort Alt Mode), Thunderbolt 3, Thunderbolt 4 or USB4 port for stunning video quality - up to 4K @ 120Hz or 8K @ 60Hz - higher than most adapters. Universally compatible, this adapter works with Windows, macOS and Chrome OS, as well as 1080p @ 60Hz legacy displays. Plug and play, so there are no drivers to download, install, or update. A compact design makes it easy to take anywhere. Built to last, with a two-year warranty, so you can rest assured knowing you’re covered by Kensington.

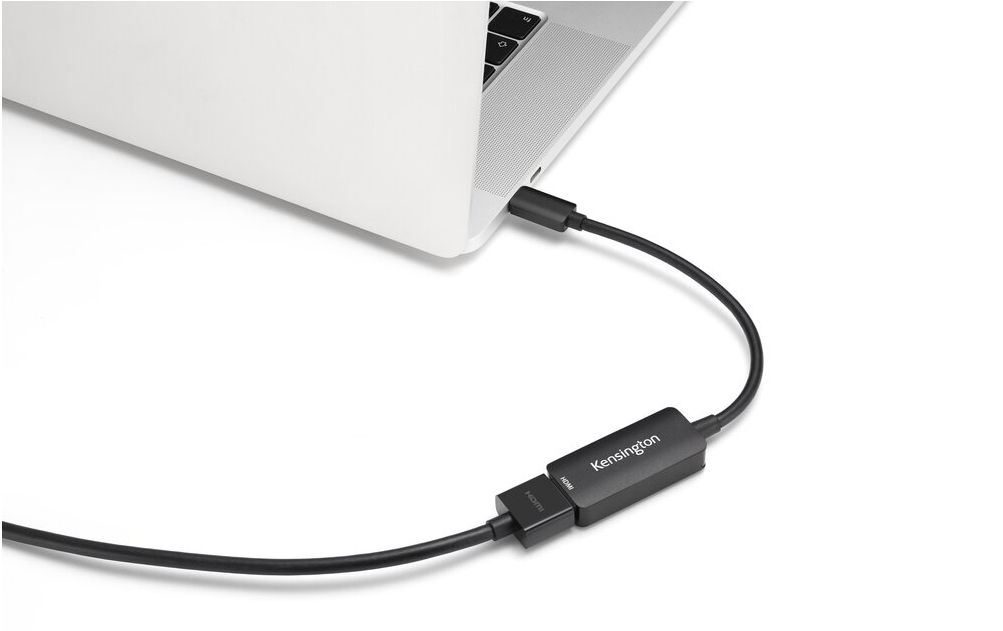

Easily add an additional HDMI display to your setup. The adapter supports monitors, TVs and projectors up to 8K @ 60Hz and 4K @ 120Hz. CV4200H can easily connect to legacy displays, delivering 1080p @ 60Hz video. For USB-C use, your device must support DisplayPort Alt Mode. The maximum resolution on Mac is 4K @ 60Hz.
Universally compatible, designed to work with Windows 10 or later, macOS 11 or later and Chrome OS 44 or later.
Works perfectly with the latest USB-C, Thunderbolt 3, Thunderbolt 4 and USB4 devices (for USB-C use, your device must support DisplayPort Alt Mode).
Simply plug in the adapter and it works. No drivers or software to download, install, or update.
The small footprint of the adapter makes it easy to deploy or to take with you on the go.
Premium construction, tested to meet and exceed Kensington’s high standards, this adapter is built to last, leveraging premium components.
A two-year limited warranty means you can rest assured knowing you’re covered by Kensington.

Features

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Sample rate

120 kHz

Cable length

0.121 m

Connector 1

USB Type-C

Connector 2

HDMI

Connector 1 gender

Male

Connector 2 gender

Female

HDMI version

2.1

HDCP

Y

HDCP version

1.4/2.3

Maximum resolution

7680 x 4320 pixels

Product colour

Black

Connector housing material

Plastic

Plug and Play

Y

Country of origin

Vietnam

Windows operating systems supported

Windows 10, Windows 11

Mac operating systems supported

Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Other operating systems supported

ChromeOS

Certification

FCC, ISED, CE, UKCA, RCM, CB, RoHS, ACCO RSL

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Weight

84 g

Width

22 mm

Depth

210 mm

Height

11 mm

Packaging data

Quantity per pack

1 pc(s)

Package width

79 mm

Package depth

119 mm

Package height

25 mm

Package weight

80 g

Packaging content

1 x CV4200H 1 x Warranty Card 1 x Compliance Sheet 1 x China RoHS Sheet

Other features

Connector(s)

HDMI Out;-USB-C
