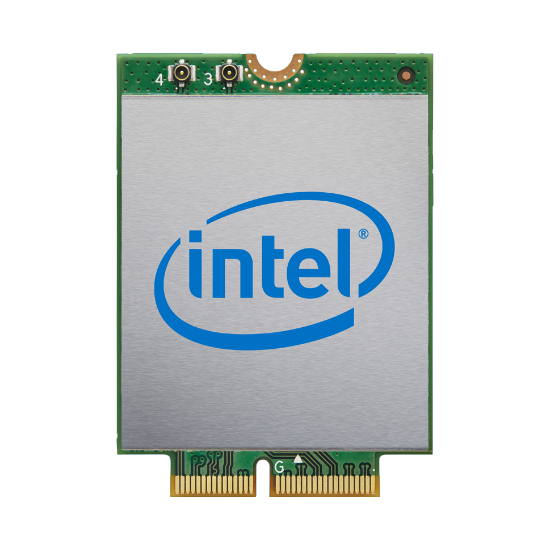

Wi-Fi 6 Ax201 M.2 2230 Network Adapter No Vpro

Introduction

Orthogonal Frequency-Division Multiple Access (OFDMA)
Orthogonal Frequency-Division Multiple Access (OFDMA) is a multi-user version of the popular orthogonal frequency-division multiplexing (OFDM) digital modulation scheme. This allows simultaneous low-data-rate transmission from several users.

Ports & interfaces

Connectivity technology

Wireless

Host interface

M.2

Interface

WLAN

Network

Maximum data transfer rate

2400 Mbit/s

Networking standards

IEEE 802.11ax

Wi-Fi

Y

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

Wi-Fi 6 (802.11ax)

MU-MIMO

Y

Bluetooth

Y

Bluetooth version

5.2

Design

Component for

PC/notebook

Internal

Y

Antenna type

2x2

Form factor

M.2 2230, M.2 1216

Package size

22 x 30 x 2.4 mm

System requirements

Compatible operating systems

Windows 10, 64-bit*|Linux*

Windows operating systems supported

Windows 10 x64

Linux operating systems supported

Y

Operational conditions

Operating temperature (T-T)

0 - 80 °C

Weight & dimensions

Weight

2.33 g

Other features

Maximum operating temperature

80 °C

Supported Under vPro

N

Interface type

M.2: CNVio2

Launch date

Q2'19

Product brief URL

https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax201-module-brief.pdf

Product type

Wireless

Status

Launched

Processor family

Intel Wi-Fi 6 Products

Harmonized System (HS) code

8517620090

Export Control Classification Number (ECCN)

5A991

Commodity Classification Automated Tracking System (CCATS)

NA

Compliance

FIPS, FISMA

Product series

Intel® Wireless Products

Product codename

Harrison Peak
