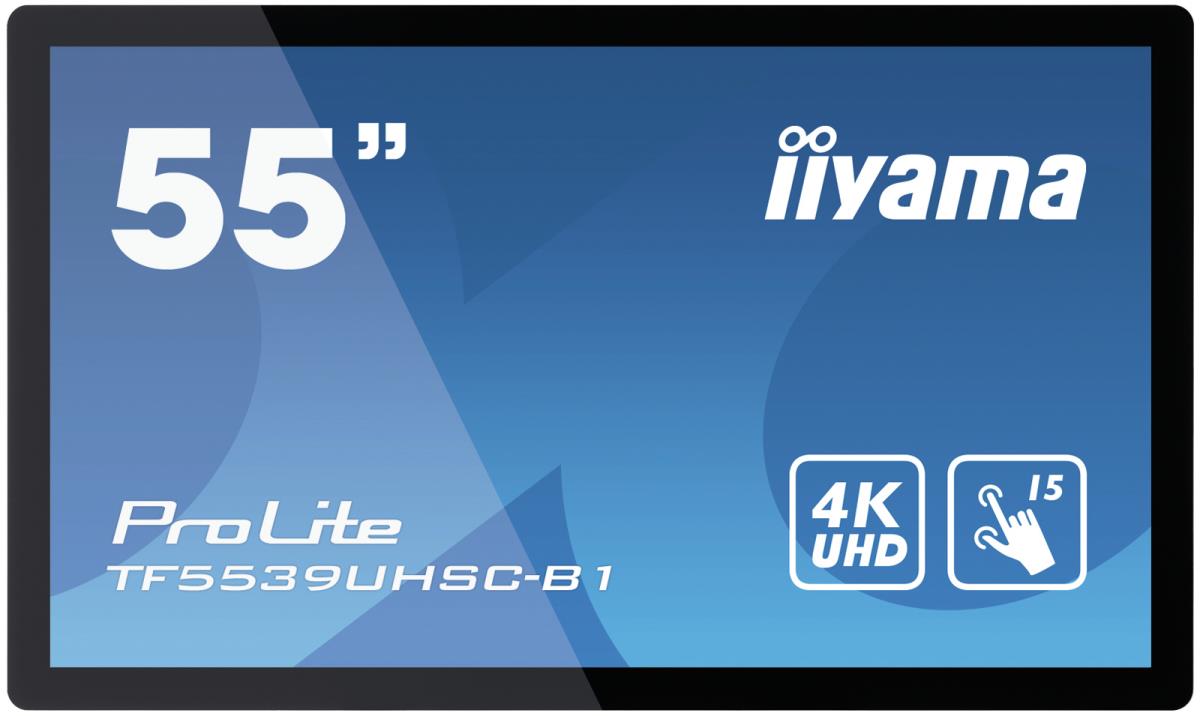

Large Format Monitor - ProLite TF5539UHSC-B1AG - 55in Touch - 3840x2160 (UHD) - Black

Display

Display diagonal

139.7 cm (55")

Display resolution

3840 x 2160 pixels

Panel type

IPS

HD type

4K Ultra HD

Display technology

LED

High frequency rate

60 Hz

Native aspect ratio

16:9

Response time

8 ms

Display brightness

500 cd/m²

Contrast ratio (typical)

1100:1

Pixel pitch

0.315 x 0.315 mm

Horizontal scan range

30 - 83 kHz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display viewable area (HxV)

1209.6 x 680.4 mm

Display diagonal (metric)

139 cm

Display number of colours

1.073 billion colours

Design

Product colour

Black

Housing material

Metal

Glass thickness

4 mm

Surface hardness

7H

International Protection (IP) code

IP54

Performance

Touch technology

Multi-touch

Touchscreen technology

Projected capacitive system

Touchscreen type

Multi-user

Number of simultaneous touchpoints

15

Built-in speaker(s)

Y

RMS rated power

16 W

Number of speakers

2

Built-in camera

N

Built-in microphone

N

On Screen Display (OSD)

Y

Number of OSD languages

8

On Screen Display (OSD) languages

German, Dutch, English, Spanish, French, Italian, Polish, Russian

Mean time between failures (MTBF)

50000 h

HDCP

Y

Ports & interfaces

USB Touch port

Y

HDMI

Y

HDMI ports quantity

2

HDMI version

1.4/2.0

VGA (D-Sub) ports quantity

1

DisplayPorts quantity

1

DisplayPort version

1.2

Microphone in

Y

Audio input

1

Audio output

1

Ethernet LAN (RJ-45) ports

1

RS-232C

Y

Ergonomics

Panel mounting interface

600 x 400 mm

Placement supported

Horizontal/Vertical

Wall mountable

Y

VESA mounting

Y

Power

Energy efficiency class (SDR)

G

Energy consumption (SDR) per 1000 hours

151 kWh

Power consumption (typical)

155 W

Power consumption (standby)

1.5 W

Power consumption (off)

0.3 W

AC input voltage

100-240 V

AC input frequency

50/60 Hz

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Certificates

Certification

CB, CE, EAC, RoHS, ErP, WEEE, cULus, REACH

Sustainability

Sustainability certificates

CE, REACH, RoHS, WEEE

Weight & dimensions

Width (without stand)

127.2 cm

Depth (without stand)

6.8 cm

Height (without stand)

74.9 cm

Weight (without stand)

41 kg

Packaging data

Package width

1400 mm

Package depth

245 mm

Package height

930 mm

Package weight

46.5 kg

Packaging content

Cables included

AC, DisplayPort, HDMI, USB
