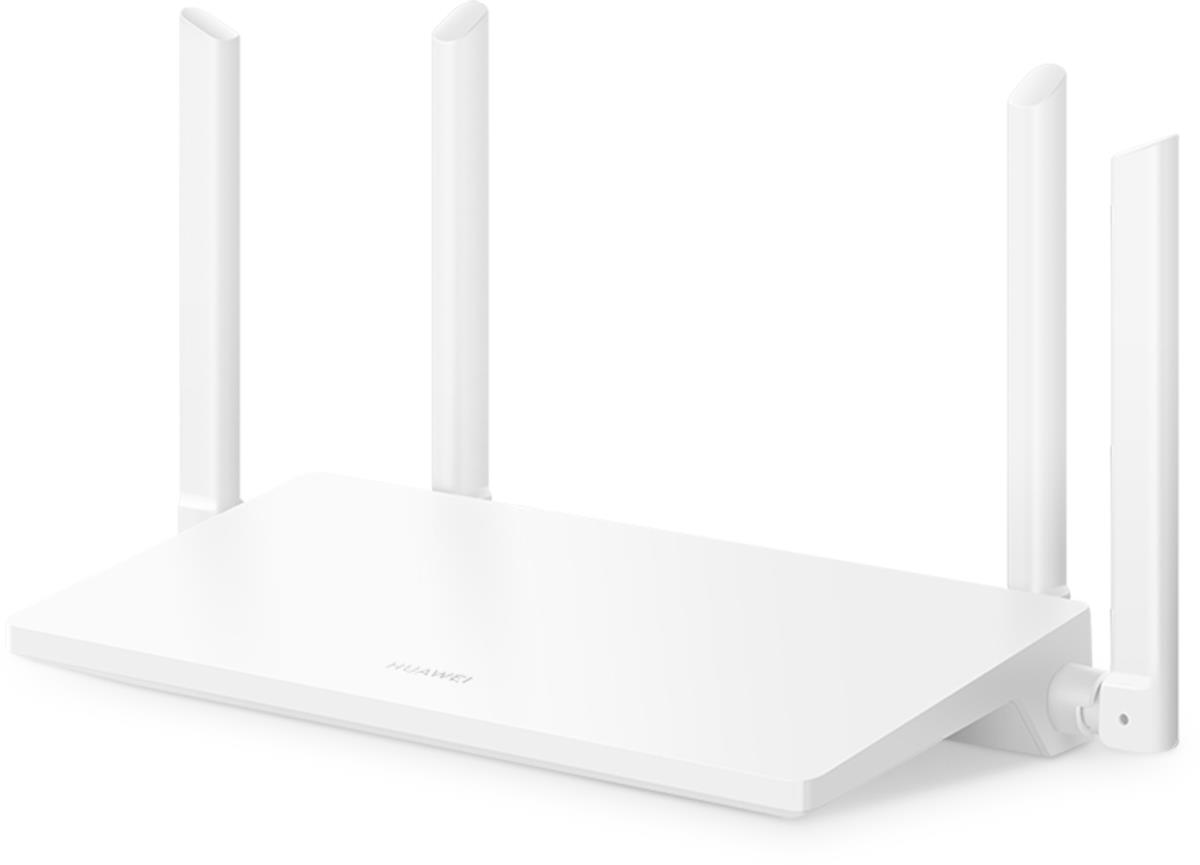

Huawei Wi-Fi Ax2 Wireless Router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White

Introduction

5 GHz Wi-Fi 6 Support
With a wireless transmission rate of up to 1500 Mbps, and 5 GHz band that supports Wi-Fi 6, with a maximum transmission rate of 1201 Mbps1, gaming, streaming, and downloading has never been so smooth, or so seamless.

Auto-Connects to the Optimal Wi-Fi Network2
HUAWEI WiFi AX2 comes equipped with 5 GHz and 2.4 GHz bands that operate simultaneously, and automatically switches devices between 5 GHz and 2.4 GHz bands to ensure that they enjoy an optimal connection at all times. 5 GHz is ideal for high-speed gaming and streaming, whereas 2.4 GHz provides for broader coverage.

High Isolation Antenna Design, for Accelerated Connections
A high-performing antenna array was meticulously designed to reduce interference to the maximum extent possible within the same frequency, generating pristine connections.

Expansive Wi-Fi Coverage, with HarmonyOS Mesh+
Multiple routers placed can be grouped under a single Wi-Fi name, when you link your HUAWEI WiFi AX2 with the other HUAWEI routers3 throughout your home, with automatic switching as you move around. This means that you'll always enjoy an optimal connection, regardless of whichever room you're in.

Gigabit WAN/LAN Auto-Adaptation
HUAWEI WiFi AX2 comes with three Gigabit Ethernet ports, each of which supports WAN/LAN auto-adaptation4, sparing you from having to distinguish between them, and making broadband installation a sheer breeze.

Comprehensive Parental Controls
Thanks to parental controls, you can rest assured knowing that your children will browse safely and securely at all times. With A few taps on your phone is all it takes to block access to inappropriate websites, and limit access to select devices.

Intelligently Manage Your Home Wi-Fi
With AX2, you can check the Wi-Fi coverage map for your home, view the network status at a glance, and easily solve network issues by following the suggested tips.

HUAWEI AI Life App
Manage your router with a few taps of your phone to connect devices, manage your online activities, and control network security.

Network Management
Manage internet access modes and Wi-Fi settings.

Guest Wi-Fi
Open a separate network for your guest(s) so you can keep your Wi-Fi password safe.

Device Management
Manage how long your family spends online and their online activities.

WAN connection

Ethernet WAN

Yes

DSL WAN

No

SIM card slot

No

3G/4G USB modem compatibility

No

Wireless LAN features

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

WLAN data transfer rate (max)

1201 Mbit/s

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN data transfer rate (first band)

300 Mbit/s

WLAN data transfer rate (second band)

1201 Mbit/s

Network

Ethernet LAN

Yes

Ethernet LAN interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

Mobile network

3G

No

4G

No

5G

No

Ports & interfaces

Ethernet LAN (RJ-45) ports

3

USB port

No

Management features

Reset button

Yes

WPS push button

Yes

MIMO

Yes

Security

Security algorithms

SSID, WPA3

Firewall

Yes

Guest access

Yes

Parental control

Yes

DMZ support

Yes

Design

Product colour

White

Product type

Tabletop router

Antenna

Antenna design

External

Antennas quantity

4

Features

Internal memory

128 MB

Flash memory

128 MB

Power

Power source type

AC, DC

Output current

1 A

Power consumption (typical)

12 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

257.6 mm

Depth

163.5 mm

Height

29 mm

Weight

216 g
