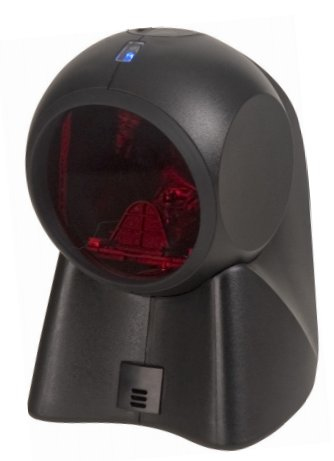

Barcode Scanner Orbit 7120 - Wired - 1 D Imager - Black - Scanner Only Low Speed USB

Introduction

Overview

Orbit is the all-time, best-selling hands-free omnidirectional scanner for a reason. Several reasons, actually. Let's start here: The Orbit 7120 and 7180 scanners are innovative, elegant and affordable with an award-winning design that's just the right fit for convenience retail applications where counter space is at a premium.

Adjustable Scan Head

Tilt the scanner up to 30 degrees for targeted scanning or larger products.

Aggressive Scan Performance

With a 20 scan line omnidirectional pattern, Orbit scanners provides snappy scanning performance - a nice productivity booster in hand presentation applications.

Sweet Spot Scanning

Engineered "sweet spot" optimizes scan performance and first-pass read rates.

Automatic Scanning Operation

Simply present a barcode to Orbit and the unit scans in a single pass.

Built-In RF EAS Antenna

(Orbit 7180 and OrbitCG 7180 only) Increases efficiency by simultaneously deactivating RF EAS tags and decoding barcodes.

Accuracy

Improve reading accuracy with a single click by activating the single-line mode (OrbitCG 7180 only).

Product Details

If you're a retailer in need of an affordable, yet aggressive omnidirectional scanning solution that's aesthetically pleasing to boot, the Honeywell Orbit series is tough to beat. Orbit series scanners maximize your customers' satisfaction and employees' efficiency with a patented 20-line scan pattern, an easy-to-find sweet spot and a scan speed of 1,120 scans per second. The Orbit series features an award-winning design that's compact, lightweight and rugged. Its shape enables handheld scanning of large, bulky items. And for added flexibility, the scanning head can be tilted within a 30 degree range to accommodate objects of various sizes and shapes. If your applications require menu scanning, choose the OrbitCG 7180 scanner. It combines the power of patented CodeGate technology with the many outstanding features already found in the Orbit 7120. CodeGate technology makes it easy to target the desired barcode and complete data transmission with the push of a single button. The scanner's expanded ability to update its firmware via Honeywell's free patented MetroSet2 configuration software safeguards long-term infrastructure commitments in the event of a change in the POS system or software.

Scanning

Type

Fixed bar code reader

Scanner type

1D

Sensor type

Laser

Linear (1D) barcodes supported

Code 128,Code 39,Code 93,GS1 DataBar Omnidirectional,U.P.C.

2D (matrix & stacked) barcodes supported

Not supported

Read rate (max)

1120 reads/s

Light levels (direct sunlight)

0 - 4842 lx

Wavelength

650 nm

Pitch reading angle

-60 - 60°

Ports & interfaces

Connectivity technology

Wired

Standard interfaces

RS-232,RS-485,USB

Performance

Product colour

Black

Power

Power source type

DC

Power consumption (typical)

0.9 W

Power consumption (standby)

0.85 W

Input voltage

5 V

Weight & dimensions

Width

102 mm

Depth

105 mm

Height

150 mm

Weight

400 g

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

5 - 95%
