Scanner Fi-7460 60ppm 120ipm Duplex A4l Adf

Introduction

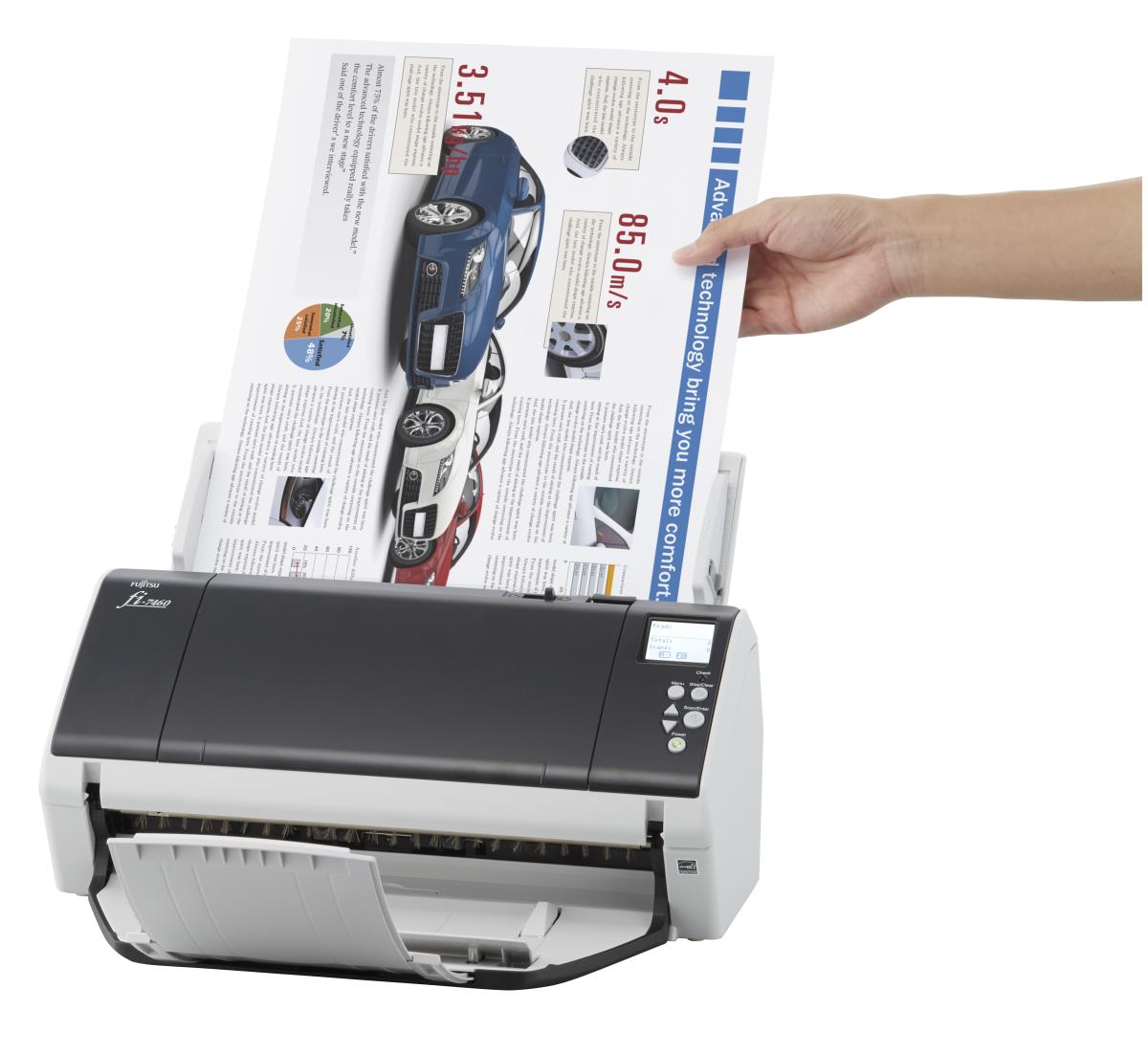

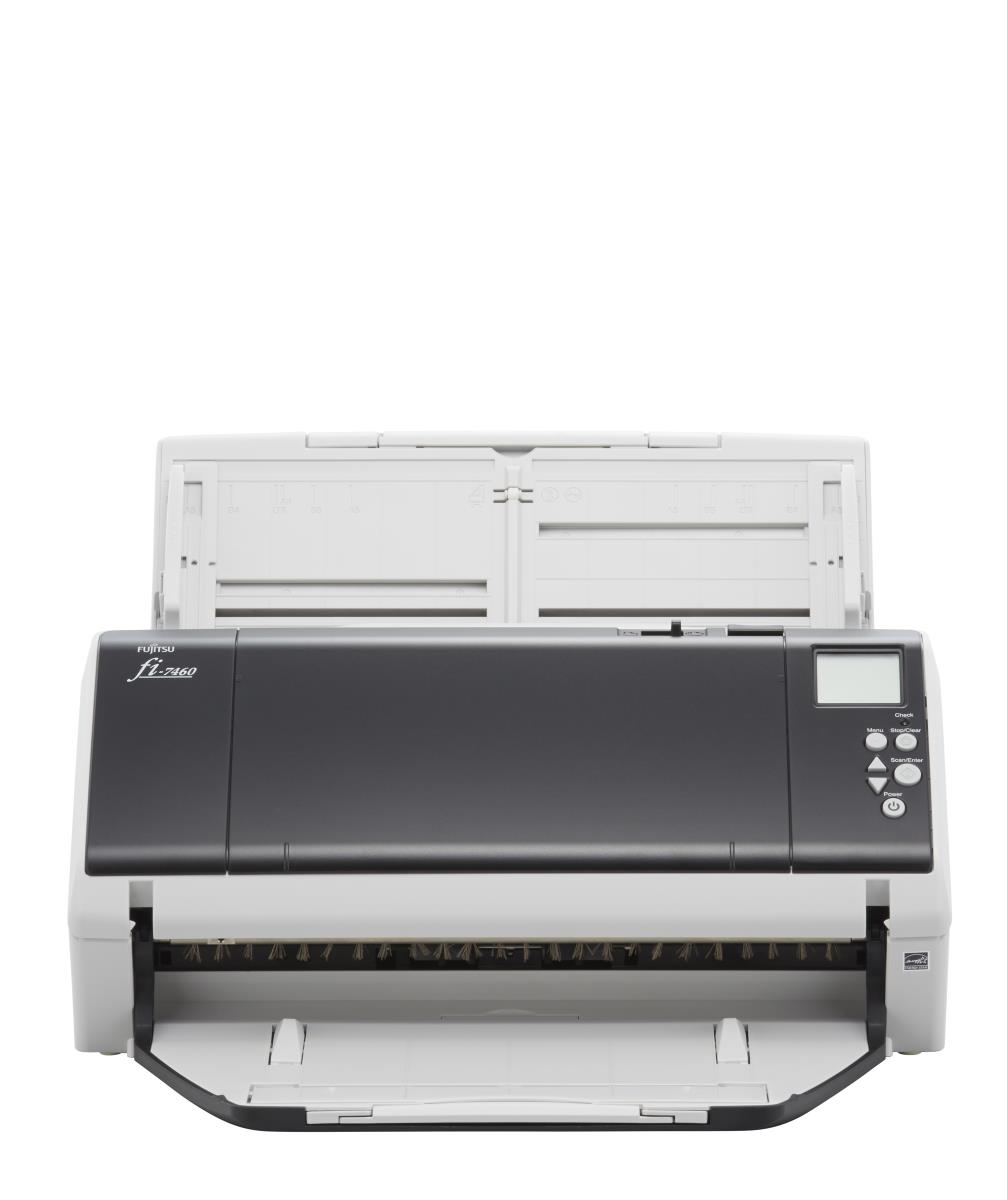

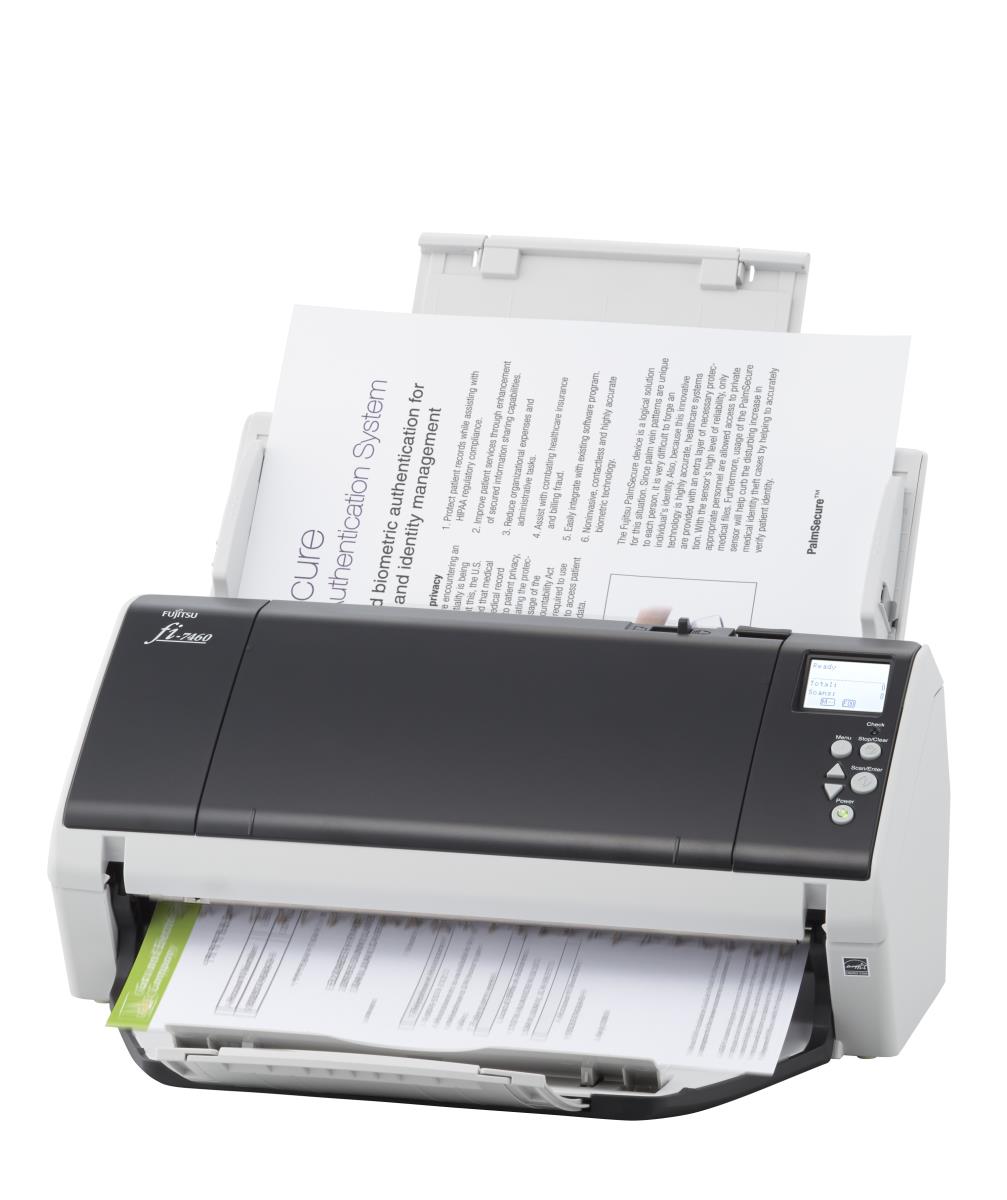

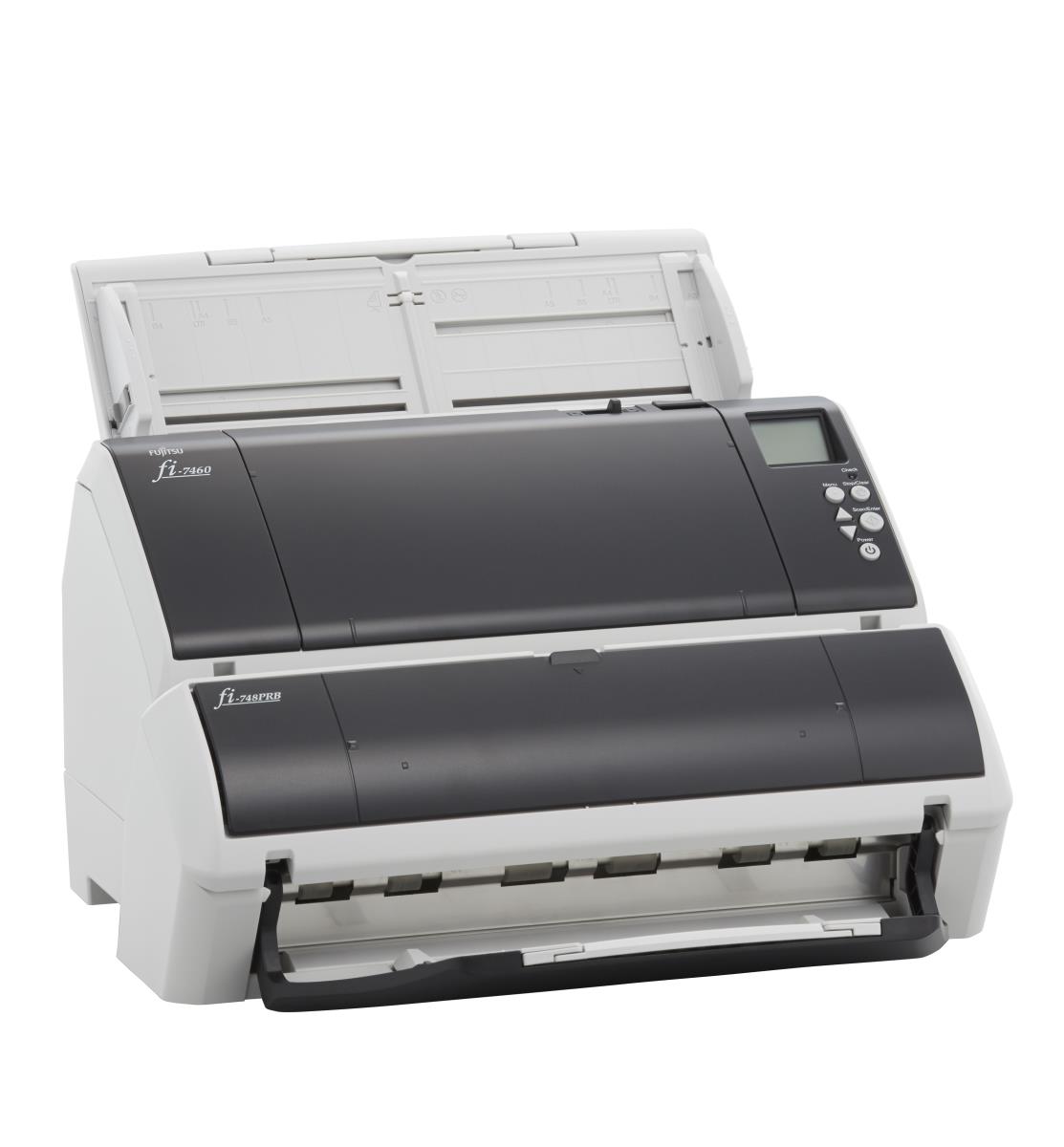

Fujitsu fi-7460, Superior A3/A2 format scanning technology distributed to the desktop

- Versatile document capturing capability for any size document from A8 to A3, folded A2 and A1 and up to 5.5 meters in length - from plastic to paper, thick to thin, with surface quality variations
- Retractable roller mechanism allows for scanning booklets and filled envelopes
- A4 landscape at 300 dpi; 60ppm/120ipm, scan mixed batches up to 100 sheets
- Uninterrupted scanning: Paper feeding and replenishment during operation
- Uninterrupted capture routines: Collect diverse documents into a unified digital file
- Compact dimensions: Base footprint only slightly larger than an A4 sheet of paper
- Sensitive: Treats delicate documents with utmost care
- Equipped with Intelligent Sonic Paper Protection that is based on acoustic sensors
- Skew reducer - Independent pick rollers ensure a skewed document will not affect the alignment of following sheets
- Integrated backlight LCD and Scanner Central Admin tools for hassle free monitoring and administering
- PaperStream IP and PaperStream Capture; Fujitsu developed scanner driver and image enhancement plus batch capture software application

The fi-7460 is easy to set up, use and maintain and comes bundled with a user friendly and intuitive scanner driver PaperStream IP along with batch scanning automation and enhancement software PaperStream Capture. A4 landscape scanning speeds in both colour or black and white at up to 300 dpi is 60 pages per minute or 120 images per minute through the 100 page capacity ADF. The fi-7460 can scan a huge variety of material from plastic cards to booklets to even folded A1 in size.

Intuitive feeding functions
The fi-7460 scanner comes with a unique paper protection function that is based on acoustic sensors; iSOP (Intelligent Sonic Paper Protection), iSOP reduces the risk of having documents damaged by sensing the audible noise of paper movements and stopping the feeding of sheets when an irregular noise is encountered.

The scanner additionally makes use of an ultrasonic sensor that accurately detects multifeed errors where two or more sheets are fed through the scanner at once plus intelligent multifeed function that is designed for documents that intentionally feature paper attachments of defined sizes or locations such as sticky notes or photos. The scanner can automatically recognise the location of the attachment and will then exclude that zone from triggering alert conditions.

Skew Reducer helps ensure straight paper feeding
Should you be scanning mixed batches of differing thicknesses of documents then the "skew reducer" eliminates the risk of physical skew being carried over from one sheet in a mixed batch to the next ensuring that each document is captured with the utmost precision and simplicity. Multi-segmented pick rollers that rotate independently ensure that if a document goes through skewed then this will not affect the alignment of the next document.

Hassle free monitoring and administering
Integrated within the operating panel a backlight enhanced LCD shows useful information such as current scanner settings, operating status and a paper counter, in addition the fi-7460 comes with Scanner Central Admin tools that includes functions that system administrators can use to manage the installation and operation of multiple scanners, monitor operation status and update drivers and software from one location. This ability dramatically reduces the cost and work that goes into setting up, operating and maintaining many scanners in an organisation and also in expanding the scanner network to multiple locations.

PaperStream IP and PaperStream Capture
The fi-7460 comes bundled with PaperStream IP, an integrated scanner driver and image enhancement module that is built on TWAIN/ISIS standards offering user friendly operability, intuitive high quality image creation and real time processing that will benefit post scan routines like OCR. PaperStream Capture enhances the document capture process from adjusting scanning settings to performing batch scanning, verifying data and releasing to directories, repositories or subsequent process routines. Users can complete data capture tasks easily with the extremely user-friendly graphical user interface (GUI). Moving scanned batches into a queue for later retrieval is possible as well.

Service and Support
A one year Advance Exchange is offered as a standard warranty and this includes online support along with parts/labour and shipping costs. Advance Exchange involves the delivery of a refurbished scanner which replaces the faulty scanner.

Service upgrades are available that extends the warranty period from between 1 to 5 years and additionally offers the possibility for items like onsite service with impressive response and repair times, accidental damage cover and remote desktop support.

Scanning

Maximum scan size

304.8 x 5588 mm

Optical scanning resolution

600 x 600 DPI

Colour scanning

Y

Duplex scanning

Y

Output colour depth

24 bit

Film scanning

N

ADF scan speed (b/w, A4)

60 ppm

ADF scan speed (colour, A4)

60 ppm

Duplex ADF scan speed (b/w, A4)

120 ipm

Duplex ADF scan speed (colour, A4)

120 ipm

Black/white scanning colour modes

Grayscale, Monochrome

Design

Scanner type

ADF + Manual feed scanner

Product colour

Grey, White

Built-in display

Y

Performance

Sensor type

Dual CCD

Light source

White LED (4x)

Scan drivers

ISIS,TWAIN

Input capacity

Auto document feeder (ADF) input capacity

100 sheets

Paper handling

Scanning media types supported

Plain paper

Multi feed detection

Y

Maximum ISO A-series paper size

A3

ISO A-series sizes (A0...A9)

A4,A8

Media thickness (min)

1.4 mm

Auto Document Feeder (ADF) media weight

27 - 413 g/m²

Maximum scan area (ADF)

304.8 x 431.8 mm

Minimum scan area (ADF)

50.8 x 69 mm

Ports & interfaces

USB port

Y

USB version

3.2 Gen 1 (3.1 Gen 1)

Standard interfaces

USB 3.2 Gen 1 (3.1 Gen 1)

Power

Power supply type

AC

Power consumption (typical)

36 W

Power consumption (standby)

0.35 W

Power consumption (off)

0.35 W

Power consumption (PowerSave)

1.4 W

Input voltage

100-240 V

System requirements

Windows operating systems supported

Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64

Server operating systems supported

Windows Server 2008,Windows Server 2008 R2 x64,Windows Server 2008 x64,Windows Server 2012 R2 x64,Windows Server 2012 x64,Windows Server 2016 x64

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

20 - 80%

Weight & dimensions

Width

380 mm

Depth

209 mm

Height

168 mm

Weight

7.6 kg

Packaging content

Cables included

AC, USB

Quick start guide

Y

Drivers included

Y

Bundled software

PaperStream IP, PaperStream Capture, Software Operation Panel, Error Recovery Guide, Scanner Central Admin tools, ScanSnap Manager, Scan to Microsoft SharePoint, ABBYY FineReader, 2D barcode for PaperStream

Technical details

Sustainability certificates

RoHS, ENERGY STAR
