HX Desk Monitor Arm with VHD Pivot - white

Introduction

Enable immersive viewing experiences and take back your desk space. Our best-selling HX Monitor Arm is now available with a very heavy-duty tilt pivot, giving gamers and office professionals the freedom to move and position ultra-wide curved displays 9.1"–13.8” (23–35 cm) deep and 28.7–37.5 lbs (13–17 kg), like the Samsung® 57? Odyssey G9 Gaming Monitor.

note: Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display’s weight and depth to ascertain which mount is appropriate.

Mounting

Maximum weight capacity

17 kg

Maximum weight capacity (per display)

17 kg

Maximum weight capacity (per curved/ultra-wide display)

17 kg

Maximum screen size

144.8 cm (57")

Mounting

Clamp

Suitable for TV

Yes

Mounting type

Desk

Minimum VESA mount

75 x 75 mm

Maximum VESA mount

100 x 100 mm

Panel mounting interface

75 x 75,100 x 100 mm

Number of displays supported

1

Desk thickness (min)

1 cm

Desk thickness (max)

6.6 cm

Ergonomics

Height adjustment

Yes

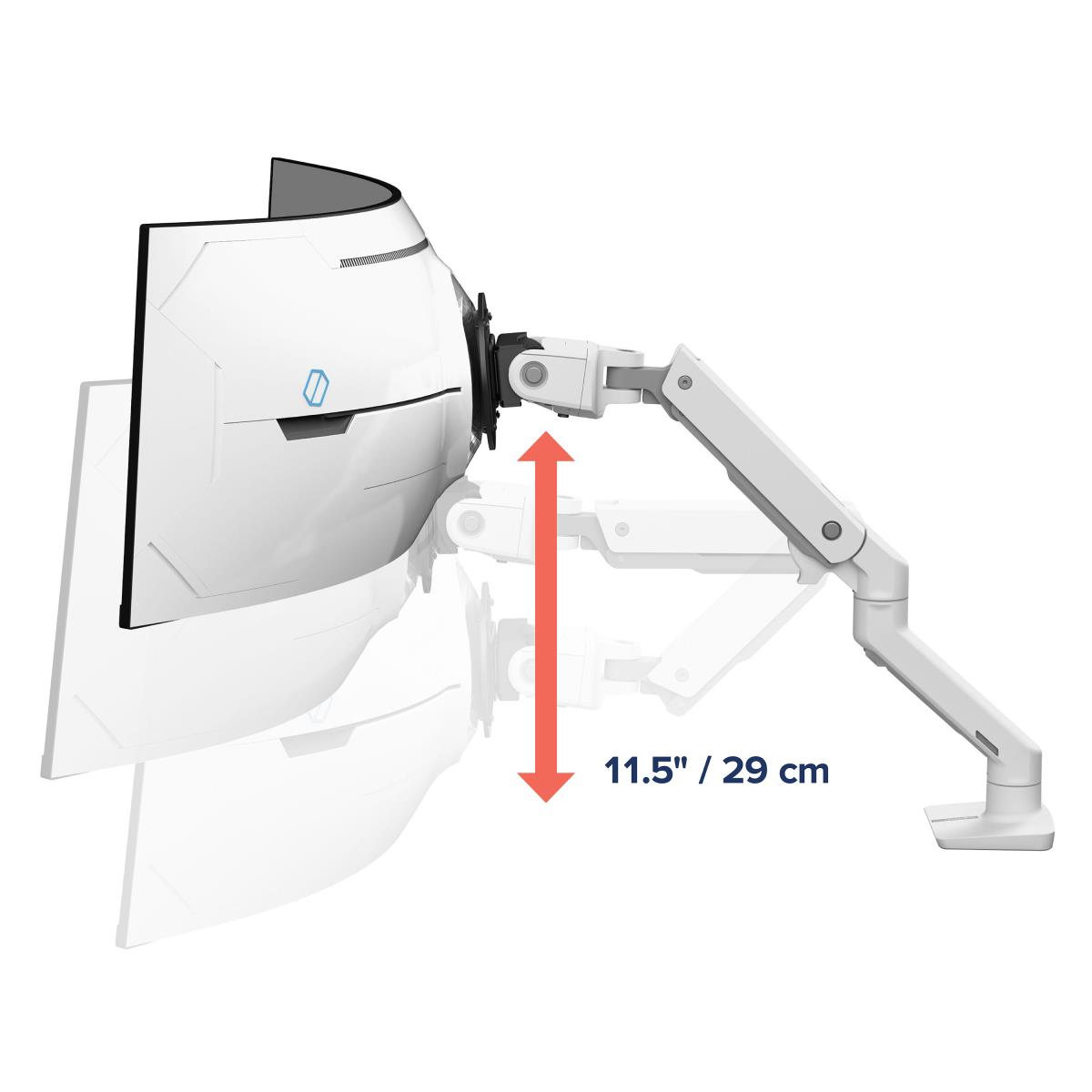

Height adjustment range

0 - 292 mm

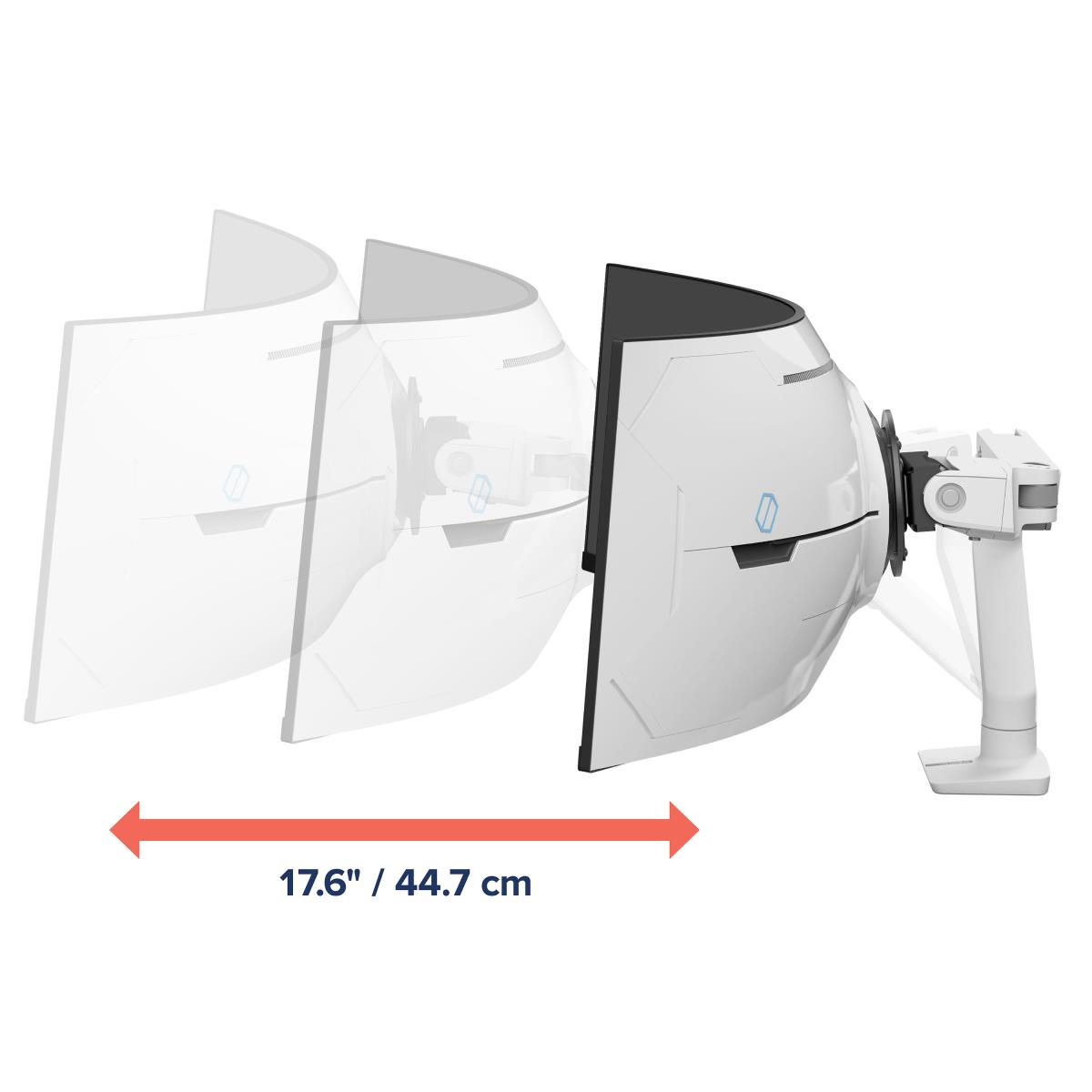

Adjustable depth

Yes

Tilt adjustment

Yes

Tilt angle range

5 - 20°

Swivelling

Yes

Rotating

Yes

Angle of rotation

20°

Pan range

0 - 180°

Number of arms

1

Cable management

Yes

Design

Product colour

White

Orientation

Landscape

Easy to install

Yes

Packaging data

Quantity per pack

1 pc(s)

Package width

135 mm

Package depth

207 mm

Package height

78 mm

Package weight

10.5 kg

Package type

Box

Packaging content

Clamp included

Yes

VESA mount included

Yes

Mounting kit

Yes

Packaging content

HX Arm, Very Heavy-Duty Tilt Pivot, extension, desk clamp, grommet mount, mounting hardware

Logistics data

Country of origin

China
