Eb-pu2010b - Projector - LCD - 10000 Lm - Wuxga With 4k En - White

Introduction

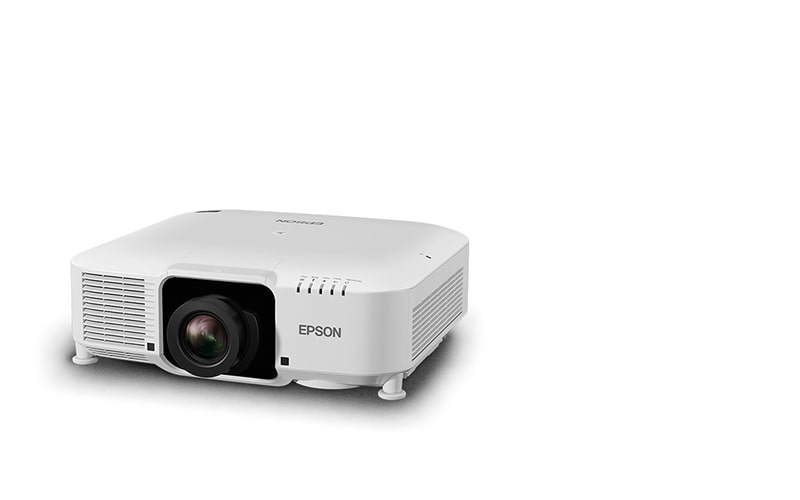

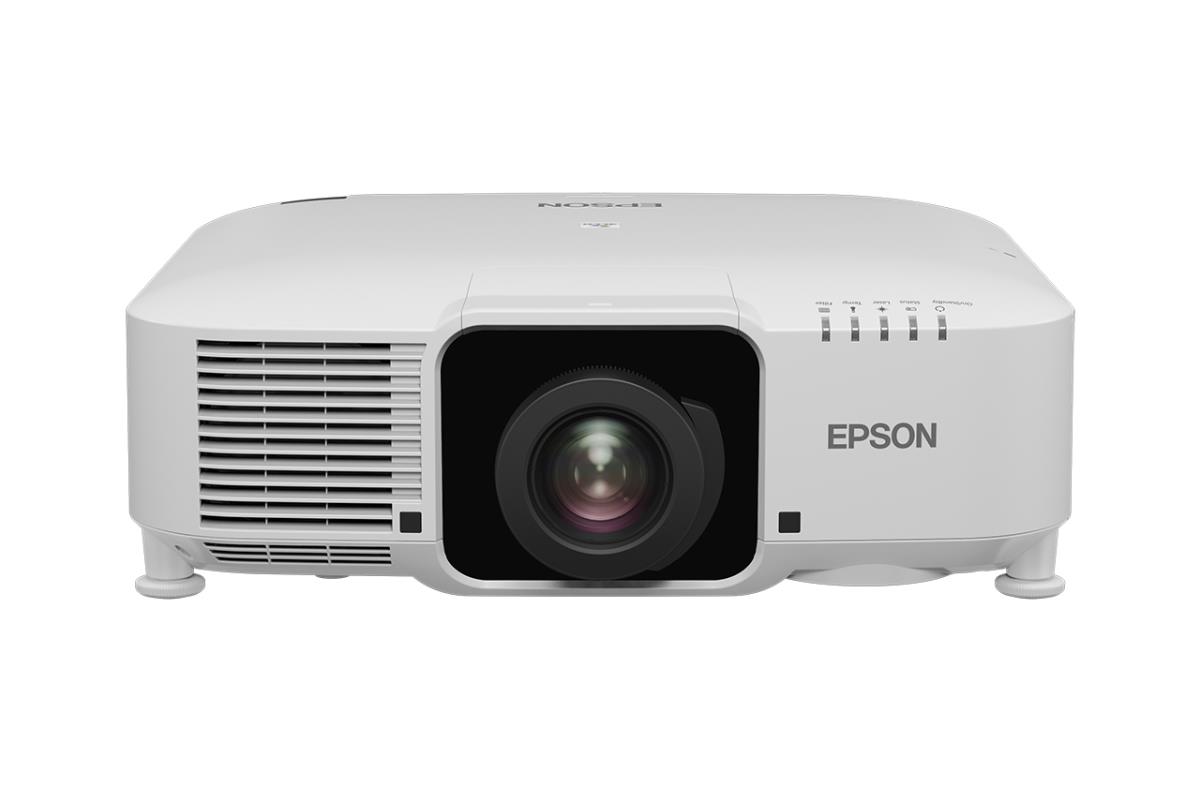

The EB-PU2010W is a compact and versatile high brightness projector with optional interchangeable lenses and advanced installation features.

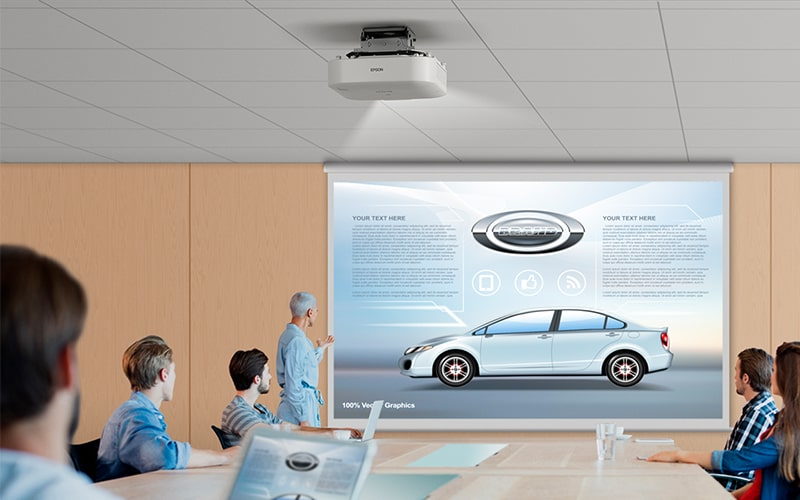

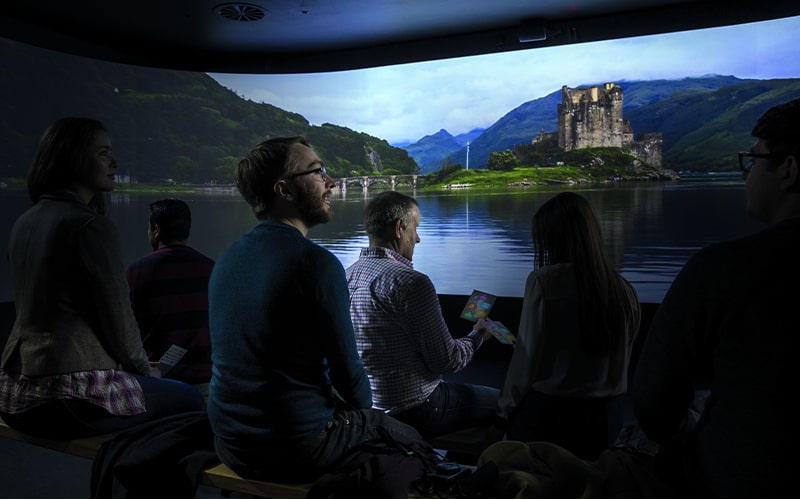

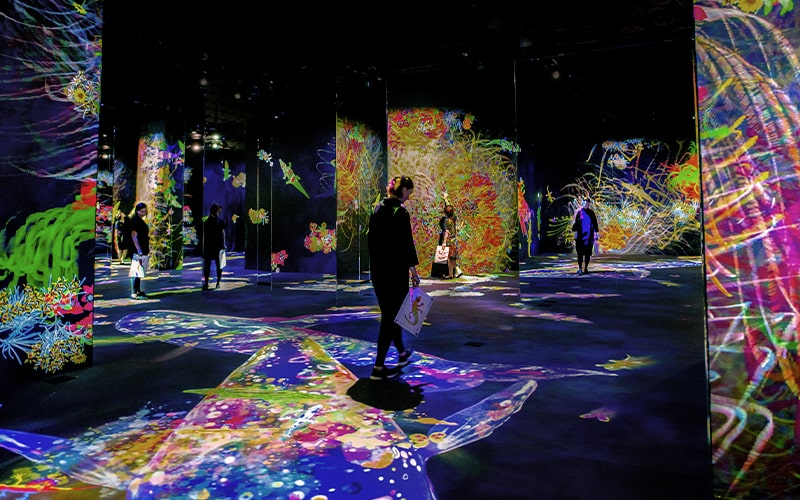

This highly versatile 10,000 lumens installation projector is sold as 'body only' and pairs seamlessly with Epson’s existing lens family to deliver bright, true-to-life images in a wide variety of environments: from visitor attractions to lecture theatres, museums to meeting rooms. The high lumens EB-PU2010W offers WUXGA resolution with 4K enhancement, HDR and advanced installation features.

Superior image quality

The 10,000 lumens EB-PU2010W projects clear whites, vivid details, deep blacks, defined shadows and high contrast imagery.

Compact and lightweight

The compact size makes this projector more transportable and saves storage space, providing size and cost advantages to projector fleets. The unobtrusive design allows it to blend seamlessly into most environments. Also available in black.

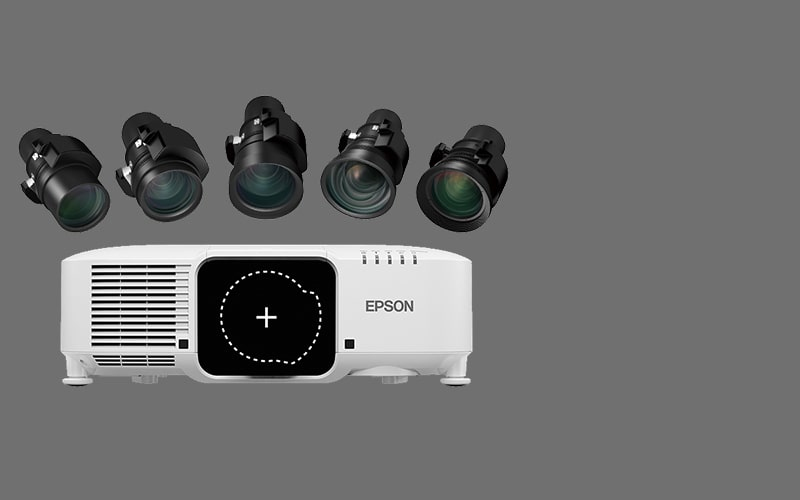

Interchangeable lens support

The EB-PU2010W accommodates different lenses to suit a wide range of projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in the hands of the user.

Designed for installation agility

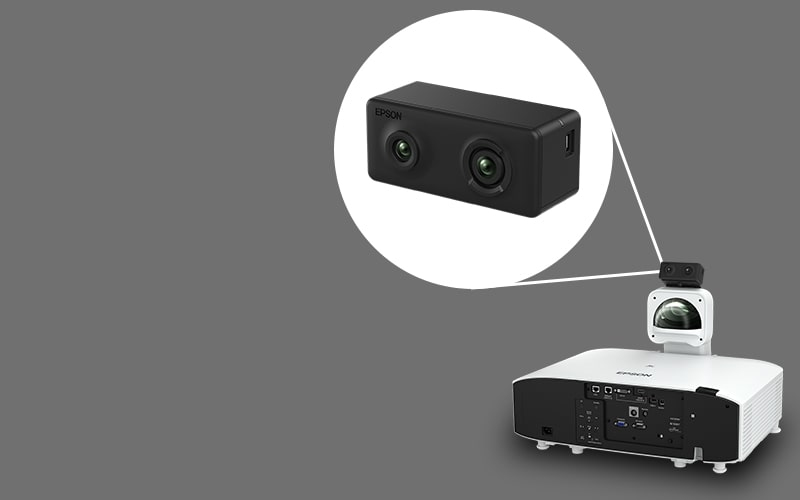

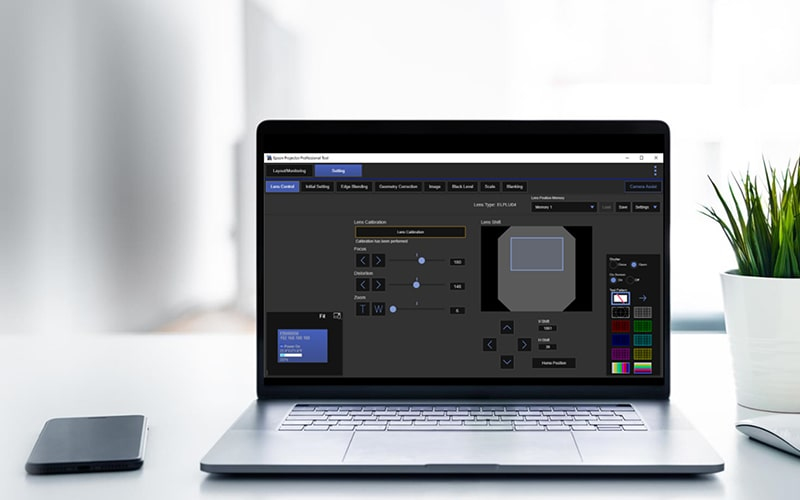

Produce large-scale, extremely bright displays, even as part of multi-projector installations where edge blending, stacking and lens flexibility is key. Epson Projector Professional Tool makes advanced installation techniques easy, such as projection mapping, while the optional external camera module (ELPEC01) uses built-in processing for PC-free geometry correction for stacking. The EB-PU2010W features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool. Also includes SDI input and output connectivity.

Projector

Projector brightness

10000 ANSI lumens

Projection technology

3LCD

Projector native resolution

WUXGA (1920x1200)

Contrast ratio (typical)

2000:1

Native aspect ratio

16:10

Number of colours

1.07 billion colours

Projector brightness (economic mode)

7000 ANSI lumens

Projector brightness (portrait mode)

10000 ANSI lumens

Keystone correction, horizontal

-30 - 30°

Keystone correction, vertical

-45 - 45°

Matrix size

2.62 cm (1.03")

Heat dissipation

1819 BTU/h

Light source

Light source type

Laser

Service life of light source

20000 h

Service life of light source (economic mode)

30000 h

Lens system

Focal length range

varies by lens

Zoom type

Auto

Throw ratio

0.35 - 7.41:1

Interchangeable lens

Y

Video

Analog signal format system

Not supported

Full HD

Y

3D

N

Video processing

10 bit

Video colour modes

Cinema, Dynamic, Natural, Presentation, DICOM simulation mode, Multi-projection, BT.709

Ports & interfaces

USB 2.0 Type-B ports quantity

1

Audio (L/R) in

1

Serial interface type

RS-232C

VGA (D-Sub) ports quantity

1

HDMI ports quantity

1

DVI port

Y

Network

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Storage

Card reader integrated

N

Features

Noise level (economic mode)

30 dB

Preset modes

Cinema, Dynamic, Presentation

Noise level

37 dB

Country of origin

Philippines

Password protection

Y

Design

Market positioning

Bussines

Product type

Large venue projector

Product colour

White

Placement

Ceiling, Desktop, Flying frame

Cable lock slot

Y

Cable lock slot type

Kensington

Display

Built-in display

N

Power

Power source

AC

Power consumption (typical)

535 W

Power consumption (standby)

0.5 W

Power consumption (economy mode)

452 W

AC input voltage

100-240 V

AC input frequency

50/60 Hz

Software

Software support

via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery

Operational conditions

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

545 mm

Depth

436 mm

Height

189 mm

Weight

16.8 kg

Package width

570 mm

Package depth

765 mm

Package height

270 mm

Package weight

22.1 kg

Packaging content

Remote control included

Y

Batteries included

Y

Cables included

AC

Manual

Y

Warranty card

Y

WLAN adapter included

Y

Bundled software

Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management, Epson Projektor Professional Tool

Logistics data

Quantity per pack

1 pc(s)

Products per pallet

14 pc(s)

Products per pallet (UK)

14 pc(s)

Other features

Supported network protocols

HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
