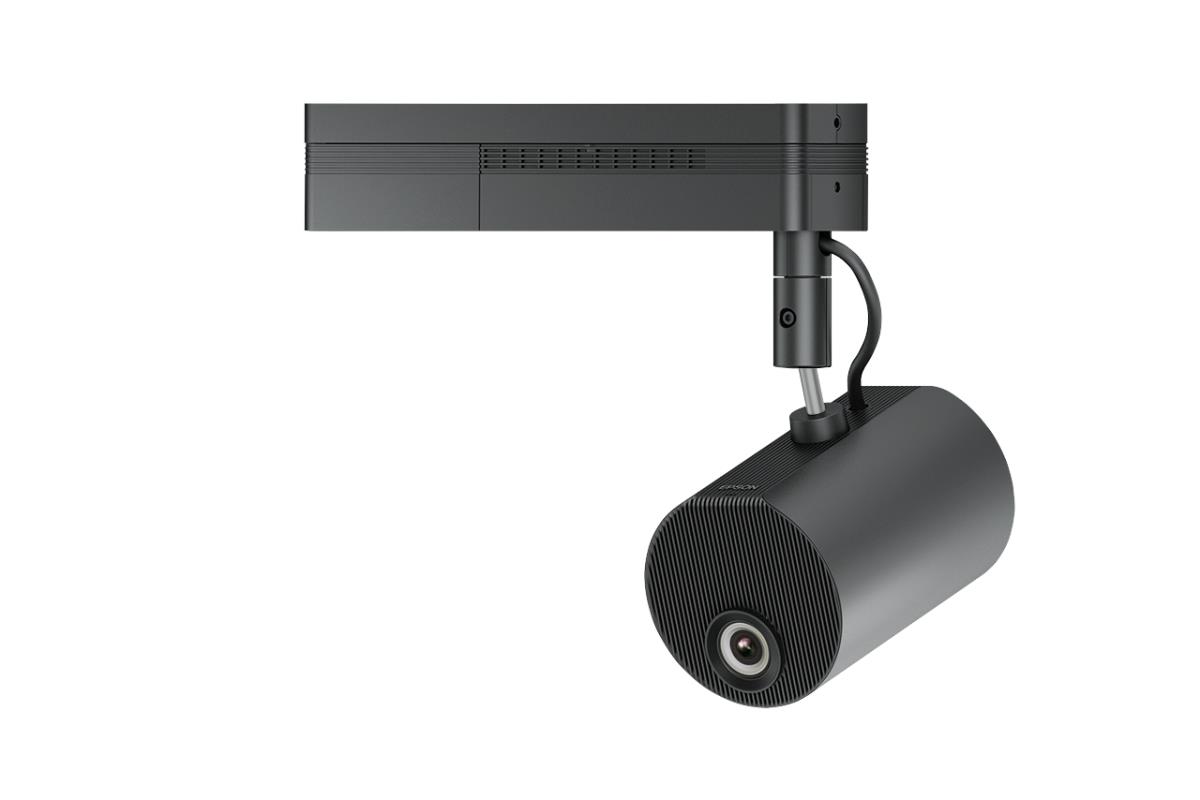

Ev-105 - Projector Digital Lighting - 3LCD - 2000 Lm - Wxga - USB / Wi-Fi

Introduction

Create stunning visual displays and immersive environments with the LightScene EV-105, the cutting-edge digital signage solution from Epson. A convergence of lighting and display technology, LightScene laser projectors captivate audiences by simultaneously illuminating and projecting on virtually any surface or material, unleashing dynamic, experiential content for digital art, commercial signage and décor applications. Designed to blend in discreetly to any setting - from retail, hospitality and event spaces to showrooms and museums - LightScene EV-105 offers a sleek, black spotlight design, with an array of configuration, mounting and programming options

Laser Light Source
Epson Projectors with Laser Light Source can operate for up to 20,000 hours virtually maintenance free.

Three-Year Warranty
Extends the limited warranty to 3 years

WXGA Resolution
1280 x 800 HD widescreen resolution

Contrast Ratio
Features an extraordinary contrast ratio up to 2,500,000:1, for exceptionally deep blacks and brilliant, vivid colors

Edge Blending
Use multiple projectors to overlap images, and there are no bright spots where the overlap occurs - providing dynamic, seamless projection.

Projection on Non-Standard Surfaces
Project on curved surfaces or on corners

Projector

Screen size compatibility

762 - 3378.2 mm (30 - 133")

Projection distance

0.88 - 6.34 m

Projection distance (wide)

0.9 - 4 m

Projection distance (tele)

1.4 - 6.3 m

Contrast ratio (dynamic)

2500000:1

Projector brightness

2000 ANSI lumens

Projection technology

3LCD

Projector native resolution

WXGA (1280x800)

Contrast ratio (typical)

1200:1

Native aspect ratio

16:10

Number of colours

16.78 million colours

Projector brightness (economic mode)

1000 ANSI lumens

Projector brightness (portrait mode)

2000 ANSI lumens

Keystone correction, horizontal

-40 - 40°

Keystone correction, vertical

-45 - 45°

Matrix size

1.5 cm (0.59")

Matrix type

3-panel (p-Si TFT active)

Light source

Light source type

Laser

Service life of light source

20000 h

Service life of light source (economic mode)

30000 h

Lens system

Focal length range

18.2 - 28.4 mm

Aperture range (F-F)

1.51 - 1.92

Zoom type

Auto

Zoom ratio

1.58:1

Digital zoom

1.4x

Optical zoom

1.58x

Throw ratio

1.38 - 2.19:1

Video

Full HD

N

3D

N

Video colour modes

Dynamic

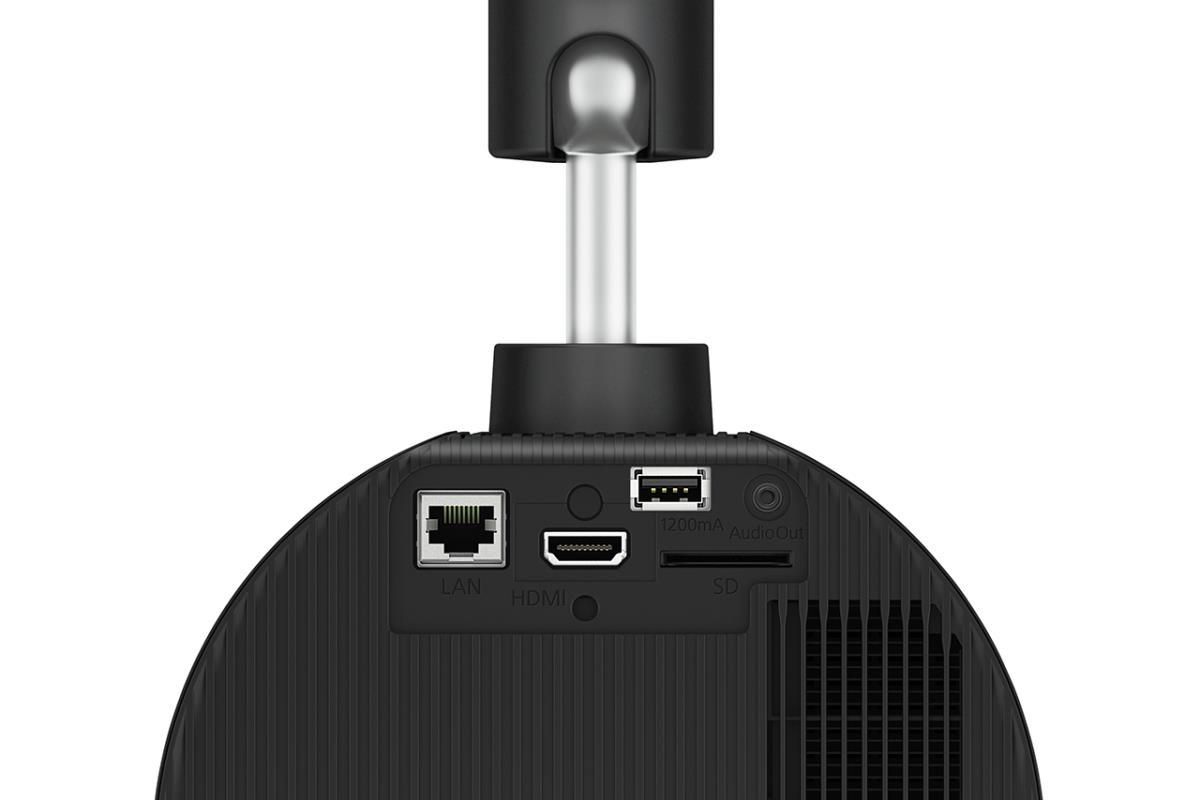

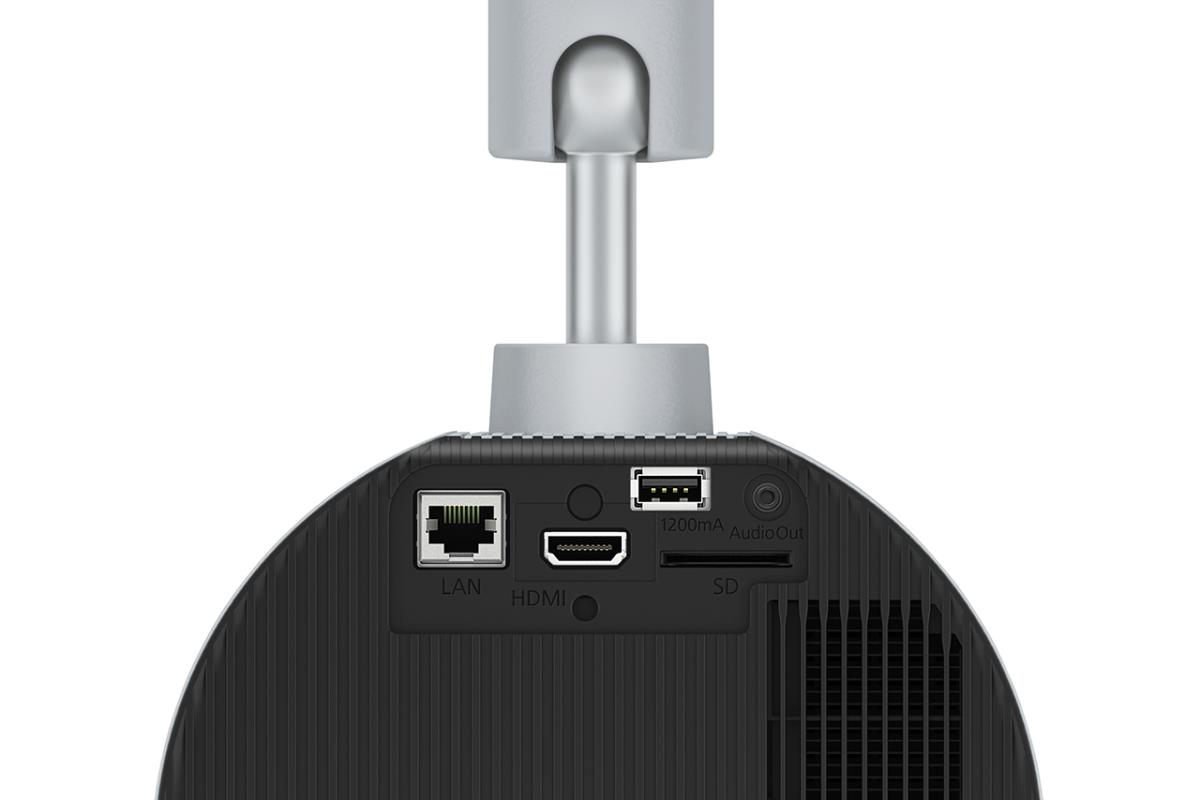

Ports & interfaces

HDMI connector type

Full-size

USB 2.0 ports quantity

1

Mini-USB 2.0 ports quantity

1

PC Audio out

Y

HDMI ports quantity

1

DVI port

N

Network

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Wi-Fi

Y

Wi-Fi standards

802.11b,802.11g,Wi-Fi 4 (802.11n)

Storage

Card reader integrated

Y

Compatible memory cards

SD

Features

Noise level (economic mode)

22 dB

Noise level

34 dB

Country of origin

China

Password protection

Y

Multimedia

Built-in speaker(s)

N

Design

Product type

Short throw projector

Product colour

Black

Placement

Ceiling

Display

Built-in display

N

Power

Power source

AC

Power consumption (typical)

170 W

Power consumption (standby)

0.3 W

Power consumption (economy mode)

118 W

AC input voltage

100-240 V

AC input frequency

50/60 Hz

AC adapter output voltage

100-240 V

Software

Software support

via: Crestron (Network)

Operational conditions

Operating temperature (T-T)

5 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

175 mm

Depth

260 mm

Height

175 mm

Weight

5 kg

Package width

470 mm

Package depth

530 mm

Package height

250 mm

Package weight

9.64 kg

Power adapter width

36.1 cm

Power adapter depth

11 cm

Power adapter height

6.5 cm

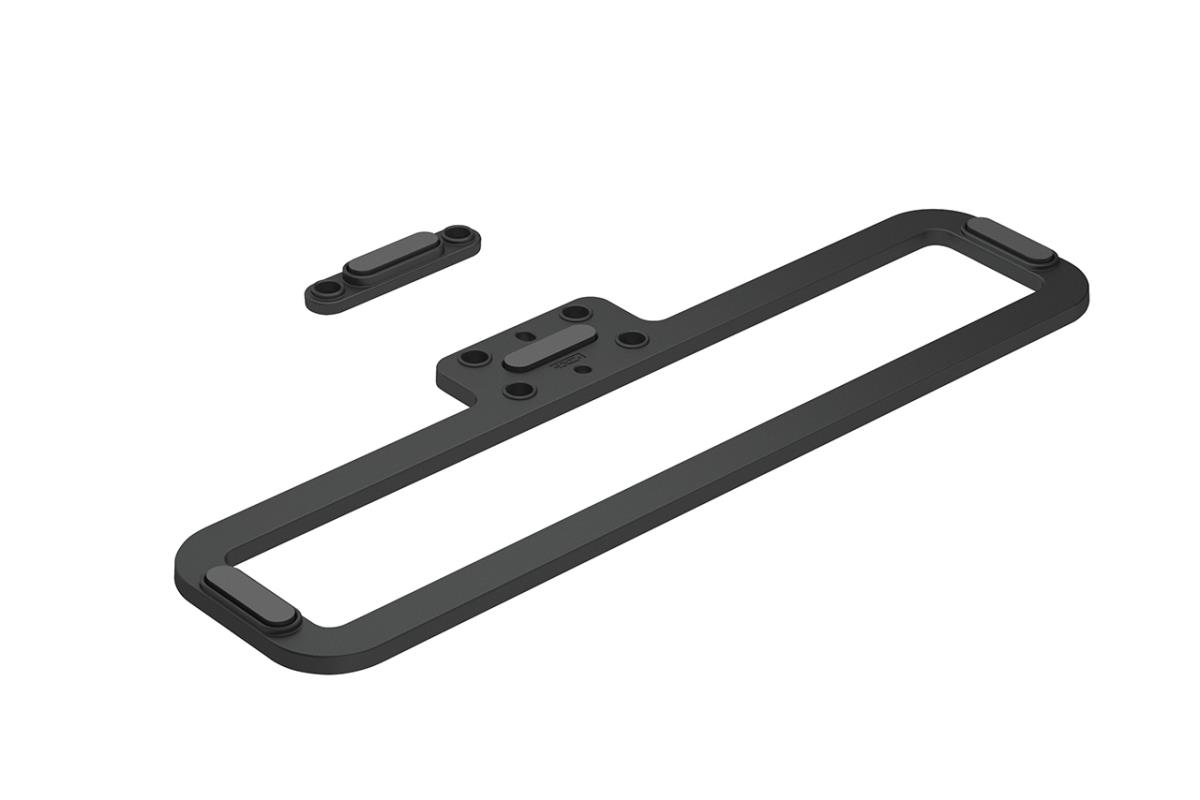

Mounting bracket weight

1.9 kg

Packaging content

Remote control included

Y

Batteries included

Y

Cables included

AC, HDMI

Quick start guide

Y

Technical details

Sustainability certificates

RoHS

Logistics data

Quantity per pack

1 pc(s)

Products per pallet

16 pc(s)

Pallet gross length

120 cm

Pallet gross width

80 cm

Pallet gross height

8.47 m

Products per pallet layer

2 pc(s)

Products per pallet layer (UK)

4 pc(s)

Products per pallet (UK)

32 pc(s)

Pallet length (UK)

120 cm

Pallet width (UK)

100 cm

Pallet height (UK)

8.47 m
