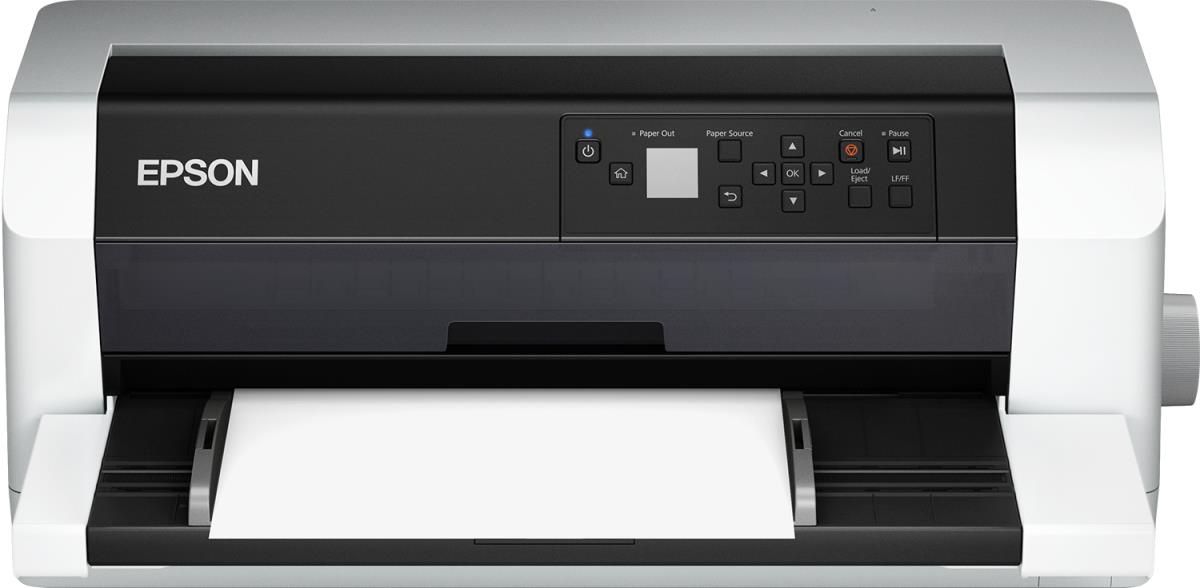

Dlq-3500iin - Printer - Dot Matrix - 24 Pins

Introduction

Ideal for logistics and warehousing businesses, along with government and public sector organisations, the DLQ-3500IIN is a premium, networked dot matrix printer, with an LCD screen, that's exceptionally economical to run and is ultra-reliable across all stationery types.

In challenging printing conditions, the robust DLQ-3500IIN 24-pin dot matrix printer provides premium performance, allied to reduced energy use. With sturdy casing and reliable dot matrix technology, it's capable of delivering high-quality output even when the environment is dusty or active.

Equally, when time is tight, the DLQ-3500IIN delivers fast printing of up to 550 characters per second (High-Speed-Draft, 10cpi), via a fast and robust 24-pin dot matrix printer with 136 columns.

The printer's performance is matched by its cost-effectiveness. Thanks to the efficient and reliable dot matrix technology, and low-cost ribbons, it represents a printing solution that is extremely budget friendly.

An LCD screen also provides valuable user convenience while network capability ensures full integration.

The only 24-pin dot matrix printer on the market with 8 prints in one.

Printing

Maximum printing width (columns)

136

Colour

N

Maximum print speed

550 cps

Maximum print speed (draft)

550 cps

Maximum print speed (LQ)

195 cps

Character density

10 cpi

Maximum number of copies

7 copies

Built-in barcodes

Code 128 (A/B/C),Code 39,EAN13,EAN8,Interleaved 2/5,POSTNET,UPC-A,UPC-E

Character sets

ISO 8859-15, ISO Latin 1, Italic, PC437, PC850, PC858, PC864, Roman 8

Paper handling

Paper tray media types

Envelopes

Continuous paper thickness range

0.12 - 0.62 mm

Label thickness range

0.16 - 0.19 mm

Multi-part paper thickness range

0.12 - 0.62 mm

Single sheet thickness range

0.065 - 0.19 mm

Features

Buffer size

128 KB

Sound pressure level (printing)

59 dB

Country of origin

Indonesia

Endurance

Print head

24-pin

Print head life

200 million characters

Ribbon life (black, draft)

9 million characters

Print yield

9000000 characters

Mean time between failures (MTBF)

10000 h

Power

Power consumption (typical)

78 W

Power consumption (standby)

0.8 W

AC input voltage

100-240 V

AC input frequency

50/60 Hz

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

10 - 80%

System requirements

Windows operating systems supported

Windows 10,Windows 7,Windows 8,Windows XP

Bundled software

Epson Status Monitor

Weight & dimensions

Width

661 mm

Depth

433 mm

Height

276 mm

Weight

18.9 kg

Packaging data

Quantity per pack

1 pc(s)

Package width

425 mm

Package depth

785 mm

Package height

512 mm

Package weight

22 kg

Other features

Print technology

Dot matrix

Internal memory

128 MB

Needles

24

Compatible operating systems

Windows 10, Windows 7, Windows 8, Windows XP
