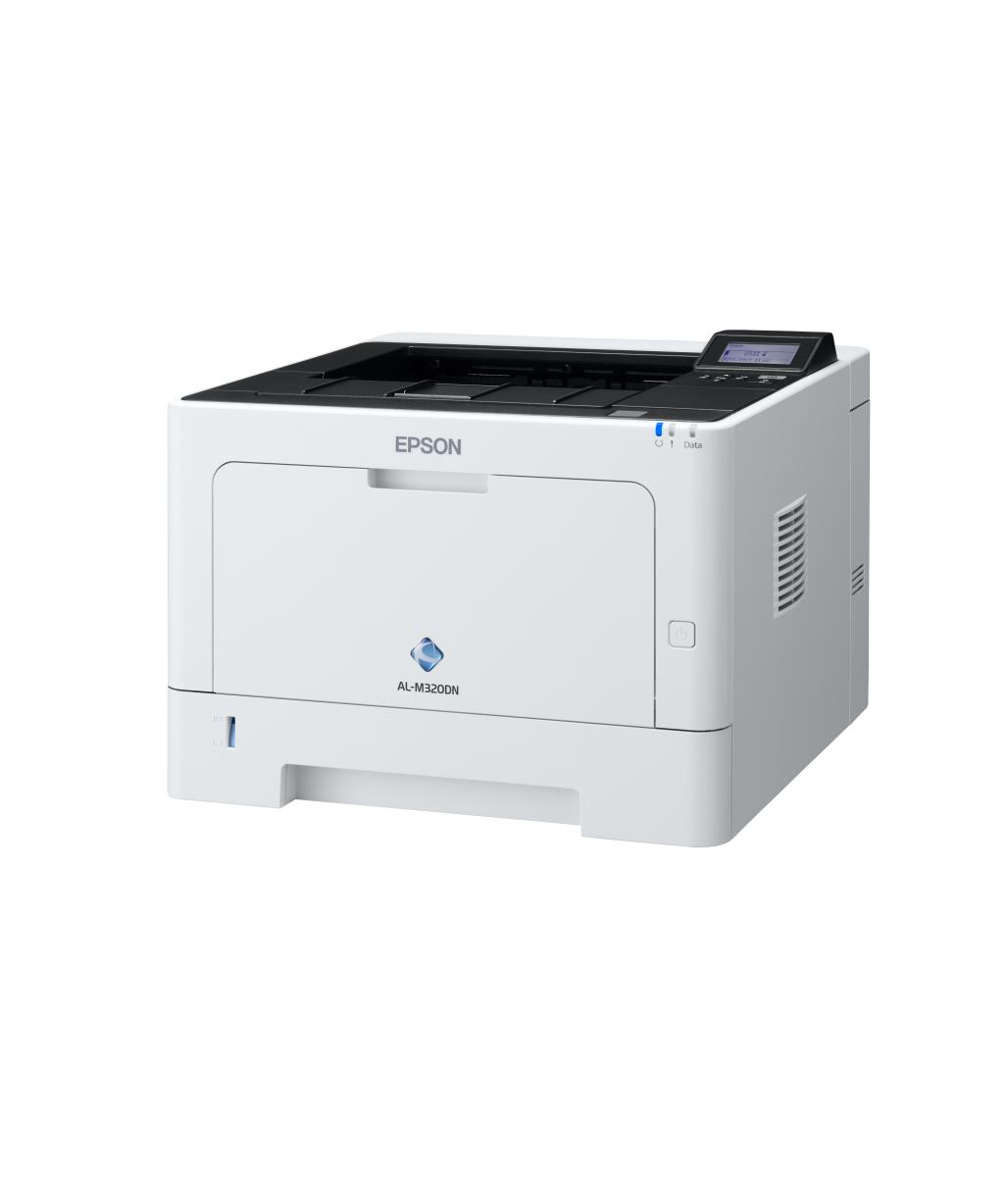

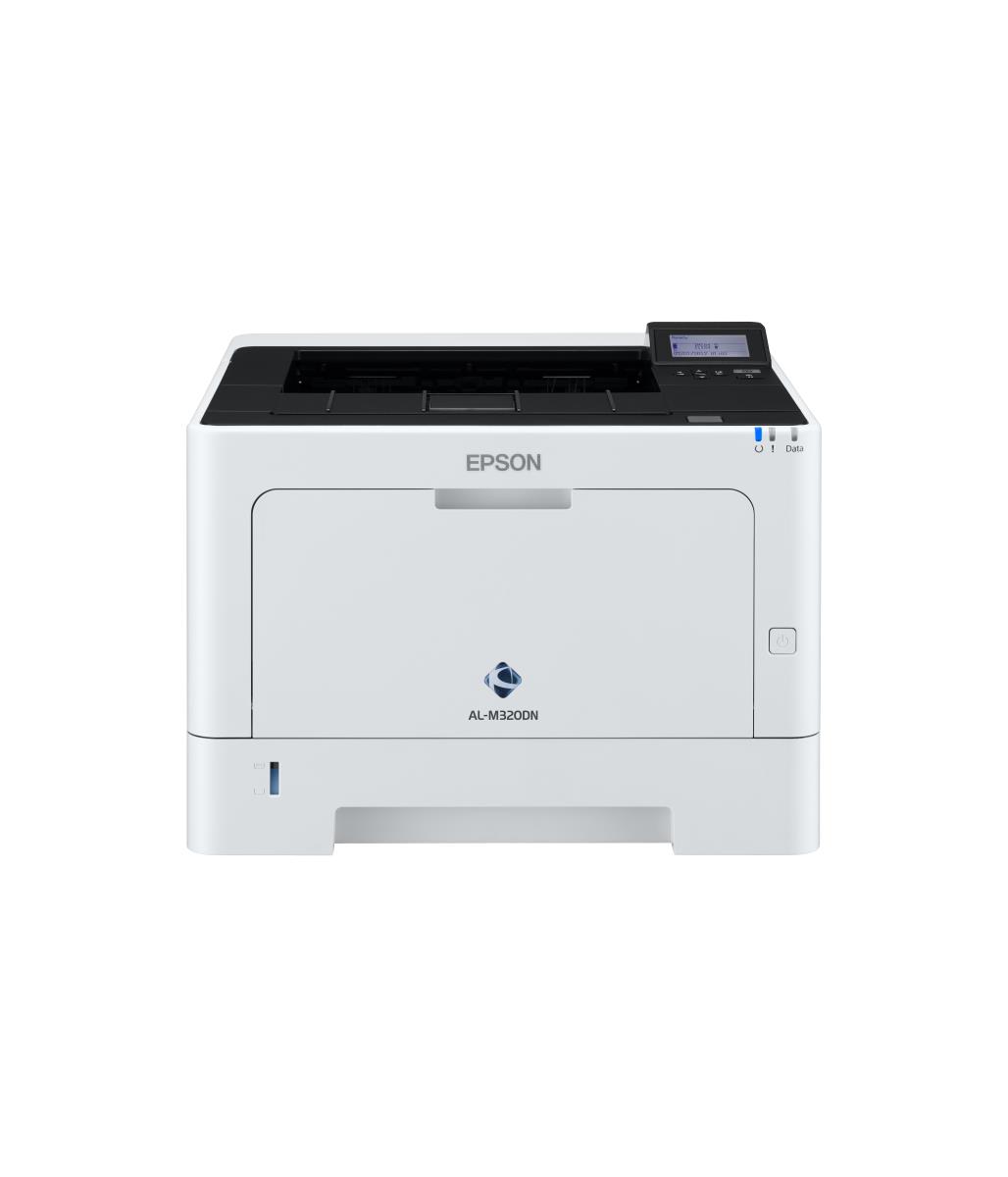

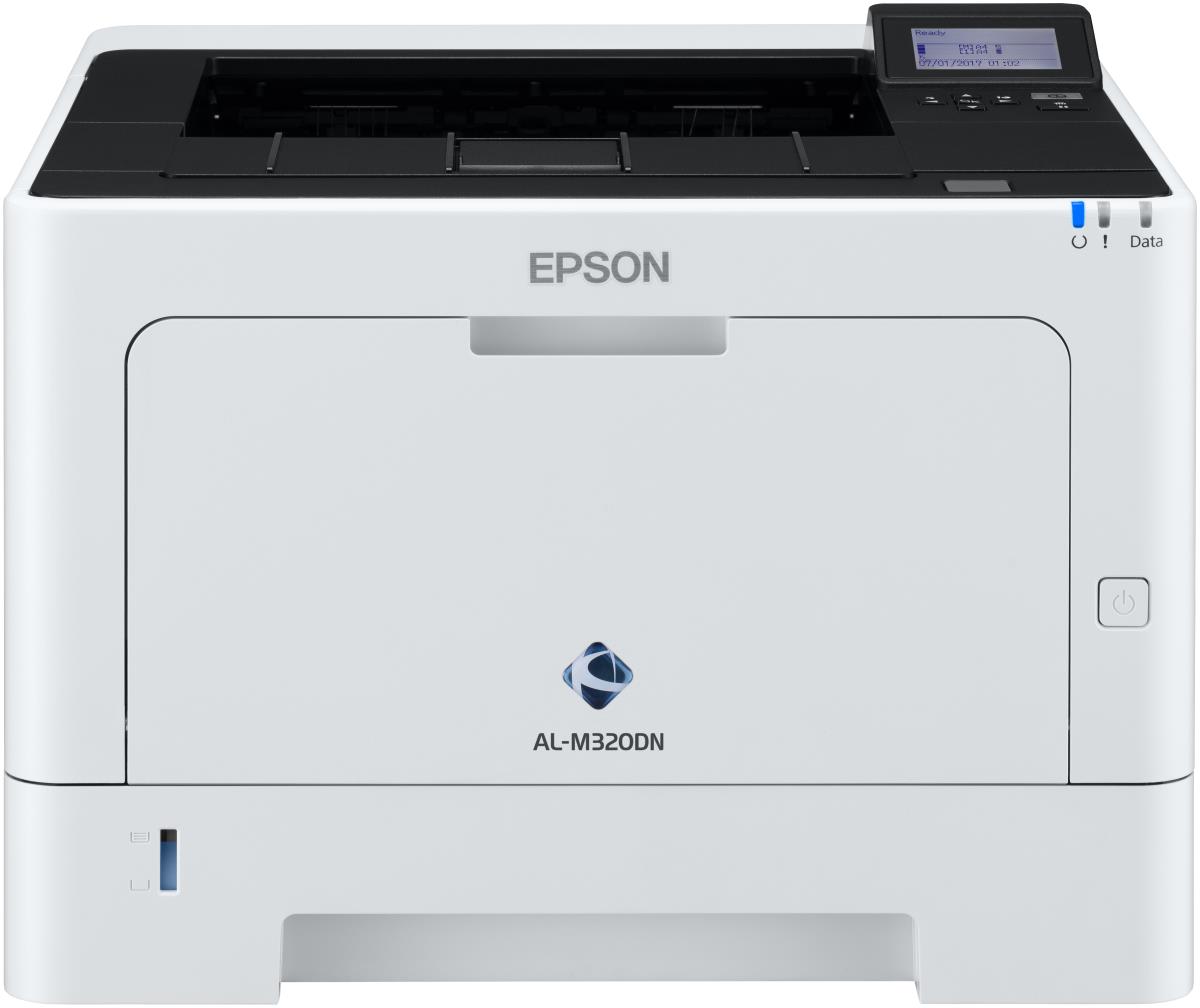

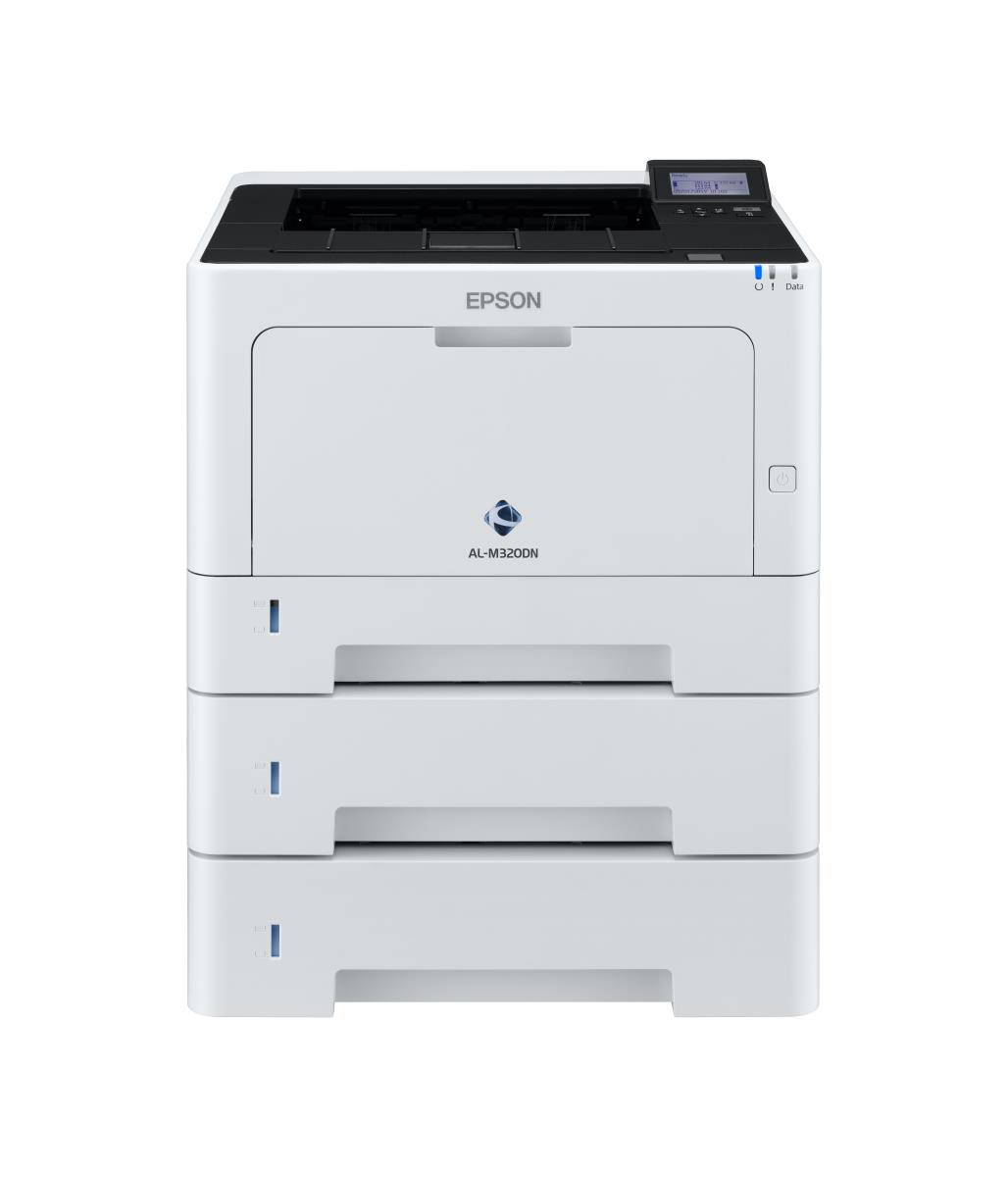

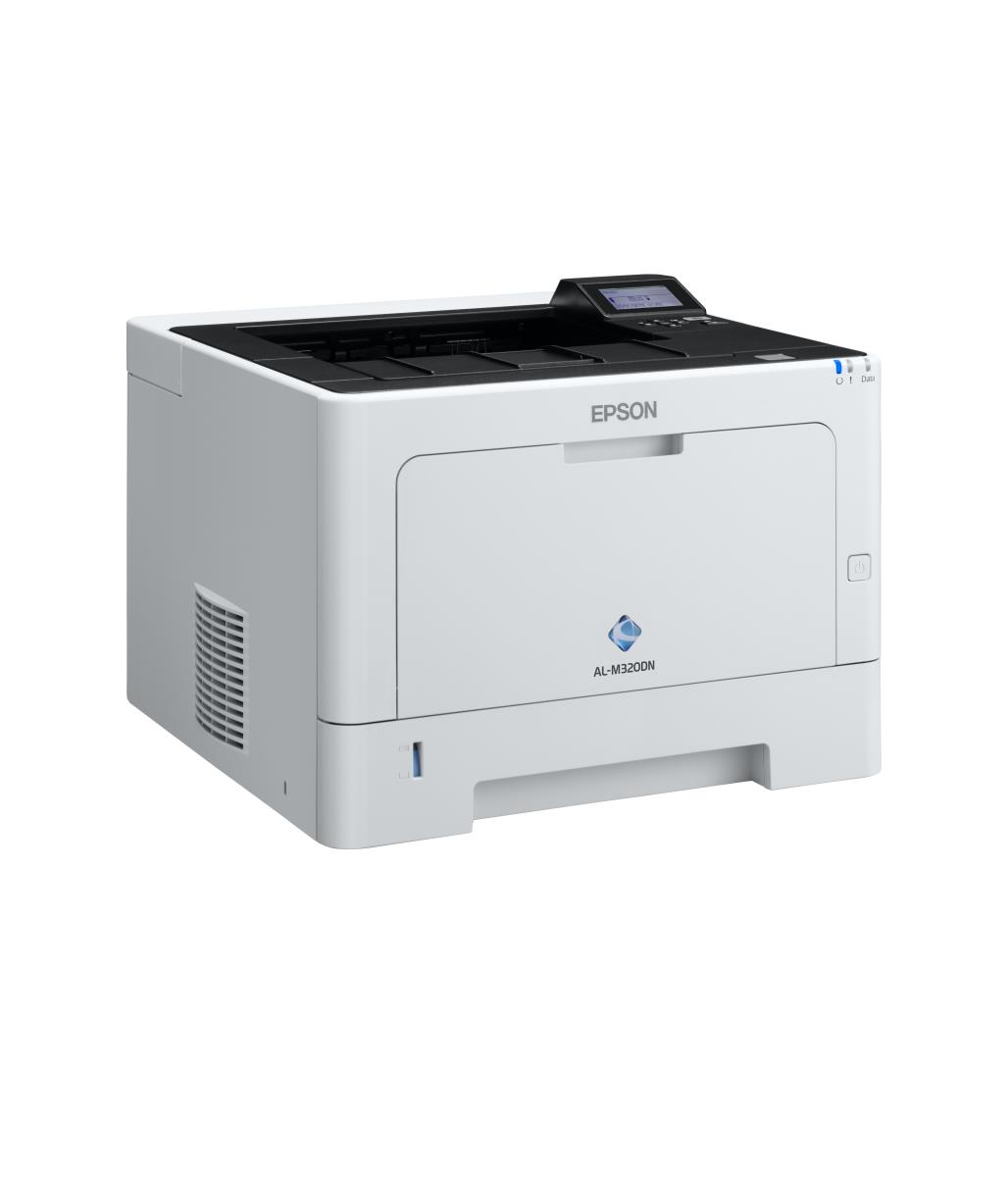

Workforce Al-m320dn - Mono Printer - Laser - A4 - USB / Ethernet

Introduction

Keep productivity high and save your staff from hassle
An up to 40ppm print speed and first page out in less than 6.4 seconds1, means you can count on this printer for fast results, even at 1200 x 1200dpi. Benefit from easy sharing across workgroups with built in Gigabit Ethernet connectivity, and take advantage of high media versatility with support for A4, A5, A6 and headed paper, plus envelopes, transparencies and postcards.

High durability
It has a duty cycle of up to 50,000 pages2, so businesses can be confident that their investment in the Epson range is a sound one.

Ease of use

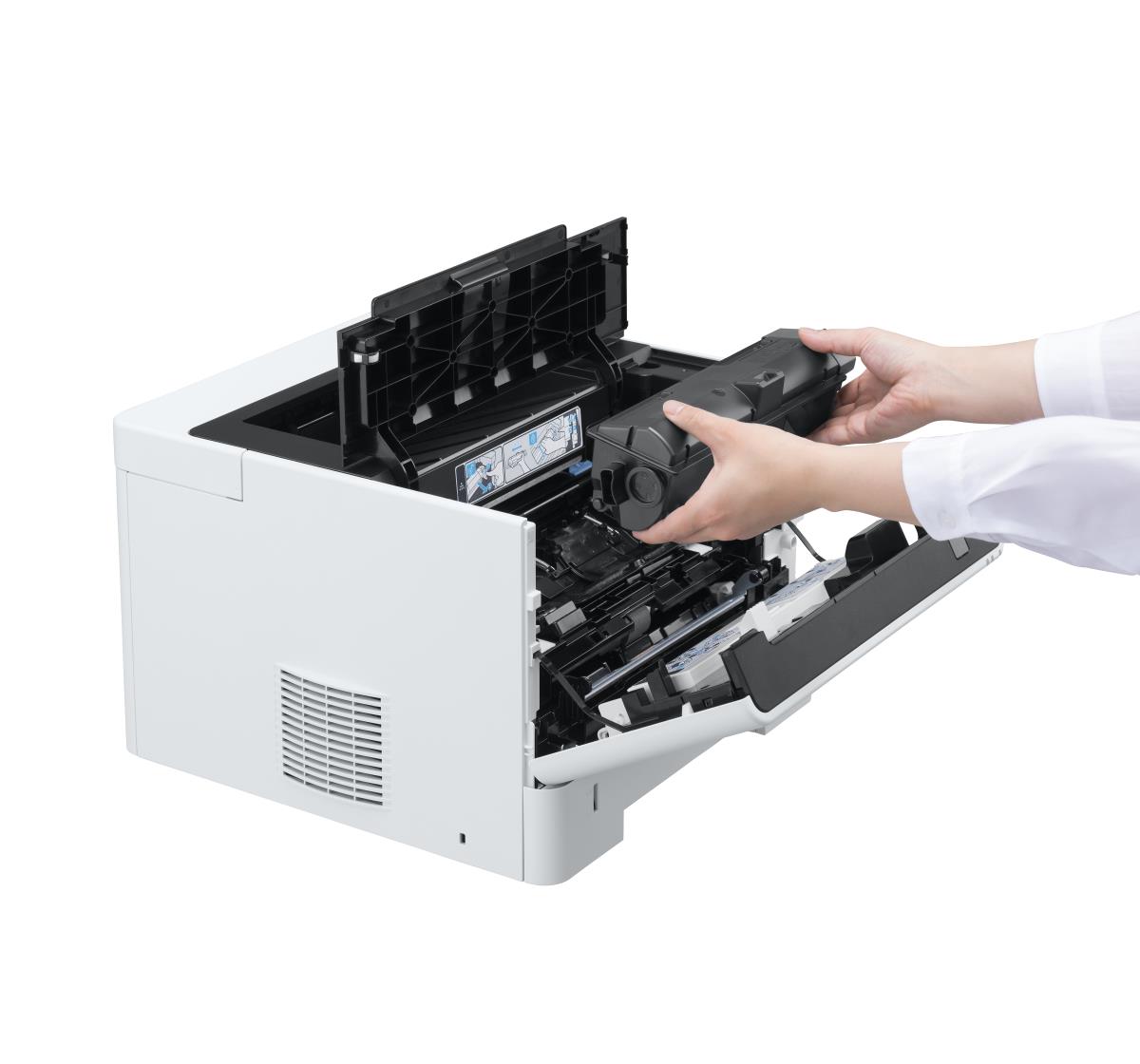

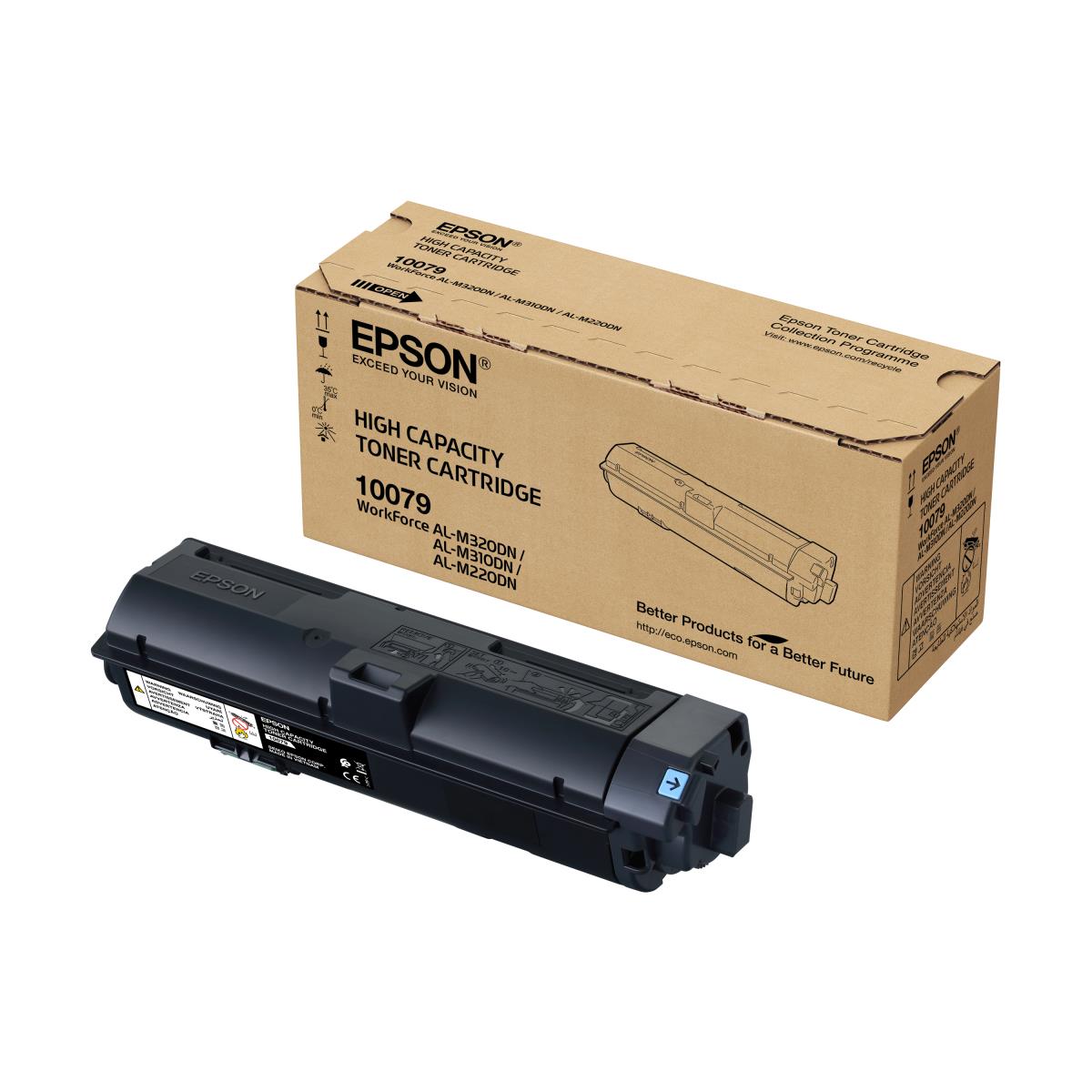

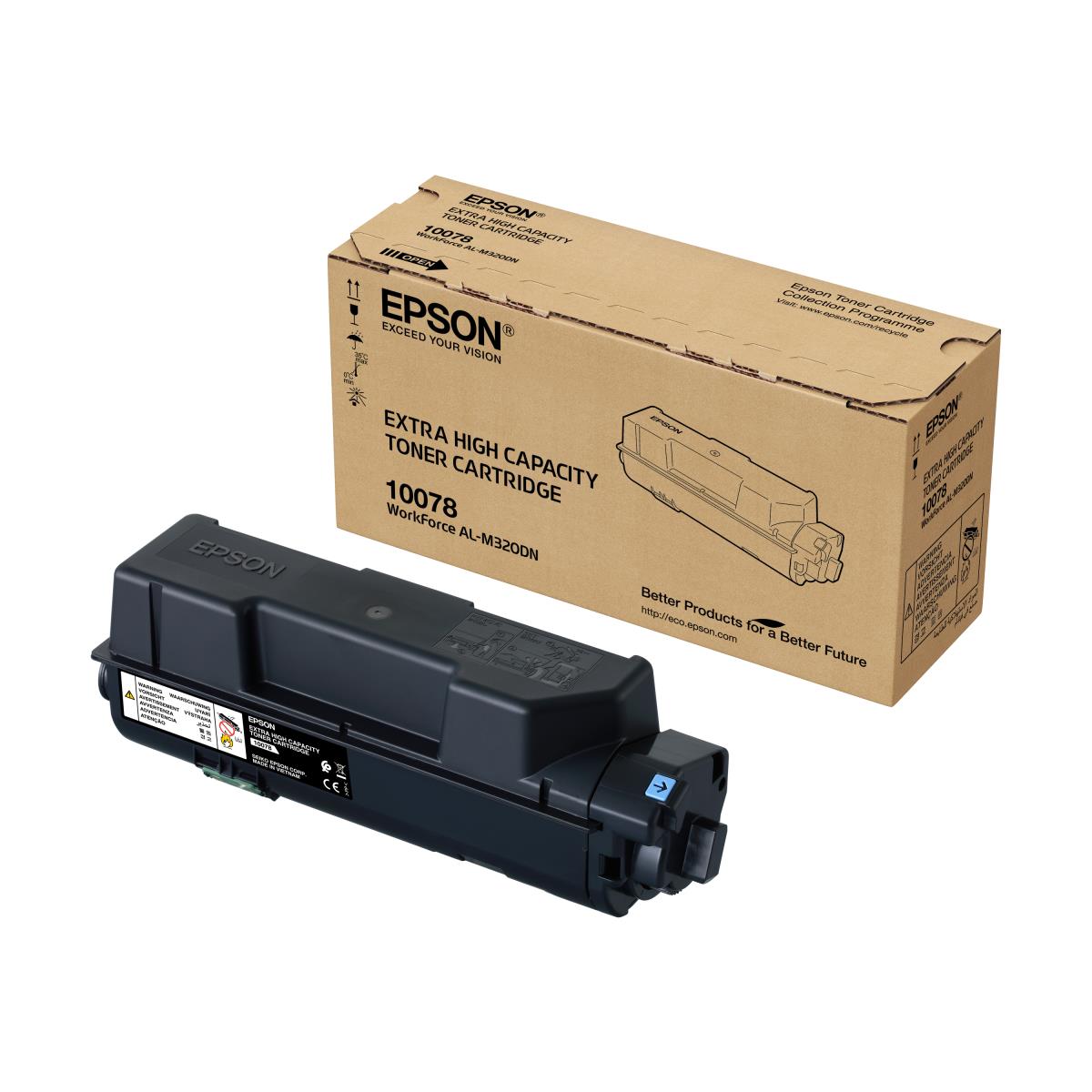

Large maximum paper capacity (max 850 sheets) and toner yield (up to 13,300 pages3) means less time spent re-stocking the machine. Just push a button to open the device for a simple and logical way to remove and replace the toner, so staff spend less time replacing supplies.

Advanced connectivity, integration and security
Place your device next to workgroups or on desks thanks to its smaller footprint. PDL printer emulations including PCL6, PostScript 3 and PDF 1.7, along with the advanced IPv6 protocol and Gigabit Ethernet support, make this printer ideal for business environments. Advanced IPSec and SSL support help improve security when printing sensitive materials, and print securely and confidentially with Email Print for Enterprise compatiblity4.

Printing

Colour

N

Print technology

Laser

Duplex printing

Y

Maximum resolution

1200 x 1200 DPI

Print speed (black, normal quality, A4/US Letter)

40 ppm

Duplex print speed (black, normal quality, A4/US Letter)

20 ppm

Warm-up time

15 s

Time to first page (black, normal)

6 s

Features

Maximum duty cycle

50000 pages per month

Number of print cartridges

1

Page description languages

PCL 5c,PCL 6,PDF 1.7,Epson ESC/P2,ESC/Page,Epson FX,Epson I239X,PostScript 3

Country of origin

Vietnam

Input & output capacity

Total number of input trays

1

Total input capacity

350 sheets

Total output capacity

250 sheets

Paper input type

Paper tray

Multi-Purpose tray

Y

Multi-Purpose tray input capacity

100 sheets

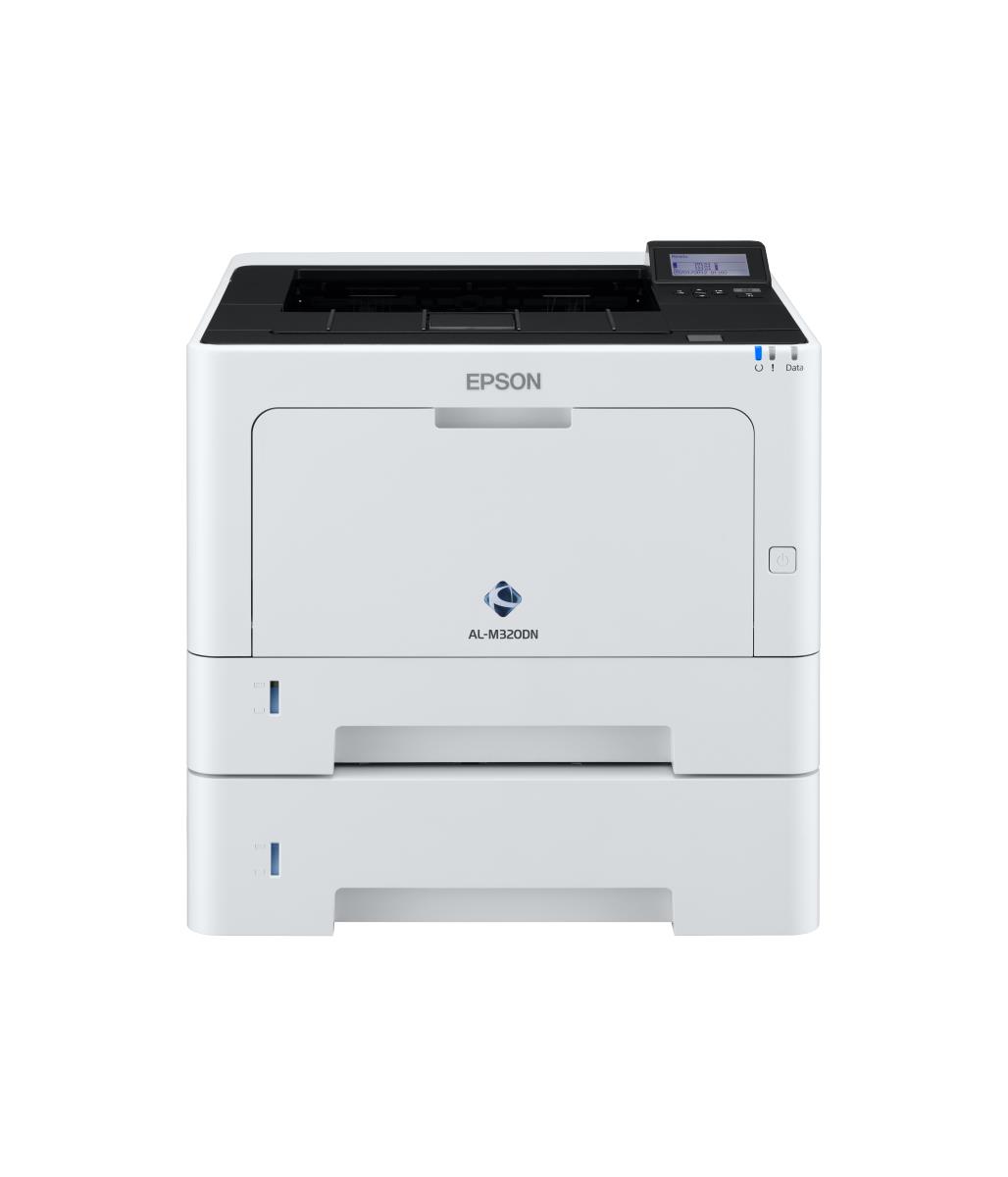

Maximum input capacity

850 sheets

Paper handling

Maximum ISO A-series paper size

A4

ISO A-series sizes (A0...A9)

A4,A5,A6

ISO B-series sizes (B0...B9)

B5

Non-ISO print media sizes

Letter

Paper tray media weight

60 - 220 g/m²

Ports & interfaces

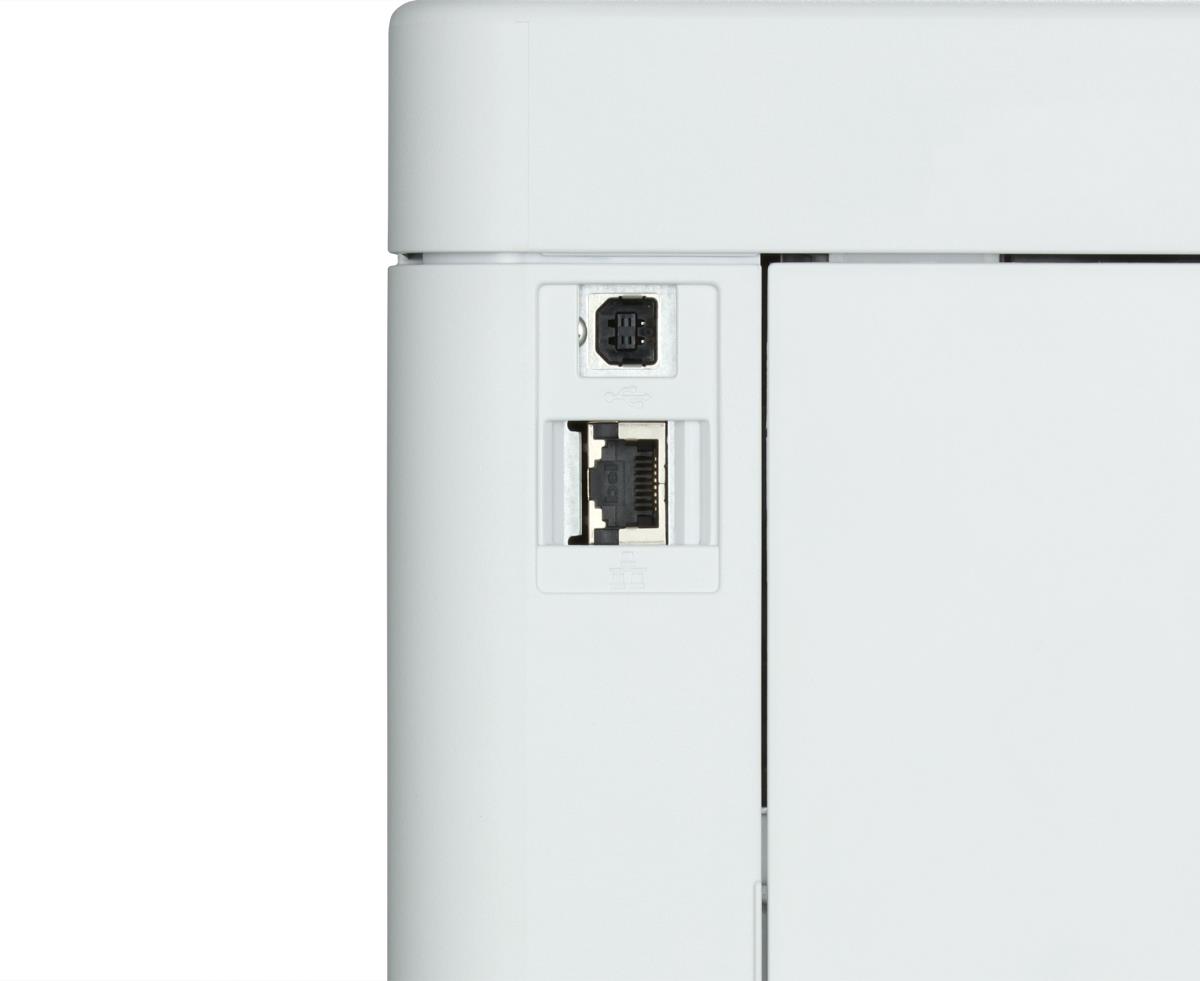

Standard interfaces

Ethernet, USB 2.0

USB connector

USB Type-B

Network

Network ready

Y

Wi-Fi

N

Ethernet LAN

Y

Cabling technology

10/100/1000Base-T(X)

Ethernet LAN data rates

10,100,1000 Mbit/s

Management protocols

HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, SSDP, SLP, WSD, LLTD, Ping, IEEE 802.1X, SNMP 1.0, SNMP 3.0

Performance

Internal memory

1024 MB

Built-in processor

Y

Processor frequency

750 MHz

Sound pressure level (printing)

52 dB

Sound power level (printing)

6.6 dB

Sound power level (standby)

4.6 dB

Design

Product colour

Black, White

Built-in display

Y

Certification

EN61000-3-2, EN61000-3-3

Power

Power consumption (printing)

609 W

Power consumption (max)

870 W

Power consumption (ready)

7 W

Power consumption (standby)

2.36 W

Power consumption (off)

0.05 W

AC input voltage

220 - 240 V

AC input frequency

50/60 Hz

System requirements

Windows operating systems supported

Windows 10,Windows 7,Windows 8,Windows 8.1,Windows Vista,Windows XP

Mac operating systems supported

Mac OS X 10.6 Snow Leopard

Linux operating systems supported

Y

Server operating systems supported

Windows Server 2003,Windows Server 2012 R2,Windows Server 2016

Operational conditions

Operating temperature (T-T)

10 - 32.5 °C

Operating relative humidity (H-H)

15 - 80%

Storage relative humidity (H-H)

15 - 80%

Sustainability

Sustainability certificates

ENERGY STAR

Weight & dimensions

Width

375 mm

Depth

393 mm

Height

285 mm

Weight

12.8 kg

Packaging data

Package width

505 mm

Package depth

515 mm

Package height

400 mm

Package weight

18.1 kg

Packaging content

Bundled software

EpsonNet Config

Logistics data

Pallet gross width

80 cm

Pallet gross length

120 cm

Pallet gross height

2.15 m

Products per pallet layer

2 pc(s)

Products per pallet

10 pc(s)

Pallet width (UK)

100 cm

Pallet length (UK)

120 cm

Pallet height (UK)

2.15 m

Products per pallet layer (UK)

2 pc(s)

Products per pallet (UK)

20 pc(s)

Other features

Safety

IEC60950-1, IEC60825-1

Compatible operating systems

Citrix XenApp 7.x, Linux, Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP

Scanning noise level

52 dB

Noise level

52 dB

Supported network protocols

LPR, FTP, IPP, Port 9100, WSD, Net BIOS über TCP/IP, TCP/IPv4, TCP/IPv6, IPSec

Quantity per pack

1 pc(s)
