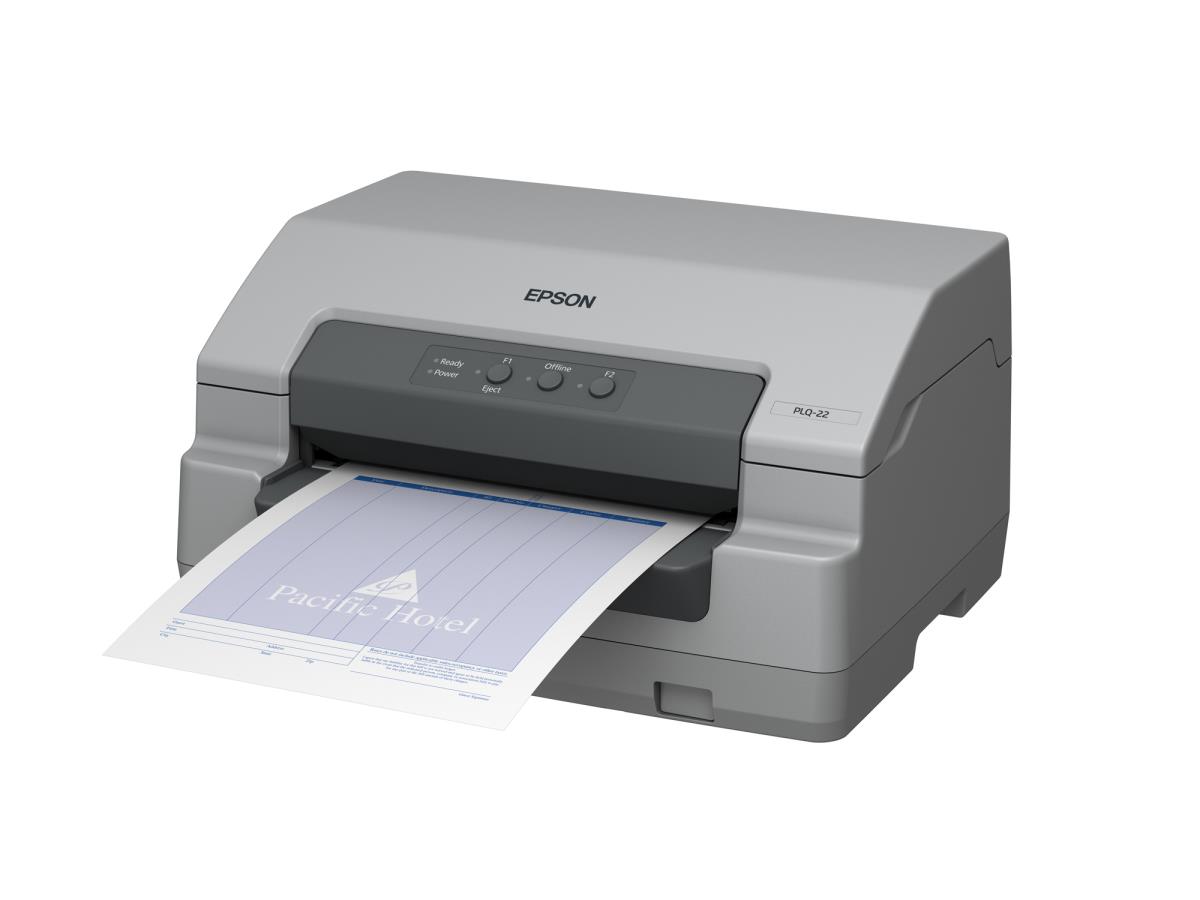

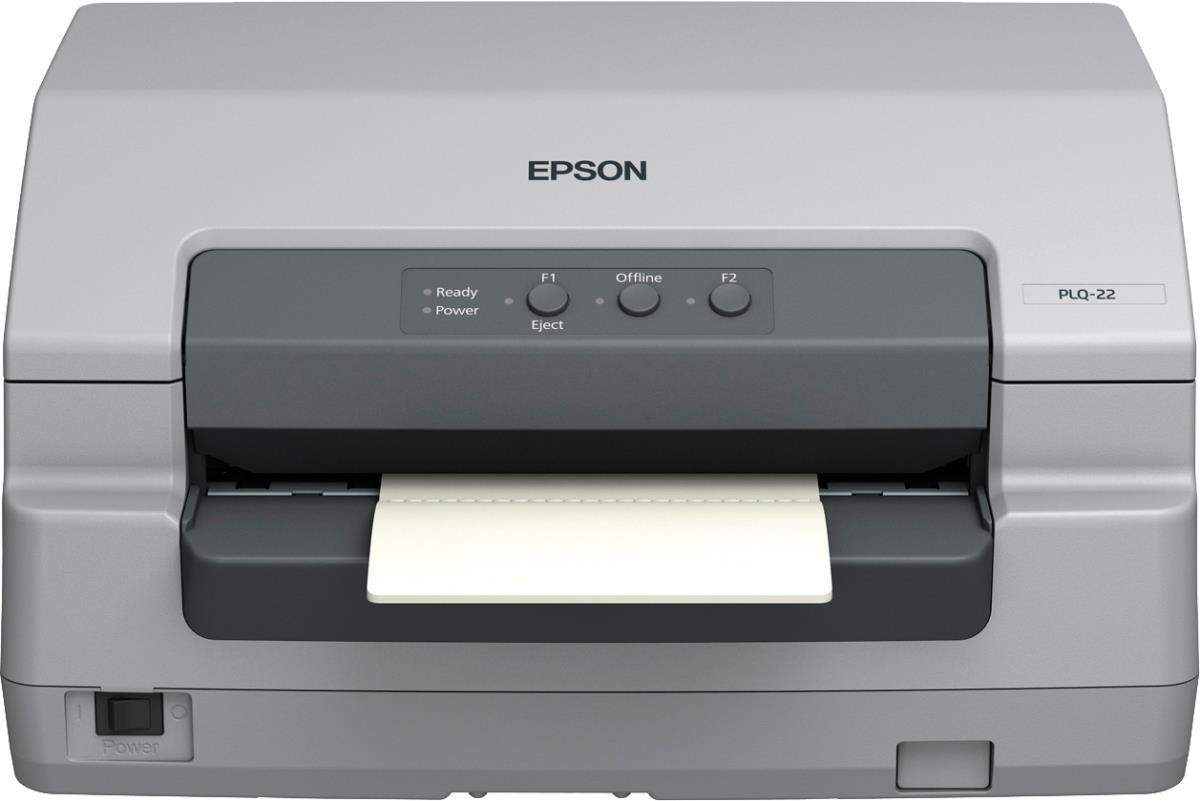

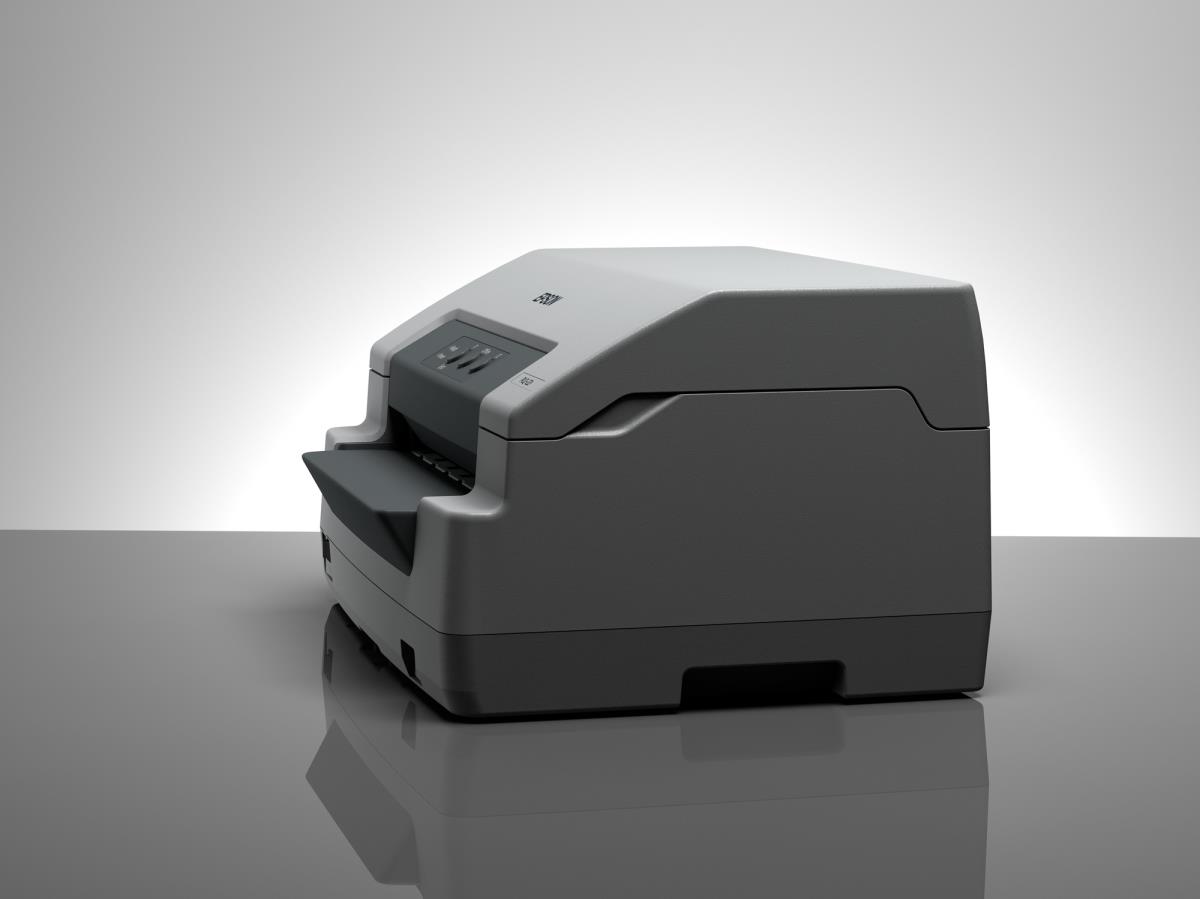

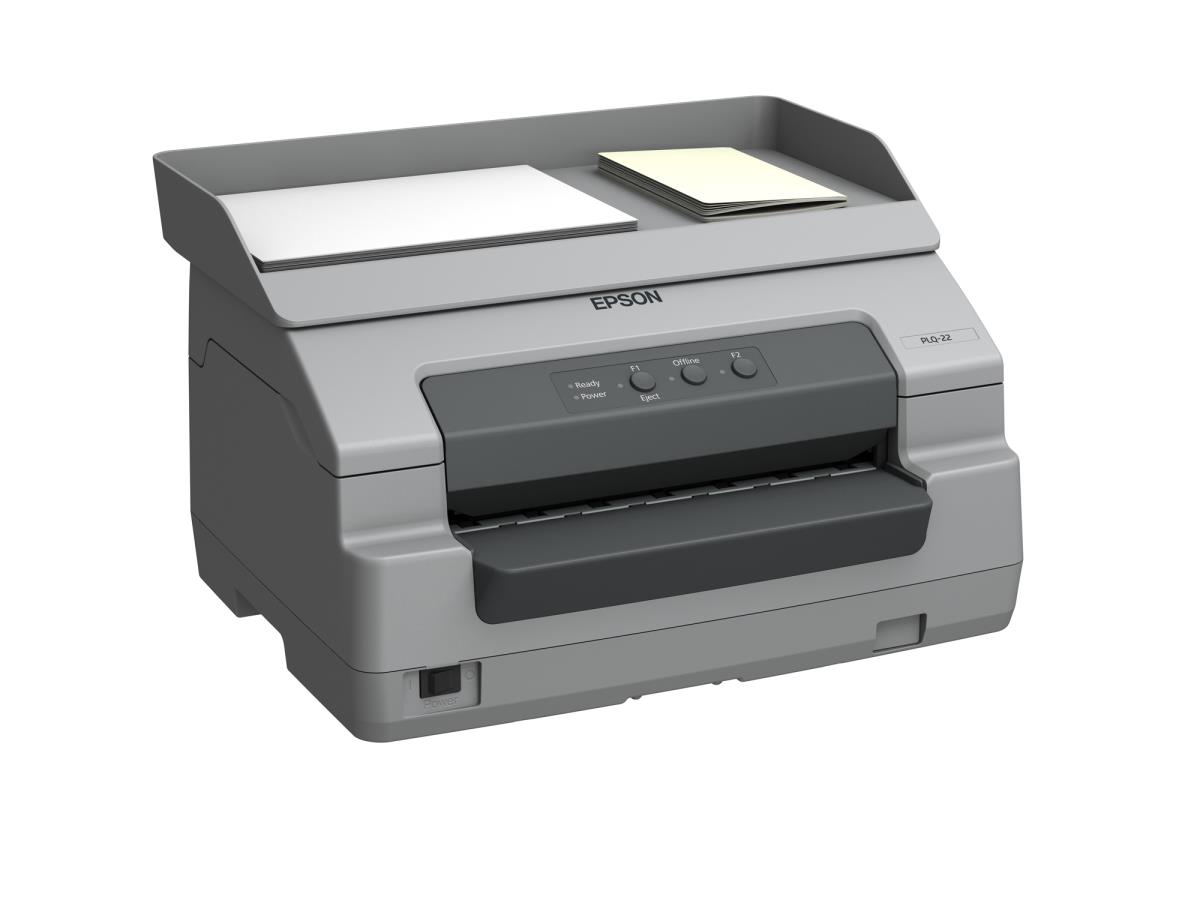

Plq-22 - Passbook Printer - Dot Matrix - A4 - USB / Parallel / Serial

Introduction

Customers and staff alike will appreciate the PLQ-22/22M's unobtrusive noise levels, which are as low as 51dBA. It's efficient, too - the print speed enhancer enables fast printing of bit image data under Windows® environments to help cut queues.

The 'M' version has a high-accuracy MICR/MSRW head for smooth, trouble-free handling of cheques and passbooks.

Low total cost of ownership
Delivering substantial cost and energy savings, the PLQ-22/22M is qualified by ENERGY STAR®, and has a very low standby power consumption of 4.5W. Further reducing TCO, it can print around 10 million characters in draft mode between ribbon changes.

Flexible
The PLQ-22/22M offers excellent passbook handling and data processing flexibility, thanks to its 128kb memory and capacity for passbooks up to 2.6mm thick.

Easy installation
Simple to install, the PLQ-22/22M features a choice of emulations plus parallel, serial and USB interfaces as standard for an easy fit into most IT environments.

Printing

Maximum resolution

360 x 360 DPI

Maximum printing width (columns)

94

Maximum print speed

480 cps

Maximum print speed (draft)

360 cps

Maximum print speed (LQ)

120 cps

Character pitch

10 cpi

Maximum number of copies

7 copies

Paper handling

Maximum print size

A4 / Letter (216 x 297 mm)

Cut sheet width range

65 - 245 mm

Cut sheet length range

67 - 297 mm

Features

Product colour

Grey

Buffer size

128 KB

Sound pressure level (printing)

54 dB

Page description languages

Epson ESC/P2,PPDS

Country of origin

Indonesia

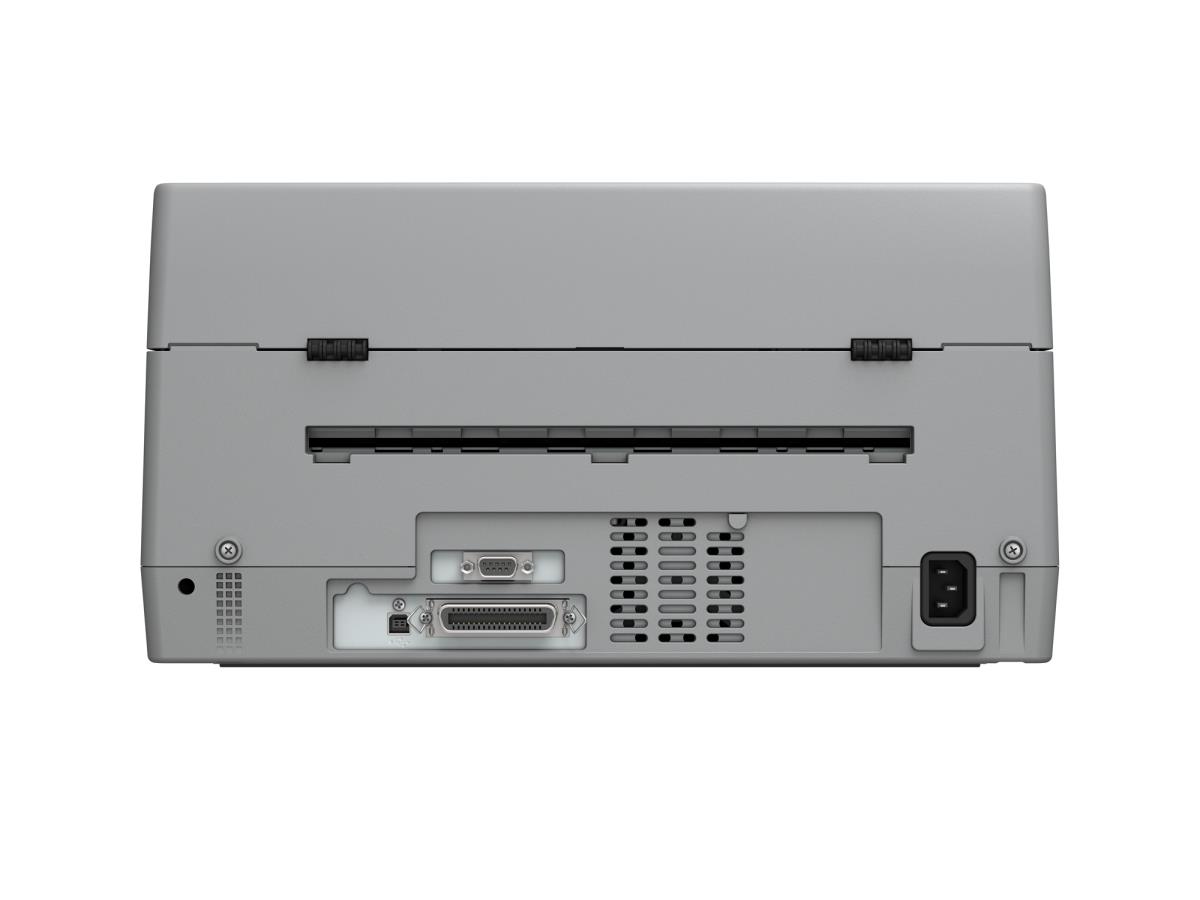

Ports & interfaces

Standard interfaces

Parallel, RS-232, USB 2.0

Endurance

Print head

24-pin

Print direction

Bi-directional

Print head life

400 million characters

Ribbon life (black, draft)

10 million characters

Ribbon life (black, LQ)

5 million characters

Mean time between failures (MTBF)

10000 h

Power

Power consumption (typical)

65 W

AC input voltage

220 - 240 V

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

10 - 80%

System requirements

Windows operating systems supported

Windows 7,Windows 7 Professional,Windows 8,Windows Vista,Windows XP,Windows XP Home x64

Weight & dimensions

Width

384 mm

Depth

280 mm

Height

203 mm

Weight

8.2 kg

Packaging data

Quantity per pack

1 pc(s)

Package width

260 mm

Package depth

450 mm

Package height

365 mm

Package weight

9.48 g

Other features

Media types supported

Passbooks, cheque

Connectivity technology

Wired

Print technology

Dot matrix

Box contents

Power cable, Ribbon, Setup guide, User manual (CD), Warranty document

Needles

24

Logistics data

Products per pallet

32 pc(s)

Pallet gross length

120 cm

Pallet gross width

80 cm

Pallet gross height

2.47 m

Products per pallet layer

4 pc(s)

Products per pallet layer (UK)

6 pc(s)

Products per pallet (UK)

48 pc(s)

Pallet length (UK)

120 cm

Pallet width (UK)

100 cm

Pallet height (UK)

2.47 m
