Workforce Ds-1660w A4 1200x1200dpi Adf USB3.0 Wi-Fi Power Pdf

Introduction

Intelligent features
Smart colour and image adjustments, including auto crop, skew correction, blank page and background removal, with Epson's Image Processing Technology. With long document mode it's possible scan over three metres (3048mm) of paper single sided.

Flexible placement

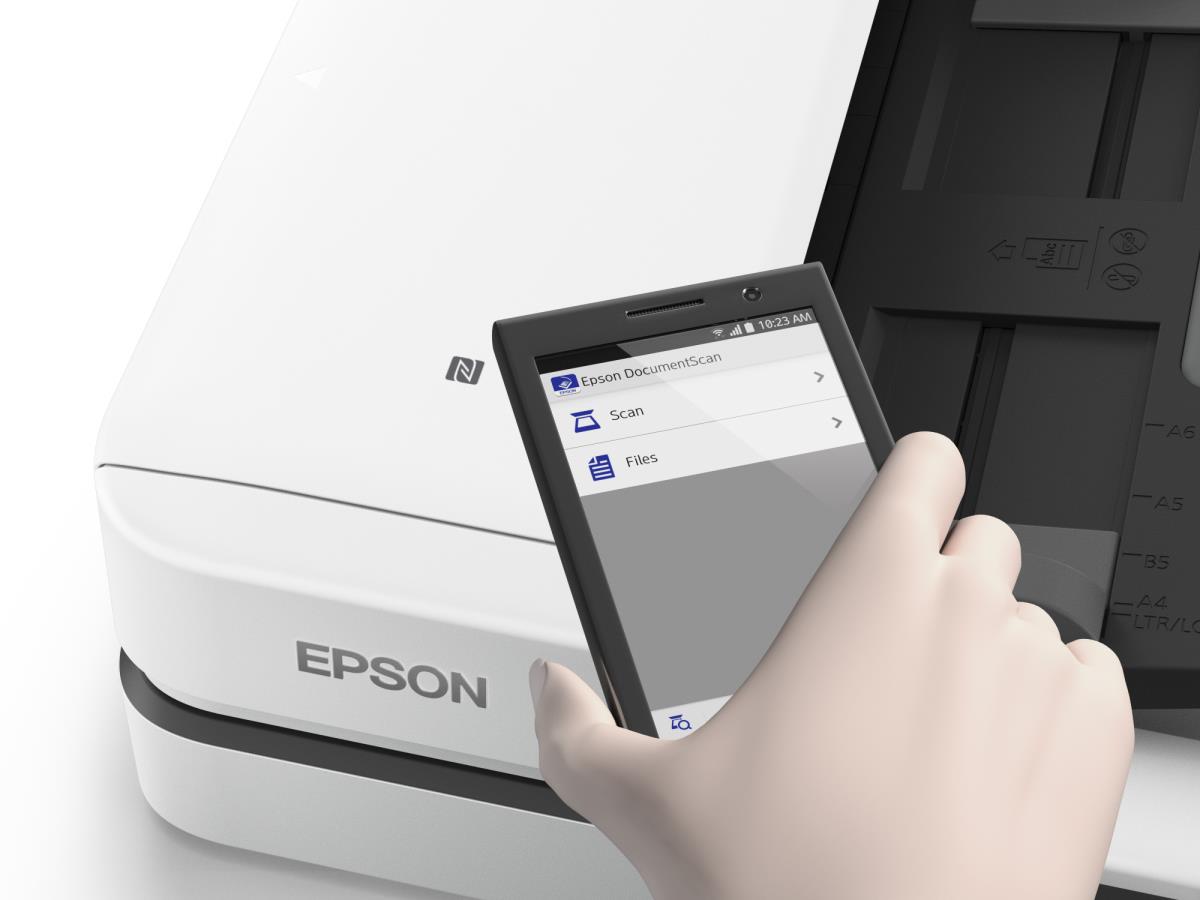

The Wi-Fi and Wi-Fi Direct connectivity on the DS-1660W provide extra convenience to organisations wanting to deploy a dedicated scanning solution that can be accessed easily by many people. With NFC enabled, use the Epson Scan App to take control with your mobile device - then edit and improve digital images before saving and sharing.

Boost your office efficiency
One of the fastest scanners in its class with a 25ppm scan speed. USB 3.0 connectivity means there is no slow down, even when scanning at 300dpi high resolution. Scan both sides of a page with double-sided scanning capability for greater convenience. Create up to 30 jobs with the optional network panel and scan directly to server locations, cloud services and Microsoft SharePoint. Included Epson software enables dual image output; scan once and send to two different destinations. The DS-1660W also encourages easy, one-touch scanning to folders, email, online storage accounts2 and more.

Scanning

Maximum scan size

210 x 297 mm

Optical scanning resolution

600 x 600 DPI

Enhanced scan resolution

1200 x 1200 DPI

Colour scanning

Y

Duplex scanning

Y

ADF scan speed (b/w, A4)

25 ppm

Design

Scanner type

Flatbed scanner

Product colour

Black, White

Display

LCD

Built-in display

Y

Performance

Light source

ReadyScan LED

Scan file formats

PDF,TIFF

Daily duty cycle (max)

1500 pages

Scan drivers

TWAIN

Input capacity

Auto document feeder (ADF) input capacity

50 sheets

Paper handling

Maximum ISO A-series paper size

A4

ISO A-series sizes (A0...A9)

A4,A5,A6

ISO B-series sizes (B0...B9)

B5

Letter

Y

Legal

Y

Maximum scan area (ADF)

210 x 3048 mm

Minimum scan area (ADF)

89 x 127 mm

Ports & interfaces

USB port

Y

USB version

3.2 Gen 1 (3.1 Gen 1)

Standard interfaces

USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN

Power

Power supply type

AC

Network

Wi-Fi

Y

Wi-Fi standards

802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)

Features

Country of origin

Indonesia

Packaging data

Quantity per pack

1 pc(s)

Package width

405 mm

Package depth

520 mm

Package height

195 mm

Package weight

4.842 g

System requirements

Windows operating systems supported

Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64

Mac operating systems supported

Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks

Weight & dimensions

Width

451 mm

Depth

315 mm

Height

120 mm

Weight

3.9 kg

Packaging content

Cables included

AC, USB

Technical details

Sustainability certificates

ENERGY STAR

Logistics data

Products per pallet

40 pc(s)

Products per pallet (UK)

50 pc(s)
