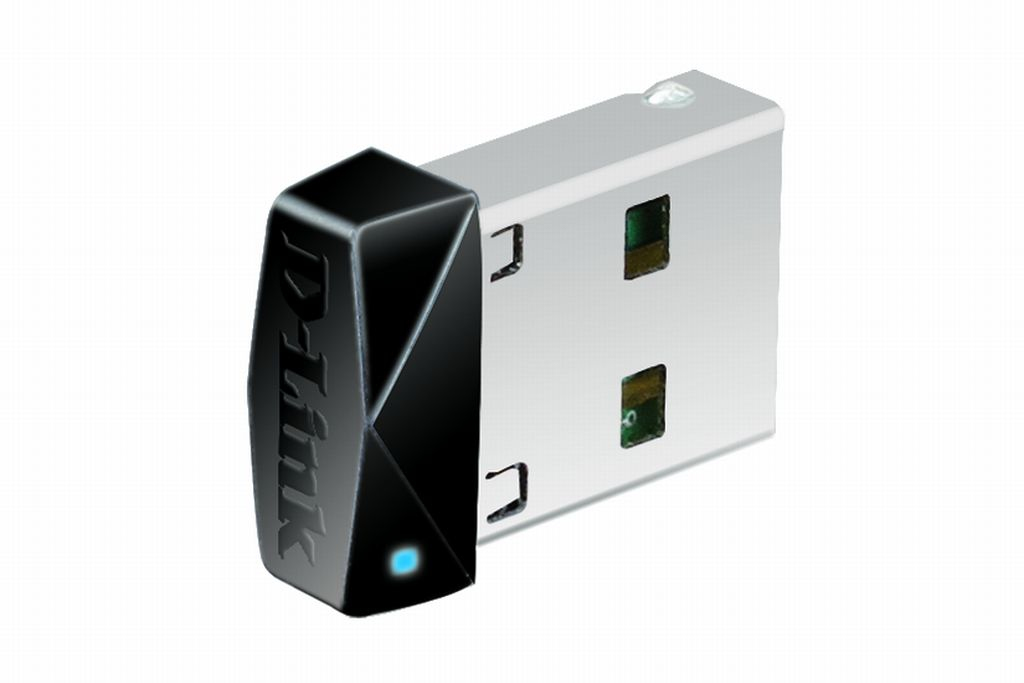

Wireless N 150 Micro USB Adapter

Introduction

HIGH-SPEED WIRELESS NETWORKING
Connect to a high-speed wireless network with the D-Link® Wireless N 150 Pico USB Adapter (DWA-121). The DWA-121 uses Wireless N 150 technology, which provides increased speed and range2 over the Wireless G, giving you a faster, more reliable wireless connection. Wireless N 150 is an excellent solution for everyday activities such as transferring files, browsing the Internet, and downloading multimedia.

COMPACT AND CONVENIENT
The tiny DWA-121 easily connects your desktop or notebook PC to a wireless network for Internet access and file sharing. The Wi-Fi Protected SetupT (WPS)1 feature enables devices to quickly establish a secure connection to an access point or wireless router, eliminating complex encryption codes. The advanced RF design ensures superior wireless performance despite an extremely compact profile.

CONNECT SECURELY TO YOUR WIRELESS NETWORK
To protect your data and privacy, the Wireless N 150 Pico USB Adapter supports WPAT and WPA2T encryption for connecting to a secure wireless network, keeping your network traffic secure.

COMPATIBILITY ASSURANCE
The Wireless N 150 Pico USB Adapter provides a high-speed connection to other Wireless N 150 or 802.11n devices and is backward compatible with 802.11g, ensuring interoperability with a wide range of wireless routers and existing networks.

Ports & interfaces

Connectivity technology

Wireless

Host interface

USB

Interface

WLAN

Network

Maximum data transfer rate

150 Mbit/s

Networking standards

IEEE 802.11b,IEEE 802.11g,IEEE 802.11n

Ethernet LAN

N

Wi-Fi

Y

Wi-Fi band

Single-band (2.4 GHz)

Frequency range

2.4 - 2.4835 GHz

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Wi-Fi standards

802.11b,802.11g,Wi-Fi 4 (802.11n)

Security algorithms

WPA-EAP,WPA-PSK,WPA2-EAP,WPA2-PSK

Design

Product colour

Black

Internal

N

Antenna type

Integrated

Certification

FCC B, IC, WPS

Power

Output voltage

5 V

USB powered

Y

System requirements

Compatible operating systems

Windows XP/Vista/7

Mac operating systems supported

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 65 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

14.3 mm

Depth

18.6 mm

Height

6.1 mm

Packaging data

Package width

138 mm

Package depth

138 mm

Package height

20 mm

Package weight

5 g

Logistics data

Shipping (inner) case net weight

4.08 kg

Shipping (inner) case length

43.5 cm

Shipping (inner) case height

29.5 cm

Shipping (inner) case width

29.5 cm

Products per shipping (inner) case

80 pc(s)

Pallet gross weight (air)

254.4 kg

Master (outer) cases per pallet (air)

48 pc(s)

Products per pallet (air)

3840 pc(s)

Pallet height (air)

199.5 cm

Pallet gross weight (sea)

254.4 kg

Master (outer) cases per pallet (sea)

48 pc(s)

Products per pallet (sea)

3840 pc(s)

Pallet height (sea)

199.5 cm

Shipping (inner) case gross weight

4.78 kg

Pallet gross width

120 cm

Pallet gross length

110 cm

Other features

Link/Act LED

Y
