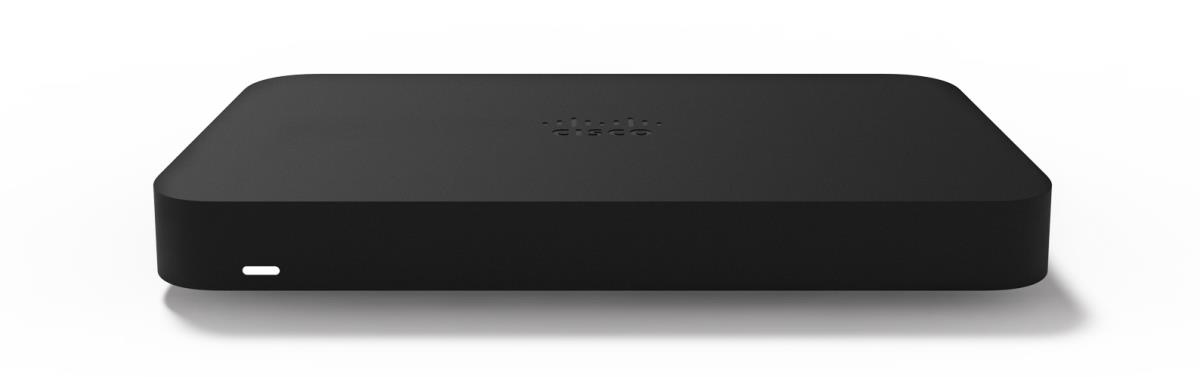

Meraki Z3c Lte Teleworker Gateway Worldwide

Introduction

Fast, Reliable Connectivity for the Modern Teleworker
Hardware
- 802.11ac Wave 2 WiFi for fast and reliable connectivity
- 4 wired ports with one PoE-powered port, ideal for phones
- 1 GbE WAN port, 4 GbE LAN ports
- 3G / 4G failover via CAT 3 LTE or USB modem
- Sleek, low profile design with optional desk stand

Wireless
- Dual-band 802.11ac Wave 2 radios
- 2x2 MU-MIMO, up to 1.3 Gbps data rate
- Supports up to 4 SSIDs

Traffic shaping and application management
- Layer 7 application visibility and traffic shaping
- Application prioritization

Teleworker gateway services
- Stateful firewall separates corporate and personal traffic
- Extend VoIP phones over WAN
- 802.1x support for wired port authentication
- Auto VPNT self-configuring site-to-site VPN
- Access corporate HQ via site-to-site VPN

Cloud-based centralized management
- Managed centrally over the Web
- Classifies applications, users and devices
- Zero-touch, self-provisioning deployments

Data transmission

Firewall throughput

100 Mbit/s

VPN throughput

50 Mbit/s

VoIP

Y

Performance

Antenna gain level (max)

4 dBi

Antennas quantity

4

Syslog

Y

Certification

FCC (US), IC, C-Tick, RoHS

Network

Wi-Fi

Y

Wi-Fi standards

802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)

Wi-Fi data rate (max)

1300 Mbit/s

Networking standards

IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x,IEEE 802.3af

Number of users

5 user(s)

Point-to-point protocol over Ethernet (PPPoE)

Y

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Security

Security algorithms

IPSec,SSID,WPA2-PSK

Management features

LED indicators

Y

Web-based management

Y

Ports & interfaces

Connectivity technology

Wired

Gigabit Ethernet (copper) ports quantity

4

USB 2.0 ports quantity

1

Ethernet LAN data rates

10,100,1000 Mbit/s

WAN connection

Ethernet (RJ-45), Mobile network (USB)

Power

Input current

0.92 A

Power supply

50 W

Number of power supply units

1

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Dimensions (WxDxH)

200 x 112 x 26 mm

Weight

487 g
