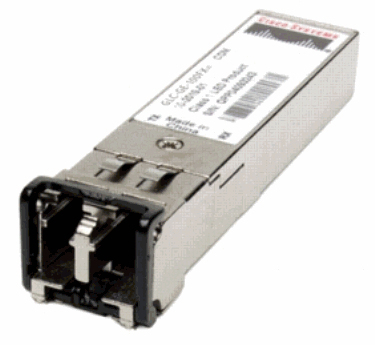

Cisco Meraki Sfp (mini-gbic) Transceiver Module 1000base-lx10 Upto 10km 1310nm

Introduction

Cisco offers a comprehensive range of pluggable optical modules for the Cisco ONS family of multiservice platforms. The wide variety of modules gives you flexible and cost-effective options for all types of client interfaces. Cisco offers a range of GBICs for Gigabit Ethernet use, a wide variety of SFP modules, XFP modules and has recently introduced SFP+, CXP and CFP pluggable modules. These small, modular optical interface transceivers offer a convenient and cost-effective solution for an array of applications in the data center, campus, metropolitan-area access and ring network, storage area network, and long-haul network.

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

1000 Mbit/s

Interface type

SFP

Single-mode fiber (SMF) supported

Y

Fiber optic connector

LC

Fiber cable diameters supported (core/cladding)

9/125 µm

SFP transceiver standard

LX

Networking standards

IEEE 802.3,IEEE 802.3ab,IEEE 802.3u

Cabling technology

1000BASE-LX10

Auto MDI/MDI-X

Y

Features

Hot-Plug support

Y

Certification

MSA

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

10 - 85%

Weight & dimensions

Width

13.4 mm

Depth

56.5 mm

Height

8.5 mm
