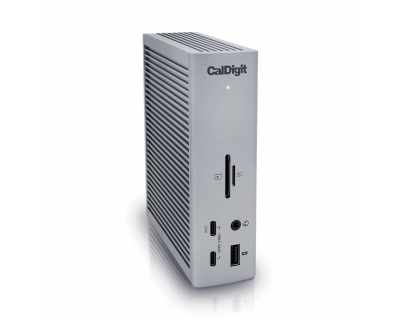

Thunderbolt Station 4 - 3xtb4, 1xdp, 3xUSB-c, 5xUSB-a, Ethernet, Sd Reader - 98w Charging

Introduction

Not only is the TS4 the most powerful dock ever created, the dock with the most ports, the dock with the highest charging capabilities, the first dock with 2.5GbE, but it is also the dock that will drive us into the Thunderbolt 4 generation.
The TS4 offers a staggering 18 ports of connectivity, the most featured on any Thunderbolt dock ever. In addition to this, the TS4 provides up to 98W power delivery and supports resolutions up to 8K1 when connecting a single monitor.

For anyone looking to connect dual displays, the TS4 supports up to dual 6K 60Hz displays on Apple M1 Pro and M1 Max-based computers. Users on Intel-based Macs, Windows, or Chrome OS can connect up to dual 4K 60Hz displays2. Original M1-based Macs do not support dual displays.

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

3

USB Power Delivery up to

98 W

DisplayPorts quantity

1

DisplayPort version

1.4

Thunderbolt 4 ports quantity

3

Line-in

Yes

Line-out

Yes

Network

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

100000 Mbit/s

Performance

Card reader integrated

Yes

Compatible memory cards

SD

Product colour

Grey

Hub interfaces

3.5mm, DisplayPort, Lightning, RJ-45, Thunderbolt 4, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Power

Power supply type

DC

Weight & dimensions

Width

42 mm

Depth

113 mm

Height

141 mm

Weight

640 g

Packaging data

Quantity per pack

1 pc(s)

Packaging content

Cables included

DC, Thunderbolt

AC adapter included

Yes
