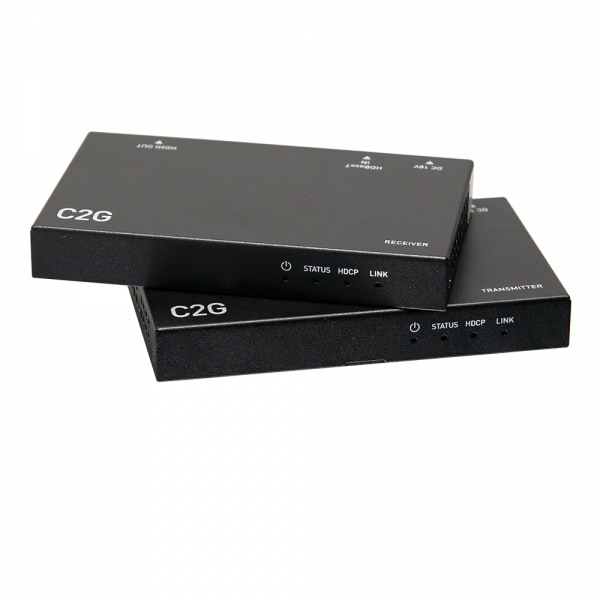

HDMI HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz

Introduction

The HDMI HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 40m to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution for delivering uncompressed HDMI video and audio to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

This HDMI HDBaseT Extender supports 4K resolutions at 60Hz up to 40m and 1080p at 60Hz up to 70m when using a single, recommended Cat6a Ethernet cable. Also, extend 4K at 60Hz up to 35m and 1080p at 60Hz up to 60m when using Cat5e or Cat6 cabling.

This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. The bi-directional PoC (Power over Cable) function allows both the transmitter and the receiver to be powered on when either side is plugged into power, allowing for greater flexibility in installations.

Features

Type

AV transmitter & receiver

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat5e,Cat6a,Cat7

Maximum transfer distance

39.62 m

Maximum refresh rate

60 Hz

Bidirectional

Y

HDCP

Y

Material

SGCC

Product colour

Black

Ports & interfaces

Ethernet LAN

Y

RJ-45 input ports

1

RJ-45 output ports

1

HDMI in

1

Number of HDMI outputs

1

DC-in jack

Y

Power

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Operating voltage

18 V

Input current

0.6 A

Output current

1 A

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Weight & dimensions

Weight

630 g

Packaging data

Quantity per pack

1 pc(s)

Packaging content

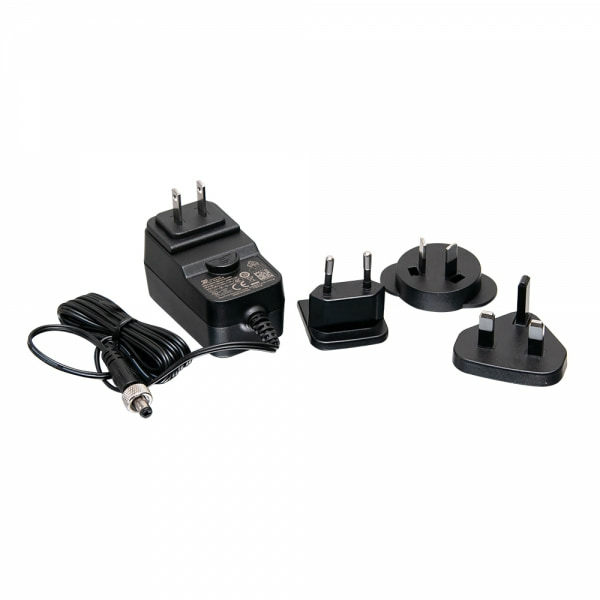

AC adapter included

Y

Mounting kit

Y
