Compact Hdmi Switch 2 Port (89050)

Introduction

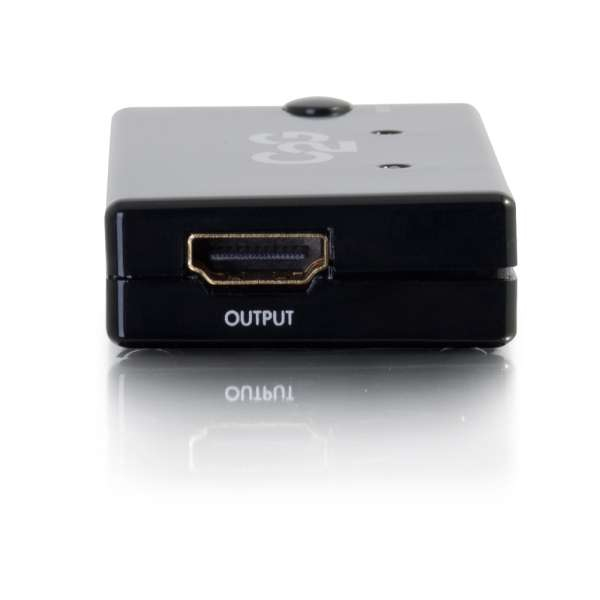

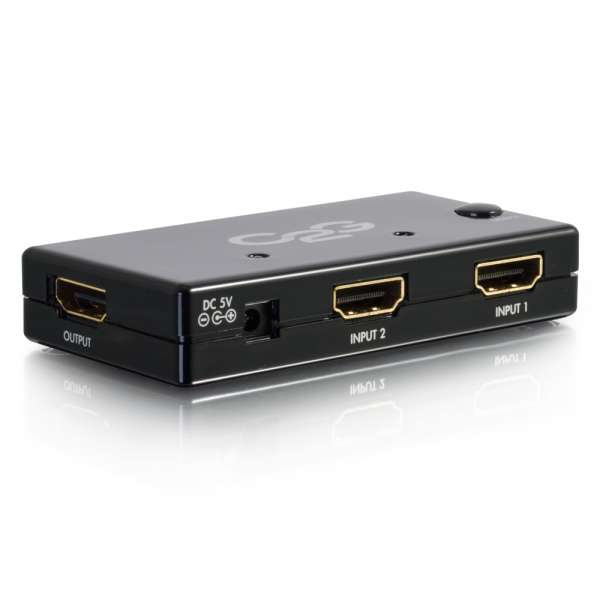

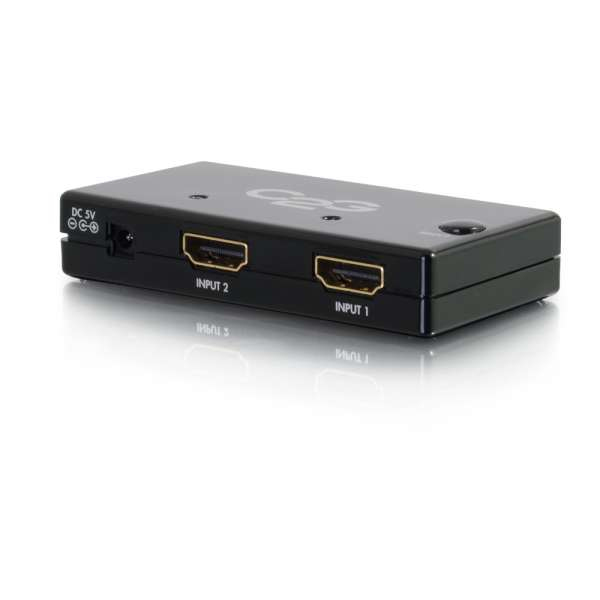

This 2-port HDMI switch allows you to conveniently switch between two HDMI source devices on a single HDMI-enabled display supporting high definition video up to a 1080p resolution. In situations where a display does not have enough HDMI inputs to accommodate multiple source devices, this switch provides additional high-definition digital inputs and is compatible with HDMI-equipped devices such as Blu-ray and DVD players, high-definition satellite boxes and gaming consoles, including Sony PlayStation 4 (PS4) and Xbox ONE. The auto-switching functionality detects when a new device is connected or powered on and will automatically switch to that port. When the device in use is disconnected or powered off, it will switch to the device that was connected first. Alternatively, manual-switching functionality is available for situations where more control is desired - simply use the select button on top of the switch to switch back and forth between the two inputs. The power required for operation of this switch is provided from the HDMI source devices, so no separate power adapter is required.

Ports & interfaces

Video port type

HDMI

HDMI in

2

Number of HDMI outputs

1

Features

Product colour

Black

Supported graphics resolutions

1024 x 768 (XGA),1280 x 1024 (SXGA),1920 x 1080 (HD 1080),640 x 480 (VGA),800 x 600 (SVGA)

Supported video modes

1080p

Bandwidth

2.5 Gbit/s

Weight & dimensions

Weight

284 g

Dimensions (WxDxH)

86 x 44 x 16 mm

Operational conditions

Operating temperature (T-T)

-5 - 40 °C

Storage temperature (T-T)

-20 - 64 °C

Operating relative humidity (H-H)

10 - 90%
