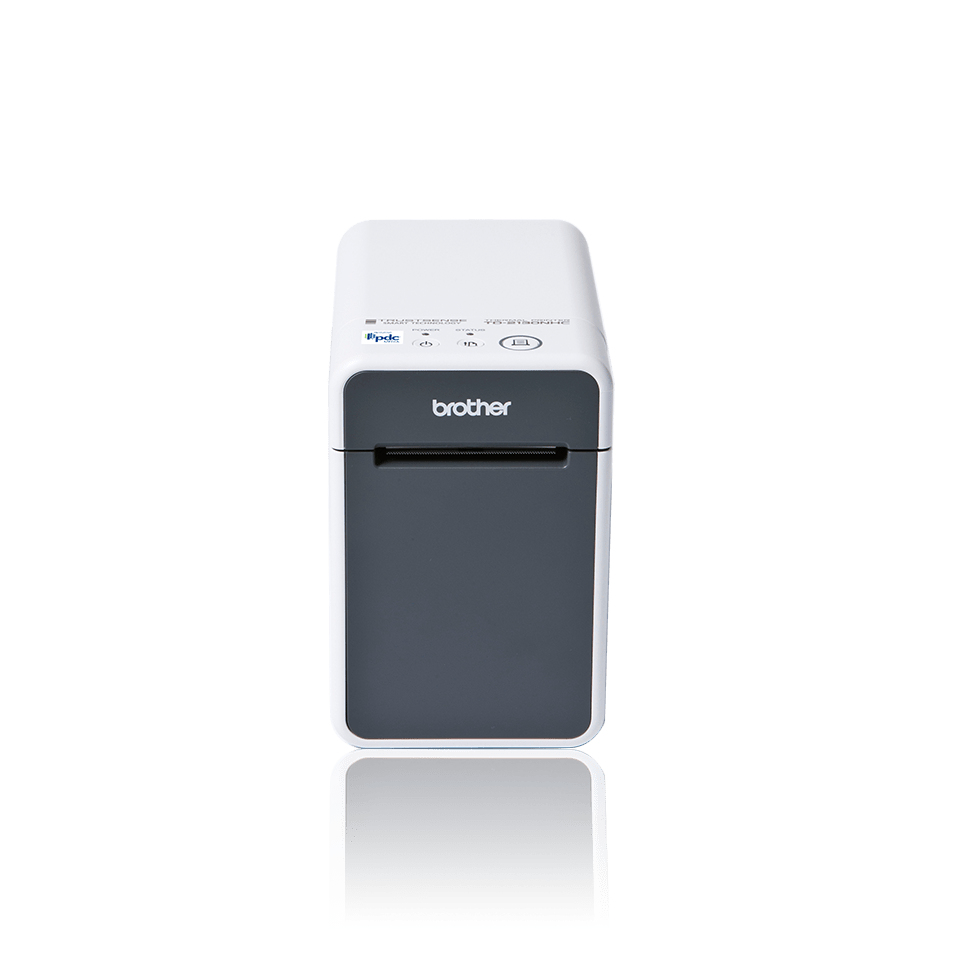

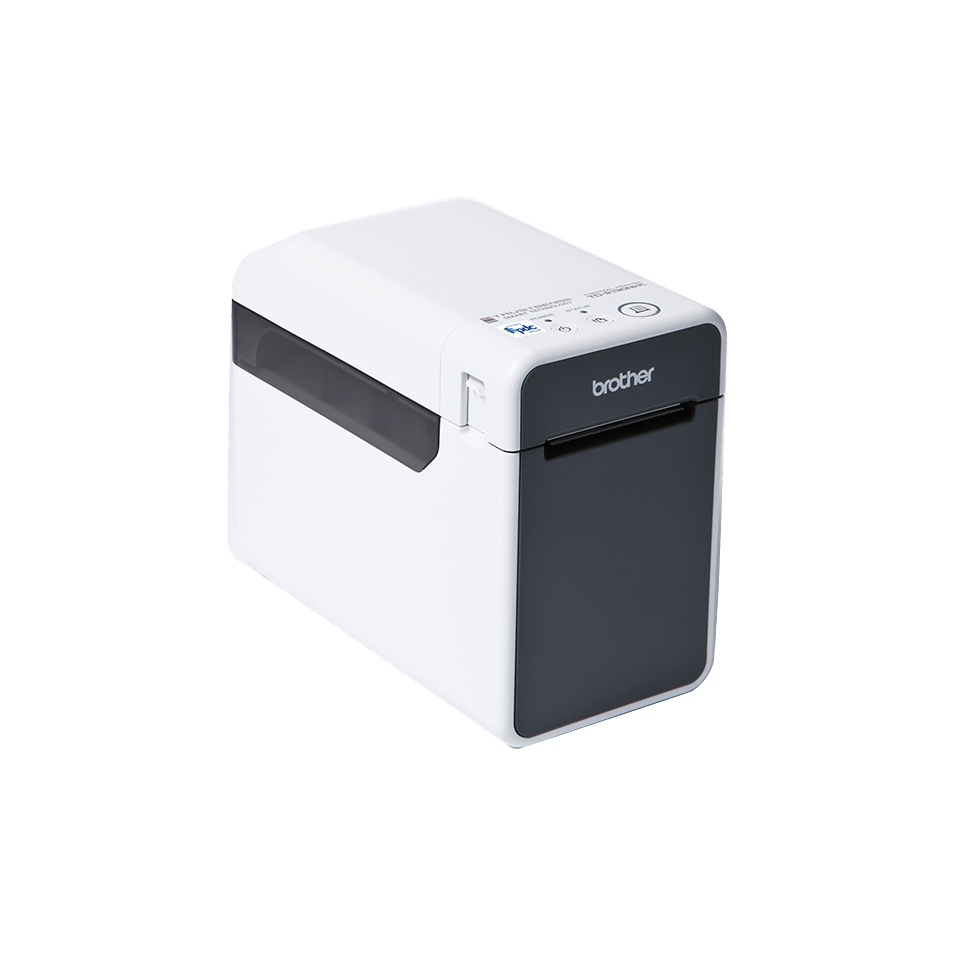

Td-2130nhc - Healthcare Label Printer - Direct Thermal - 63mm - Rs232c / USB / Ethernet

Introduction

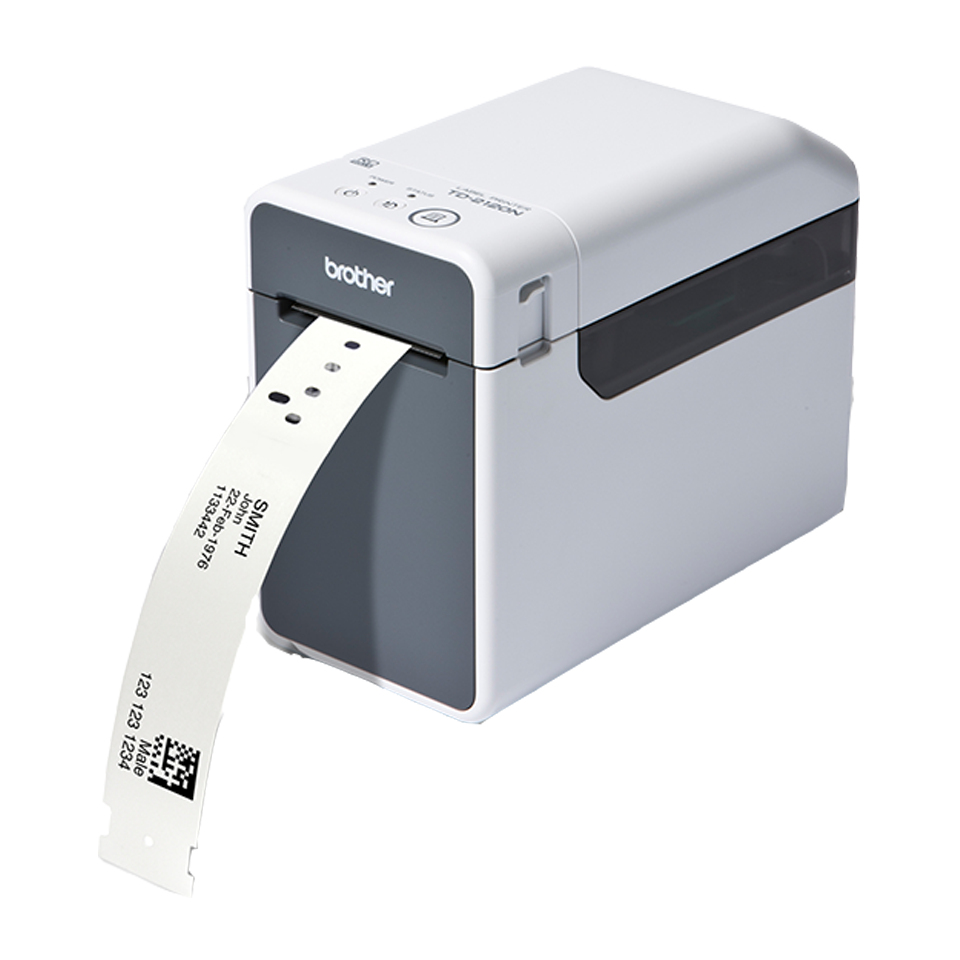

Versatile and portable patient wristband and label printer
Working in partnership with PDC Healthcare, we have a wristband and label printing solution created specifically for the Healthcare industry. Using Brother's TrustSense technology the solution ensures PDC's media (wristbands & labels) works seamlessly with the TD-2130NHC for stress free printing.

Versatile and transportable, it provides on-demand printing of the most in-demand media in Healthcare.

Key benefits:

Improves patient safety
- Helps protect patients, while providing peace of mind and efficiency to healthcare professionals. The TD-2130NHC prints crisp and accurately imaged wristbands and labels, meeting the NHS ISB 1077 standard).

Flexible and easy to use
- Media is easy to load, and Brother's TrustSense smart technology automatically detects the type of media and calibrates to print both wristbands and labels without any special set up.

Portable
- Bluetooth or Wireless connections plus Battery power and Touch Display Unit options give the ability to print wristbands and labels at almost any point of care location.

PDC media
- the TD-2130NHC only uses TrustSense media from PDC Healthcare - a trusted leader in positive patient identification for more than 55 years.

- Direct thermal technology
- 6"/sec (152mm/sec) print speed & 300 dpi resolution

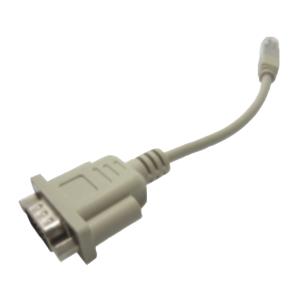

- Connect via USB, USB Host, Serial or LAN

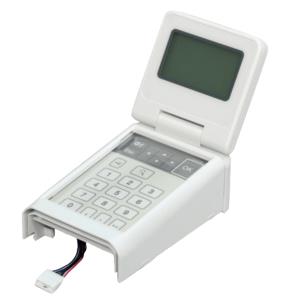

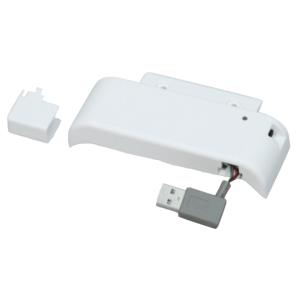

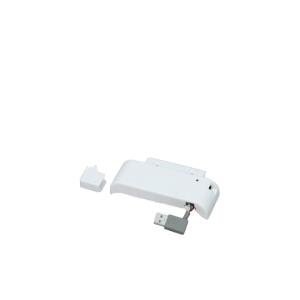

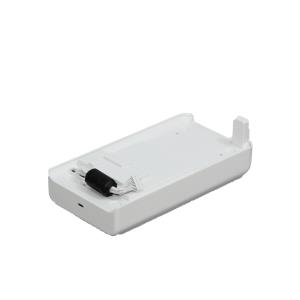

- Options include: Bluetooth or wireless connection, Touch Display Unit and Battery power
- P-touch Template (ZPL II emulation)
- Supports PDC TrustSense label and wristband media.

Printing

Maximum resolution

300 x 300 DPI

Print speed

152 mm/sec

Maximum print height

5.6 cm

Vertical printing

Y

Paper handling

Maximum label width

6.3 cm

Maximum label length

1 m

Ports & interfaces

Ethernet LAN

Y

USB port

Y

USB 2.0 ports quantity

1

Performance

Page description languages

BPL,ESC P

Flash memory

6 MB

Built-in barcodes

AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code-128 Codabar Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, ISBN-2, ISBN-5, ITF-25, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E

Number of fonts

8

Design

Product colour

Black, White

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Auto power off

Y

Rechargeable

Y

System requirements

Windows operating systems supported

Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64

Server operating systems supported

Windows Server 2003,Windows Server 2008,Windows Server 2008 R2,Windows Server 2012

Operational conditions

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

20 - 80%

Operating temperature (T-T)

5 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

110 mm

Depth

215 mm

Height

172 mm

Weight

1.34 kg

Packaging content

Cables included

USB

Bundled software

P-touch Editor 5 BR Admin Light

Quick start guide

Y

AC adapter included

Y

Other features

Label memory

99 label(s)
