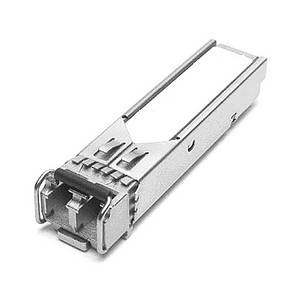

Sfp+ Transceiver Module 10GBase-lr Sfp+ Optic (lc), For Up To 10km 8pack

Introduction

Brocade optical transceiver modules connect Brocade switches, directors, backbones, HBAs, and CNAs to a broad spectrum of data center resources, providing Fibre Channel and Ethernet connectivity, and satisfying a wide range of speed and distance requirements.

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

10000 Mbit/s

Interface type

SFP+

Single-mode fiber (SMF) supported

Y

Fiber optic connector

LC

Fiber cable diameters supported (core/cladding)

9/125 µm

SFP transceiver standard

LR

Maximum transfer distance

10000 m

Cabling technology

10GBASE-LR

Auto MDI/MDI-X

Y

Features

Hot-Plug support

Y

Certification

MSA

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

10 - 85%

Weight & dimensions

Width

13.4 mm

Depth

56.5 mm

Height

8.5 mm
