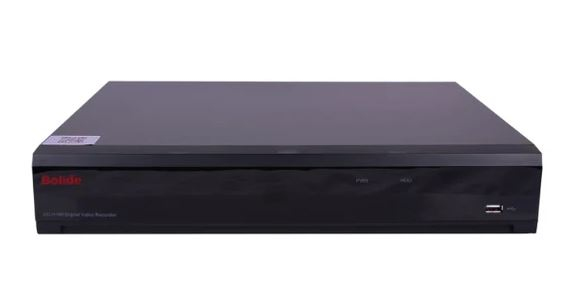

Hybrid Lite Dvr - 32-channel - H.264 5mpix - Control Over Coax

Performance

Maximum video resolution

1920 x 1080 pixels

Video compression formats

H.264, H.265

Video capturing speed (PAL)

25 fps

Video capturing speed (NTSC)

30 fps

Video motion detection

Yes

Playback resolutions supported

5MP (20fps) 3MP(18FPS) 1080P/720P/960H 5MP/4MP/3MP1080P/720P

Channels quantity

32 channels

Product colour

Black

Operating system installed

Embedded LINUX

Audio input channels

4.0 channels

Audio output channels

1.0 channels

Total bandwidth

128 Mbit/s

Input bandwidth

32 Mbit/s

Ports & interfaces

Video input channels

40 channels

Alarm input channels

8

Alarm output channels

1

BNC input ports

24

HDMI ports quantity

1

VGA (D-Sub) output ports

1

USB 2.0 ports quantity

2

RS-485 ports

1

Network

Ethernet LAN

Yes

Ethernet interface type

Fast Ethernet

Ethernet LAN (RJ-45) ports

1

Hard drive

Number of HDDs supported

2

Maximum HDD capacity

24 TB

Power

Power supply type

DC

DC voltage

12 V

DC current (max)

5 A

Weight & dimensions

Width

326 mm

Depth

378 mm

Height

66 mm

Operational conditions

Operating temperature (T-T)

-10 - 50 °C

Operating relative humidity (H-H)

10 - 90%
