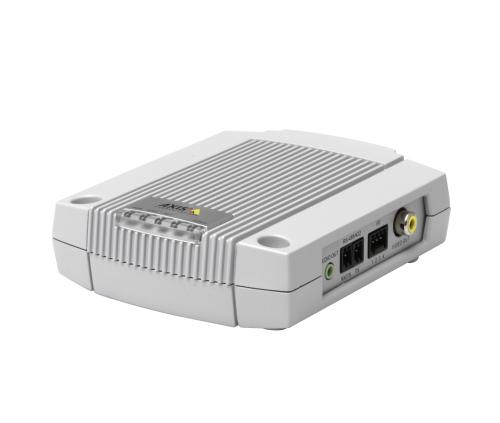

P7701 Video Decoder

Introduction

Simple monitoring solution for Axis network video products
The AXIS P7701 Video Decoder provides a simple monitoring solution by enabling analog or digital monitors/projectors to connect to and display live video from Axis network cameras and video encoders. In situations where only live video display is required- such as with a public view monitor at a store entrance, AXIS P7701 offers a more cost-effective solution than using a PC for connecting a monitor. AXIS P7701 can also complement a video management system by helping to offload the main server from decoding digital streams simply for display purposes.

Full frame rate video decoding of H.264, MPEG-4 and Motion JPEG
AXIS P7701 can decode full frame rate video streams in H.264 and MPEG-4 in all resolutions up to D1 (720x480 pixels in NTSC, 720x576 in PAL). Motion JPEG can be decoded in all resolutions up to 720p (1280x720). The video decoder can provide either digital or analog video output. Video from any number of cameras can be shown in sequence.

Alarm-triggered video and high-quality audio
When an alarm is triggered in a network camera or video encoder, AXIS P7701 can be configured to automatically display alarm-triggered video. AXIS P7701 also decodes mono audio. The video decoder can be powered either through Power over Ethernet or through an external power supply.

Features

Product colour

White

Weight & dimensions

Width

118 mm

Depth

99 mm

Height

33 mm

Weight

318 g
